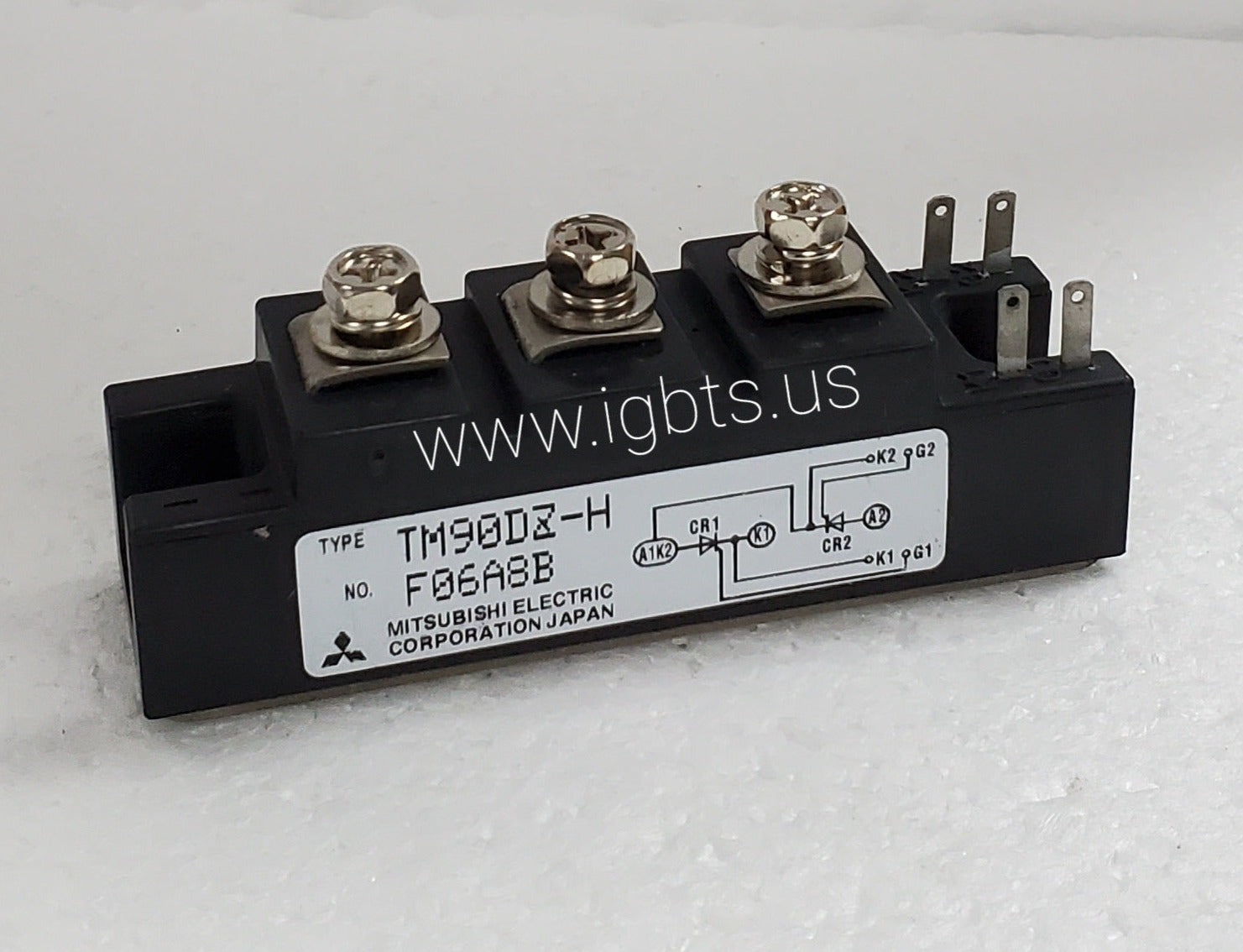

The Mitsubishi TM90DZ-H is a thyristor (SCR) module engineered for high-reliability power switching in industrial-grade equipment. As part of Mitsubishi's established DZ-H module platform, it is constructed for robust gate-controlled rectification and phase control applications where thermal cycling, high surge currents, and continuous duty demands place extreme stress on switching components. The module's isolated baseplate construction simplifies heatsink integration and supports safe mounting in densely packed power conversion assemblies. Engineers specifying this part can expect consistent triggering characteristics and low on-state voltage drop consistent across Mitsubishi's thyristor module line.

The TM90DZ-H is well-suited for AC motor soft starters, DC motor drives, industrial welding power supplies, UPS systems, and crane or hoist drive controllers. Its phase-control capability makes it a preferred choice in regulated DC bus applications and resistance heating systems where precise power modulation is essential. Utility and process industries rely on modules in this class for furnace control, electrochemical processing, and regenerative drive topologies. Wherever a robust, field-proven SCR module is required in medium-to-high power density equipment, the TM90DZ-H is a direct candidate.

Quick Reference: TM90DZ-H

Key Features of the TM90DZ-H:

• Thyristor (SCR) module configuration optimized for phase control and line-commutated rectifier circuits
• Isolated copper baseplate for direct heatsink mounting, reducing thermal resistance and simplifying assembly
• High surge current capability suitable for demanding industrial duty cycles and inrush-heavy loads
• Consistent gate trigger sensitivity with low holding and latching current thresholds for reliable firing control
• Compact DZ-H series footprint enabling drop-in replacement in existing Mitsubishi-based power drive platforms
• Manufactured to Mitsubishi's industrial-grade quality standards, ensuring lot-to-lot parameter consistency

With a factory lead time of 39 weeks for new production, procuring the TM90DZ-H through standard distribution channels presents a serious risk to maintenance schedules and project timelines. Unplanned downtime on a motor drive or power conversion system cannot wait nine months for a replacement module. Equipment obsolescence further compounds the challenge — as product lines mature, on-hand inventory becomes the only reliable source. Procurement teams supporting aging assets or managing MRO (maintenance, repair, and operations) stockrooms need a distributor with actual shelf inventory, not a lead-time promise. ATI maintains stock of hard-to-find thyristor modules precisely for these situations.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. The TM90DZ-H ships same-day on orders placed before 5PM EST. Volume pricing is available for MRO stockrooms and OEM builds. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm current inventory, request a quote, or discuss your broader power semiconductor sourcing needs.
