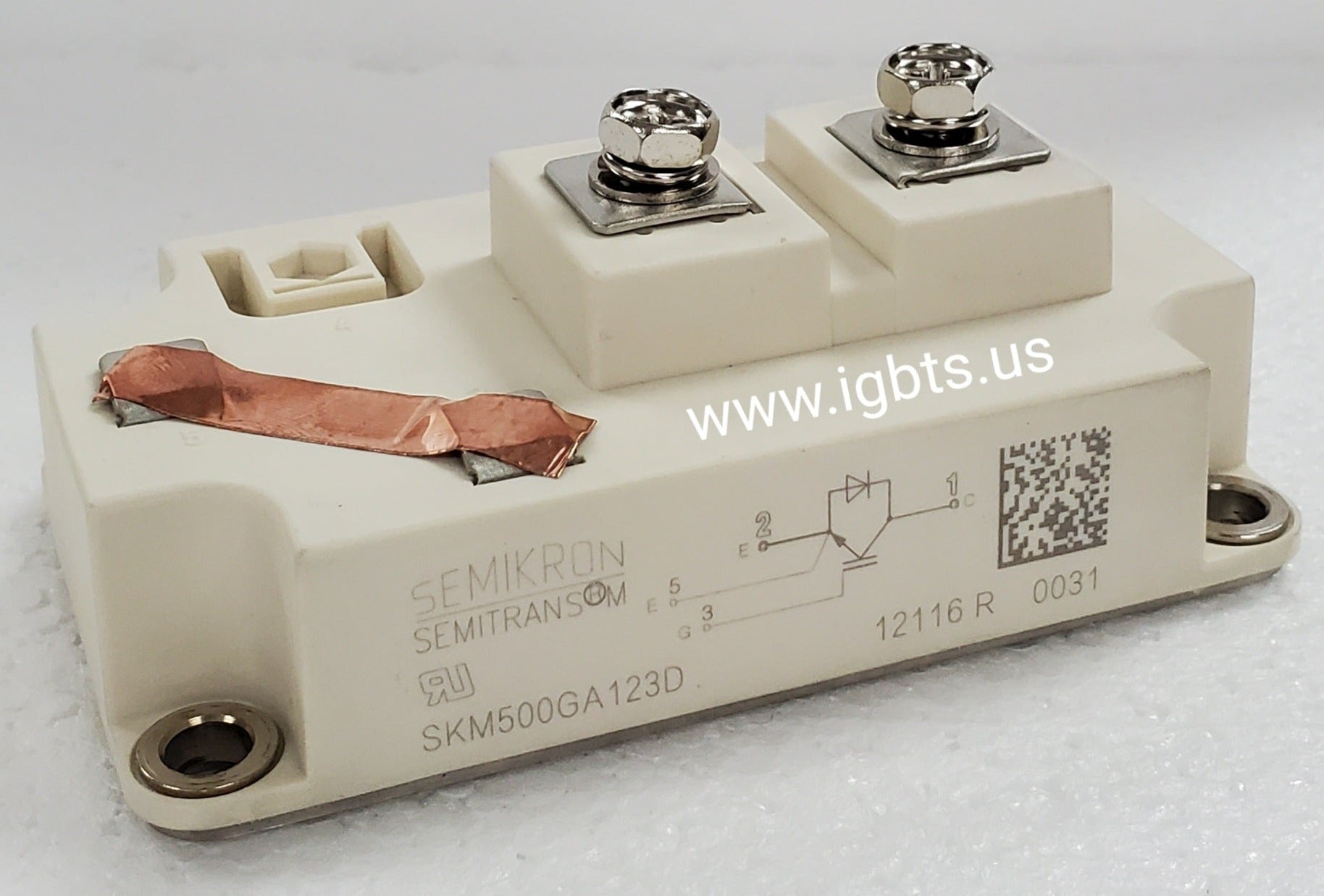

The SEMIKRON SKM500GA123D is a high-current, high-voltage IGBT module rated at 500A and 1200V, built on SEMIKRON's proven SKiM and SEMITRANS platform architecture for reliable performance in heavy-duty power conversion applications. Designed with low saturation voltage and optimized gate characteristics, this module delivers efficient switching across a wide load range. Its robust isolated baseplate construction supports demanding thermal cycling environments, making it a trusted choice for engineers specifying components in industrial inverters, drives, and energy infrastructure systems where reliability is non-negotiable.

The SKM500GA123D is widely deployed in AC motor drives for pumps, compressors, fans, and conveyor systems, as well as in UPS systems, renewable energy inverters, induction heating equipment, and rail traction converters. Its 1200V blocking voltage and 500A current handling make it particularly well-suited for medium-voltage bus architectures found in industrial automation and process control installations. OEMs and MRO teams sourcing replacements for aging drive systems or designing new high-power inverter stages will find the SKM500GA123D a reliable, specification-matched solution for demanding continuous-duty cycles.

Quick Reference: SKM500GA123D

Key Features of the SKM500GA123D:

• 1200V VCES blocking voltage with 500A rated continuous collector current for high-power inverter stages
• Low VCEsat characteristics reduce conduction losses and thermal stress under continuous switching loads
• Integrated anti-parallel freewheeling diode optimized for fast recovery to minimize switching losses in PWM applications
• Isolated copper baseplate construction for direct heatsink mounting, supporting efficient thermal management in high-duty-cycle environments
• Gate-emitter threshold voltage and transconductance characteristics optimized for compatibility with standard IGBT gate driver ICs
• Meets IEC and UL standards applicable to industrial power electronic equipment, supporting compliance-driven procurement requirements

With a factory lead time of 99 weeks on new production, the SKM500GA123D presents a significant sourcing challenge for maintenance teams facing unplanned equipment failures or engineers managing production schedules. SEMIKRON's longer-running high-power modules are frequently subject to extended lead times and periodic allocation constraints, making it critical to work with a distributor that actively stocks and tracks these parts. Waiting on factory orders is rarely an option when a drive system is offline and production is at a standstill. ATI Accurate Technology specializes in exactly this scenario — sourcing, stocking, and shipping hard-to-find and long-lead-time power semiconductors when standard channels fall short.

ATI Accurate Technology is based in Palmetto, Florida, and ships same-day on orders placed before 5PM EST. Whether you need a single replacement unit or volume quantities for a blanket order, our team is ready to assist. Call us at 239-734-7566, email sales@igbts.us, or visit igbts.us to check availability and request a quote. Volume pricing is available — ask our sales team about stocking agreements for critical long-lead-time parts.
