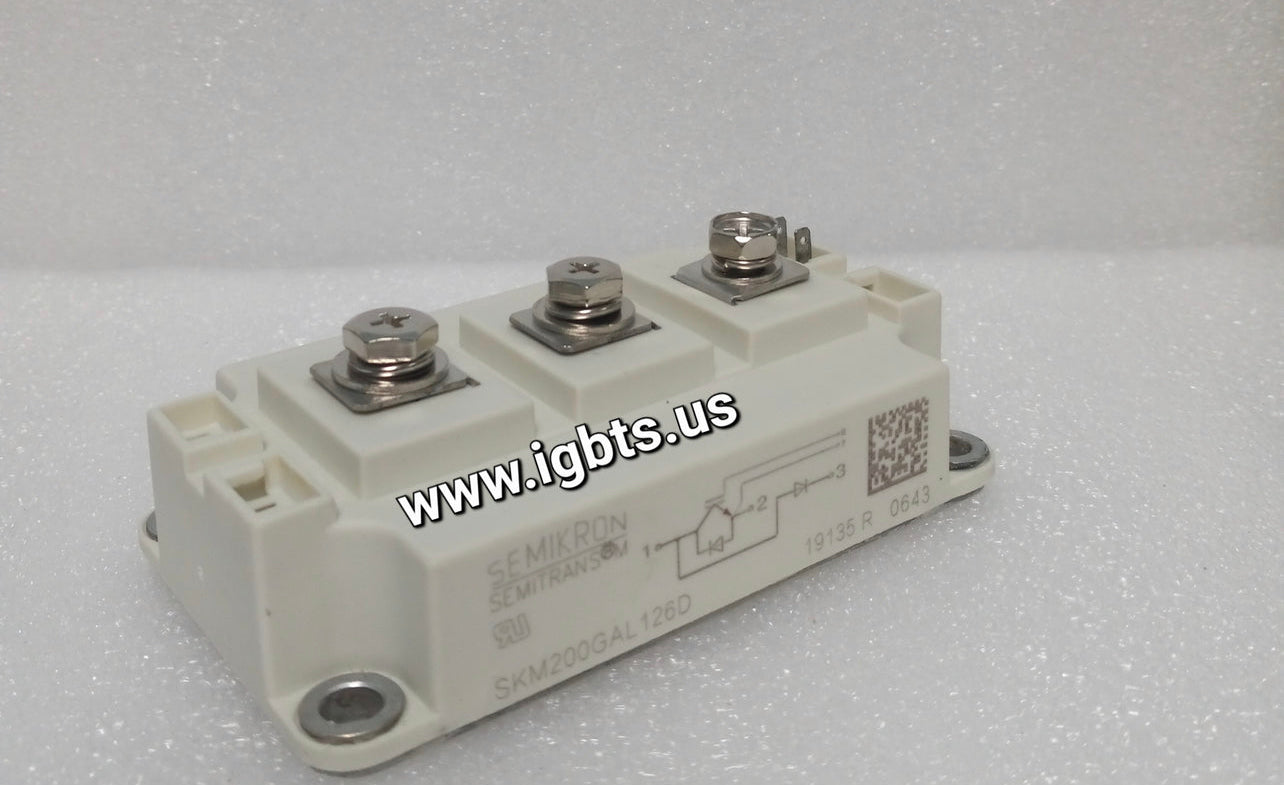

The SKM200GAL126D is a high-power IGBT module manufactured by SEMIKRON, rated for 200A continuous collector current and a 1200V blocking voltage. Designed for high-frequency switching in demanding power electronics environments, this module integrates IGBT and freewheeling diode technology in a single rugged package. It delivers low saturation voltage (V_CE(sat)) and fast, controlled switching characteristics, making it a reliable choice for engineers who need predictable performance in thermally and electrically stressed converter designs.

The SKM200GAL126D is well-suited for a broad range of industrial and commercial power conversion applications. Typical use cases include AC motor drives and variable frequency drives (VFDs), three-phase inverters, regenerative braking systems, induction heating equipment, UPS and energy storage systems, and solar or wind power inverters. Its 1200V voltage class provides adequate margin for 690V AC bus architectures, while the 200A current rating supports mid-to-large-scale drive and converter platforms where thermal efficiency and switching reliability are critical design requirements.

Quick Reference: SKM200GAL126D

Key Features of the SKM200GAL126D:

• 1200V V_CES blocking voltage — suitable for 690V AC three-phase inverter topologies with adequate overvoltage margin
• 200A rated collector current with high pulse current capability for robust performance in dynamic load conditions
• Low V_CE(sat) reduces steady-state conduction losses, improving overall converter efficiency at rated load
• Integrated fast-recovery freewheeling diodes minimize reverse recovery losses during high-frequency switching transitions
• Isolated baseplate design simplifies thermal management and allows multiple modules to share a common heatsink without additional isolation hardware
• Industry-standard SKiip/SEMITRANS package footprint supports drop-in replacement compatibility across multiple SEMIKRON platform generations

The SKM200GAL126D carries a factory lead time of approximately 27 weeks for new production orders, a reality that reflects broader supply constraints on high-current 1200V IGBT modules across the industry. For maintenance engineers managing unplanned downtime or procurement teams building safety stock ahead of scheduled outages, waiting on factory lead times is rarely an option. ATI Accurate Technology maintains active sourcing channels for long-lead-time and allocation-constrained SEMIKRON parts, helping customers secure verified new OEM inventory outside of standard factory queues.

ATI Accurate Technology is based in Palmetto, Florida, and stocks a broad inventory of SEMIKRON IGBT modules and power semiconductors. Orders placed before 5PM EST ship same day. Whether you need a single replacement module or volume pricing for a larger project, our team is ready to help. Call 239-734-7566 or email sales@igbts.us for real-time availability, lead time updates, and competitive quotes on the SKM200GAL126D and related SEMIKRON product lines.
