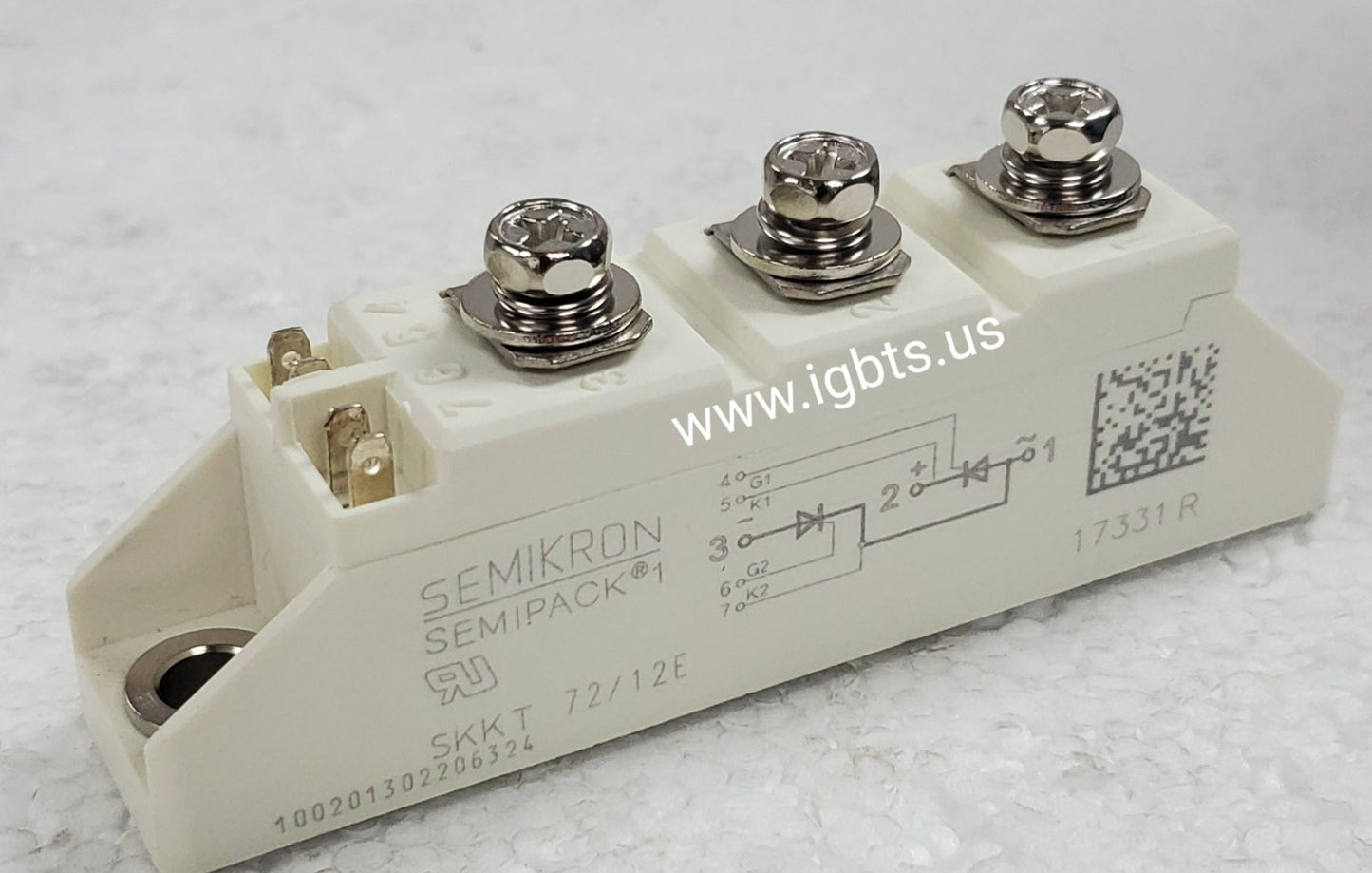

The SEMIKRON SKKT72/12E is a dual SCR (thyristor) module delivering 72A average on-state current and a 1200V repetitive peak off-state voltage (VDRM/VRRM). Built in SEMIKRON's industry-standard SKKT package, it integrates two thyristors in a common cathode or inverse parallel configuration suitable for controlled rectifier and AC power controller topologies. With a low thermal resistance and isolated copper baseplate, the SKKT72/12E is engineered for continuous-duty industrial environments where thermal management and switching reliability are non-negotiable requirements.

The SKKT72/12E is widely deployed in AC variable-speed drives, soft starters, resistance heating controllers, DC motor drive front ends, UPS systems, and industrial welding power supplies. Its robust blocking voltage rating and controlled turn-on characteristics make it a proven choice for three-phase bridge rectifiers and phase-angle firing circuits operating from 480V to 690V mains. The part is also found in crane and hoist drives, electrochemical processing equipment, and oil and gas field power conversion systems where long service intervals and rugged construction are mandatory.

Quick Reference: SKKT72/12E

Key Features of the SKKT72/12E:

• 72A average on-state current (IT(AV)) with high surge current capability for fault-tolerant designs
• 1200V VDRM/VRRM blocking voltage supporting 480V–690V three-phase mains applications
• Dual SCR configuration in a single isolated-baseplate SKKT package minimizes busbar complexity and assembly time
• Low thermal resistance junction-to-case (RthJC) enables high continuous power dissipation with standard heatsink mounting
• Gate trigger current and voltage parameters optimized for compatibility with standard SCR firing boards and pulse transformers
• Electrically isolated copper baseplate rated to 2500V AC for safe integration into grounded heatsink assemblies

The SKKT72/12E carries a factory lead time of approximately 43 weeks for new production from SEMIKRON, a reality that catches many maintenance and procurement teams off guard when a field failure occurs. Legacy drive systems, OEM equipment out of active production, and long-running process lines frequently depend on this exact module with no drop-in alternative available on short notice. ATI Accurate Technology actively tracks supply chain availability for hard-to-find SEMIKRON thyristor modules, maintaining sourcing relationships that give customers options beyond the standard factory queue. Contact ATI early to confirm current inventory position and avoid costly unplanned downtime.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. For pricing, availability, and volume order inquiries on the SKKT72/12E, call 239-734-7566 or email sales@igbts.us. Volume pricing is available for MRO stocking orders and OEM production builds.
