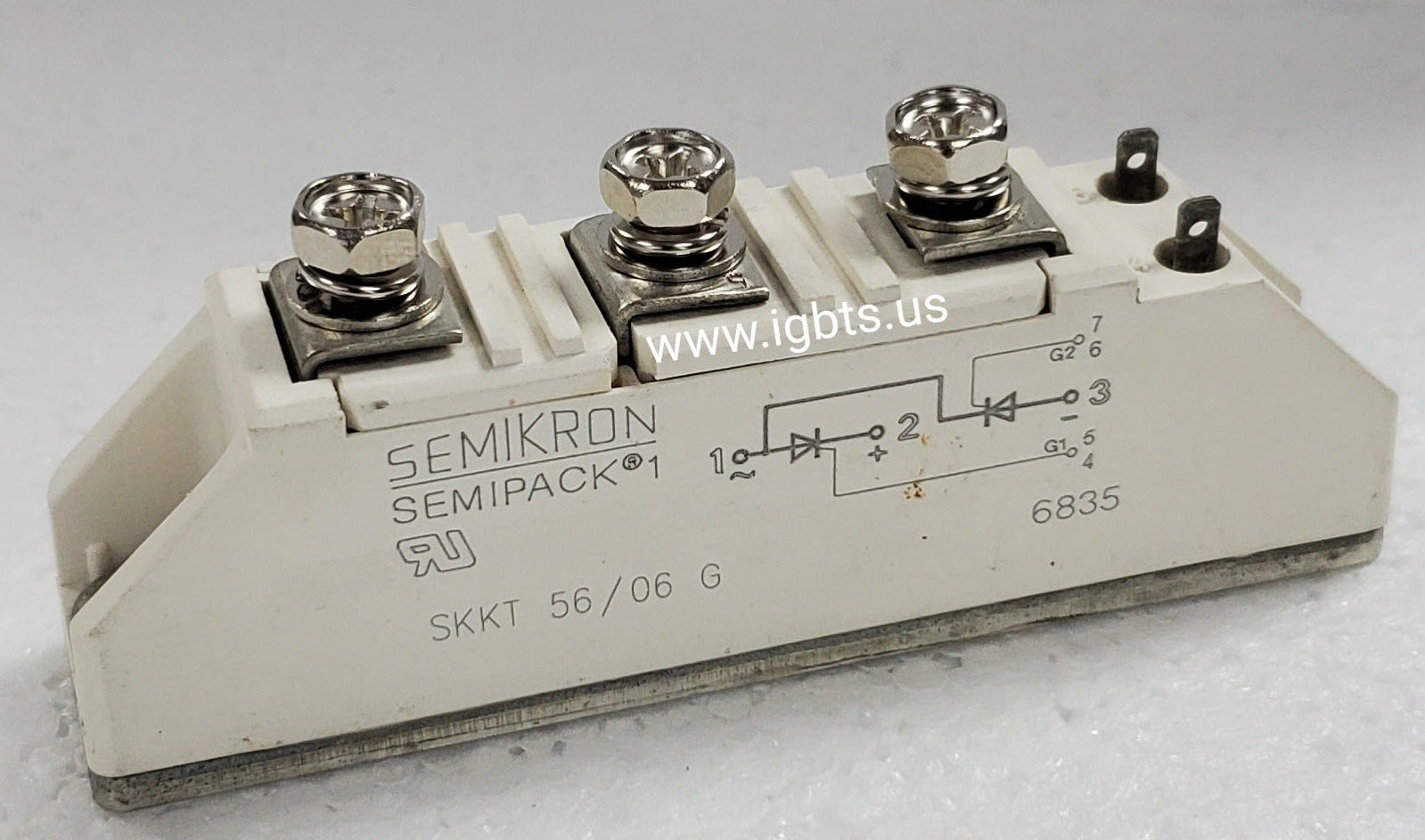

The SEMIKRON SKKT56/06G is a dual SCR (thyristor) power module configured in a common cathode arrangement, rated for 56A average on-state current (IT(AV)) and a 600V repetitive peak off-state voltage (VDRM/VRRM). Housed in SEMIKRON's industry-standard SEMIPAK package with an isolated copper base plate, this module offers low thermal resistance, reliable gate triggering characteristics, and straightforward integration into standard heatsink assemblies. It is engineered for demanding AC power switching and phase-control environments where thermal cycling and commutation reliability are critical.

The SKKT56/06G is widely deployed across industrial automation and power conversion equipment. Typical applications include AC motor soft-starters, resistance heating and temperature control systems, DC drive converters, welding equipment power stages, crane and hoist drive systems, and three-phase half-wave rectifier circuits. Its compact dual-SCR topology simplifies bus designs in mid-power drive assemblies and enables direct replacement in legacy SEMIKRON-based platforms where board-level compatibility and mounting footprint consistency are essential for retrofit and repair scenarios.

Quick Reference: SKKT56/06G

Key Features of the SKKT56/06G:

• Dual SCR common cathode configuration in SEMIPAK isolated base package for simplified heatsink mounting
• 56A average on-state current with low on-state voltage drop, reducing conduction losses in continuous phase-control duty
• 600V VDRM/VRRM blocking voltage with high dV/dt immunity for robust commutation in inductive load environments
• Low thermal resistance junction-to-case (RthJC) enabling efficient heat dissipation in compact drive enclosures
• Electrically isolated copper base plate rated for high-voltage isolation, compatible with standard SEMIKRON mounting torque and thermal interface specifications
• Gate trigger current and voltage characteristics optimized for compatibility with standard SCR firing boards and digital gate drive controllers

The SKKT56/06G carries a factory lead time of approximately 42 weeks for new production orders, placing it firmly in the long-lead-time category that strains maintenance schedules and production timelines. SEMIKRON thyristor modules in the SKKT series are deeply embedded in installed industrial equipment — many still operating in drives and heating systems manufactured 15 to 25 years ago. When a module fails, a 42-week factory wait is operationally unacceptable. ATI Accurate Technology actively sources these components through authorized supply channels to bridge that gap and keep your equipment running without extended downtime.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in power semiconductors including hard-to-find, long-lead-time, and obsolete IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day when stock is available. Call us at 239-734-7566 or email sales@igbts.us for real-time availability, datasheet support, and volume pricing on the SKKT56/06G and related SEMIKRON product lines.
