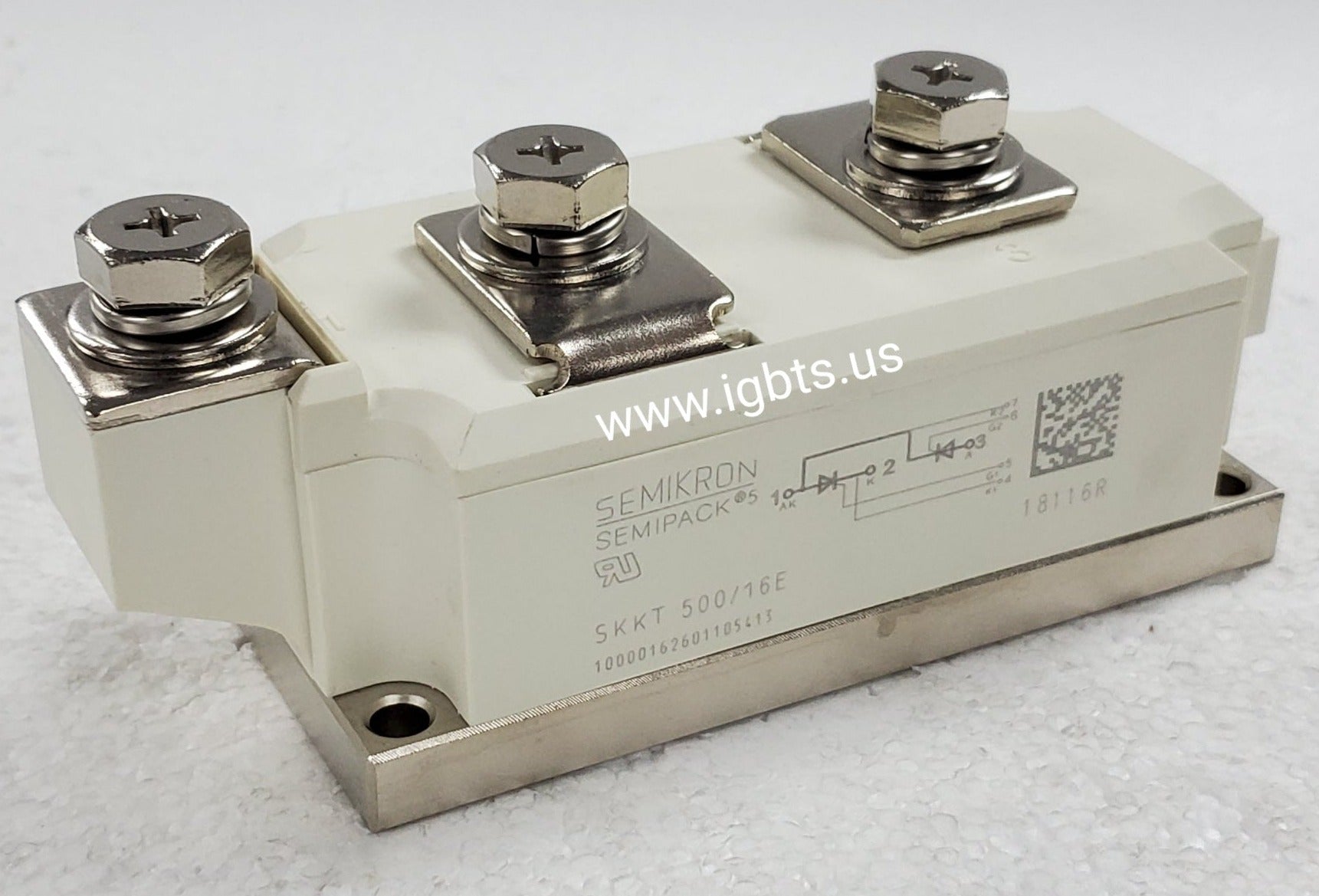

The SEMIKRON SKKT500/16E is a high-current dual thyristor (SCR) module rated for 500A average on-state current (IT(AV)) and a 1600V repetitive peak off-state voltage (VDRM/VRRM). Packaged in SEMIKRON's industry-standard SEMIPACK 3 platform, this module integrates two thyristors in a common-cathode or common-anode configuration suitable for three-phase bridge and anti-parallel circuit topologies. Its low thermal resistance, robust base plate construction, and reliable gate triggering characteristics make it a preferred choice for engineers designing or maintaining high-power industrial conversion equipment.

The SKKT500/16E is widely deployed in heavy industrial environments where controlled rectification and phase-angle power control are critical. Typical applications include AC variable-speed motor drives, regenerative DC motor controllers, industrial soft-starters, electrochemical process rectifiers, welding power supplies, UPS systems, and large-scale heating or furnace control equipment. Its 1600V voltage class provides adequate margin for 690V and 480V AC bus systems, while the 500A current rating satisfies the demands of high-horsepower drive platforms and continuous-duty industrial processes.

Quick Reference: SKKT500/16E

Key Features of the SKKT500/16E:

• 500A average on-state current (IT(AV)) with high surge current (ITSM) capability suitable for fault-tolerant converter designs
• 1600V VDRM/VRRM voltage class providing reliable blocking margin on 690V AC three-phase distribution systems
SEMIPACK 3 package with isolated copper base plate enabling direct heatsink mounting and simplified thermal stack assembly
• Low thermal resistance junction-to-case (Rthjc) for efficient heat dissipation in continuous-duty, high-power operation
• Dual thyristor topology supports common-cathode, common-anode, and anti-parallel configurations for full-wave and bridge rectifier circuits
• Gate triggering characteristics optimized for compatibility with standard SCR firing boards and phase-control gate drive units

The SKKT500/16E carries a factory lead time of approximately 39 weeks for new production orders, placing it firmly in the long-lead-time category that can critically disrupt maintenance schedules and capital equipment projects. Procurement teams relying on just-in-time sourcing should plan well ahead, or partner with a stocking distributor capable of locating existing inventory. Drive system failures, unplanned outages, or OEM end-of-life notices often require faster solutions than the factory timeline allows—making an experienced specialty distributor an essential resource for this component.

ATI Accurate Technology, located in Palmetto, Florida, specializes in sourcing exactly these types of hard-to-find, long-lead-time, and obsolete power semiconductors. We maintain an extensive supplier network to locate genuine OEM inventory when standard channels fall short. Orders confirmed before 5PM EST ship same day. For volume pricing, cross-reference assistance, or urgent sourcing inquiries on the SKKT500/16E, contact our team directly at 239-734-7566 or sales@igbts.us.
