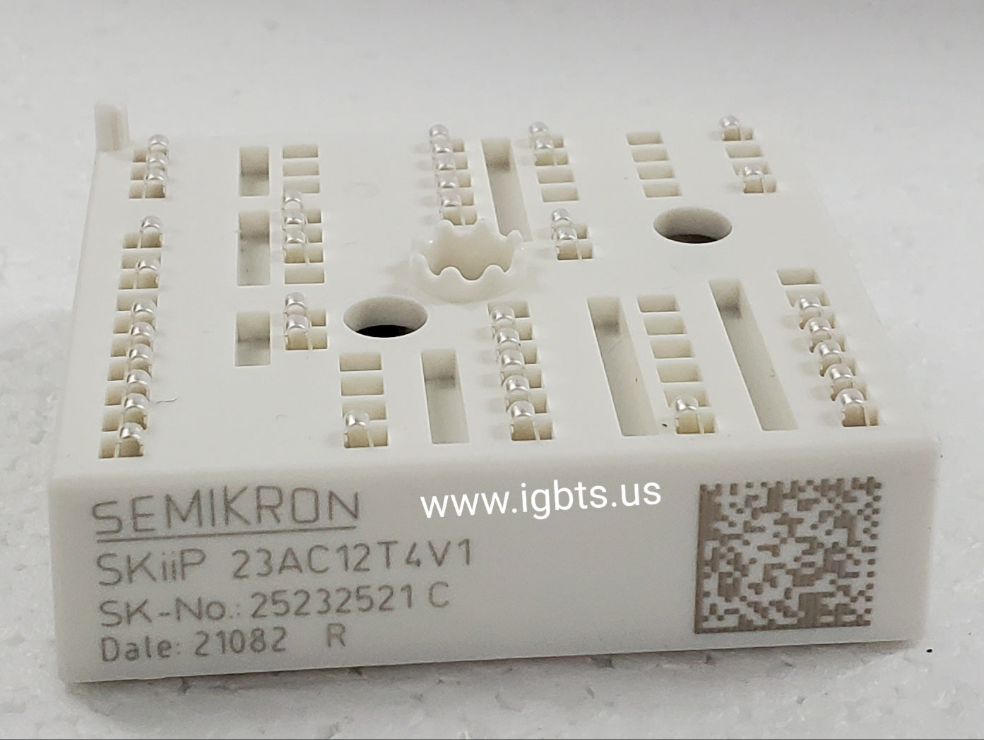

The SEMIKRON SKiiP23AC12T4V1 is an intelligent IGBT power module from SEMIKRON's SKiiP (SEMIKRON intelligent Power) platform, rated at 23A continuous collector current and 1200V blocking voltage. This module integrates the gate driver, current sensing, temperature monitoring, and fault protection circuitry directly within the package, reducing external component count and improving system reliability. The SKiiP architecture is engineered for high-cycle industrial environments where thermal management, short-circuit protection, and compact design are critical requirements for power conversion equipment.

The SKiiP23AC12T4V1 is well-suited for industrial variable frequency drives (VFDs), servo amplifiers, UPS systems, regenerative converters, and industrial inverter platforms. Its integrated protection functions—including overcurrent shutdown and temperature feedback—make it a preferred solution for OEM drive manufacturers and system integrators who require robust, repeatable performance in three-phase motor control and DC-AC inversion applications. The module's compact footprint supports high-density power stage designs in both new equipment builds and retrofit upgrade programs.

Quick Reference: SKiiP23AC12T4V1

Key Features of the SKiiP23AC12T4V1:

• 1200V collector-emitter voltage (VCES) with 23A rated continuous collector current suitable for medium-power industrial converter stages
• Integrated gate driver circuitry eliminates the need for external driver boards, reducing BOM complexity and PCB real estate
• On-board NTC temperature sensor provides real-time thermal feedback to the control system for derating and protection logic
• Integrated short-circuit and overcurrent protection with fault signal output for system-level interlocking
• SKiiP spring contact pressure interconnect technology eliminates bond wires for improved power cycling capability and long-term reliability
• Isolated baseplate construction with optimized thermal interface for direct heatsink mounting in industrial drive enclosures

The SKiiP23AC12T4V1 carries a factory lead time exceeding 99 weeks for new production, placing it firmly in the long-lead and supply-constrained category. For maintenance engineers managing aging VFD platforms or procurement teams supporting production lines dependent on SEMIKRON SKiiP modules, waiting nearly two years for factory delivery is not operationally viable. ATI Accurate Technology actively sources hard-to-find and long-lead SEMIKRON modules through authorized and vetted supply channels, helping customers avoid costly downtime and production disruptions. Reach out early—lead times on constrained parts can shift rapidly.

ATI Accurate Technology is based in Palmetto, Florida, and specializes in IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. For pricing, availability, and volume discounts on the SKiiP23AC12T4V1, call 239-734-7566 or email sales@igbts.us. Volume pricing is available for MRO stockrooms, OEM production builds, and stocking orders.
