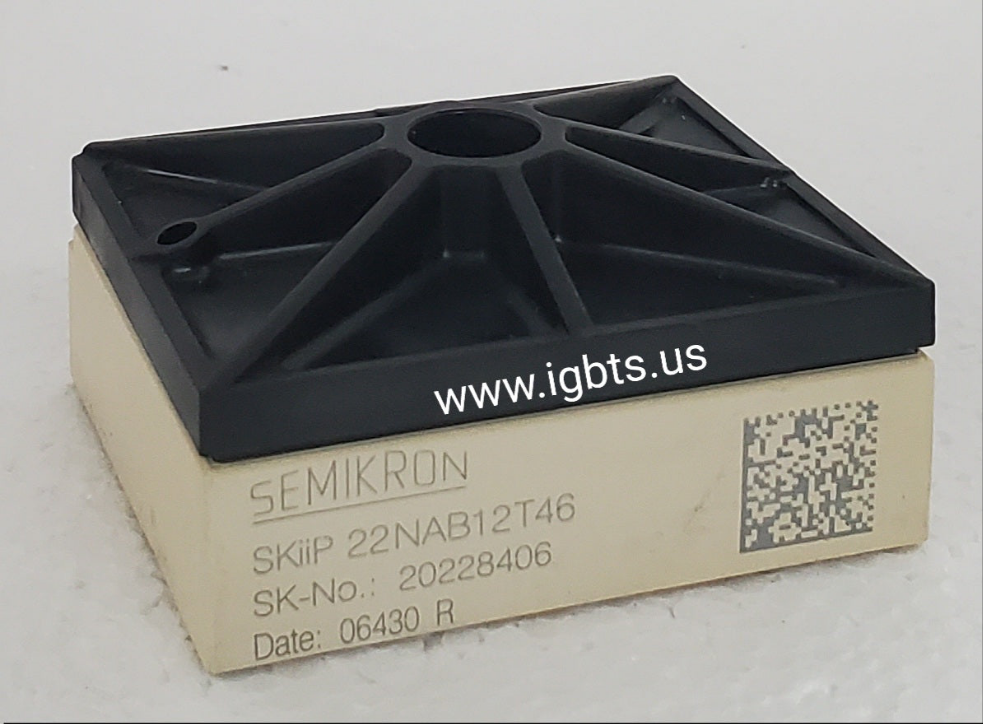

The Semikron SKIIP22NAB12T46 is a SKiiP (Semikron Integrated Intelligent Power) IGBT module that integrates the power semiconductors, gate driver, and protection functions into a single compact package. Designed for 1200V-class applications, the SKiiP platform reduces system complexity by eliminating discrete gate driver boards and simplifying thermal management through Semikron's direct pressure contact technology. This module is engineered for high switching frequency operation with built-in short-circuit protection, overtemperature sensing, and current monitoring—making it a preferred solution for engineers prioritizing reliability and board-space efficiency in demanding power conversion designs.

The SKIIP22NAB12T46 is well suited for industrial AC motor drives, regenerative inverters, UPS systems, and industrial power supplies where high power density and proven field reliability are critical. Its integrated intelligence makes it a strong fit for crane and hoist drives, pump and fan control, CNC spindle drives, and renewable energy converters. OEMs and end-users running Semikron-based drive platforms frequently rely on this specific module for both new builds and maintenance replacement of fielded equipment across heavy industrial and process automation environments.

Quick Reference: SKIIP22NAB12T46

Key Features of the SKIIP22NAB12T46:

• Integrated gate driver with isolated power supply eliminates external driver board requirements
• 1200V blocking voltage with low V_CE(sat) IGBTs optimized for switching losses at elevated frequencies
• Built-in short-circuit protection, overtemperature shutdown, and DC bus undervoltage lockout for system-level reliability
• Integrated current measurement via internal shunt or current sensor for closed-loop drive feedback
• Direct pressure contact (spring contact) interconnect technology reduces thermal resistance and eliminates solder fatigue failure modes
• Compact SKiiP housing reduces PCB real estate and overall drive system volume compared to discrete IGBT plus separate gate driver configurations

The SKIIP22NAB12T46 carries a factory lead time of approximately 43 weeks for new production from Semikron. For maintenance teams facing unplanned downtime or procurement teams managing capital projects, that timeline is operationally unacceptable. ATI Accurate Technology actively sources long lead time and hard-to-find Semikron IGBT modules through our established distributor network. Whether you need a single replacement module to return a drive to service or are building safety stock for a multi-site fleet of equipment, ATI has the sourcing expertise and supplier relationships to find solutions that new-production lead times alone cannot provide.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders confirmed before 5PM EST. We stock and source IGBTs, thyristors, diodes, and rectifier modules from leading manufacturers including Semikron. Call us at 239-734-7566 or email sales@igbts.us to check current availability on the SKIIP22NAB12T46. Volume pricing is available—let our team build a quote that works for your project or stocking program.
