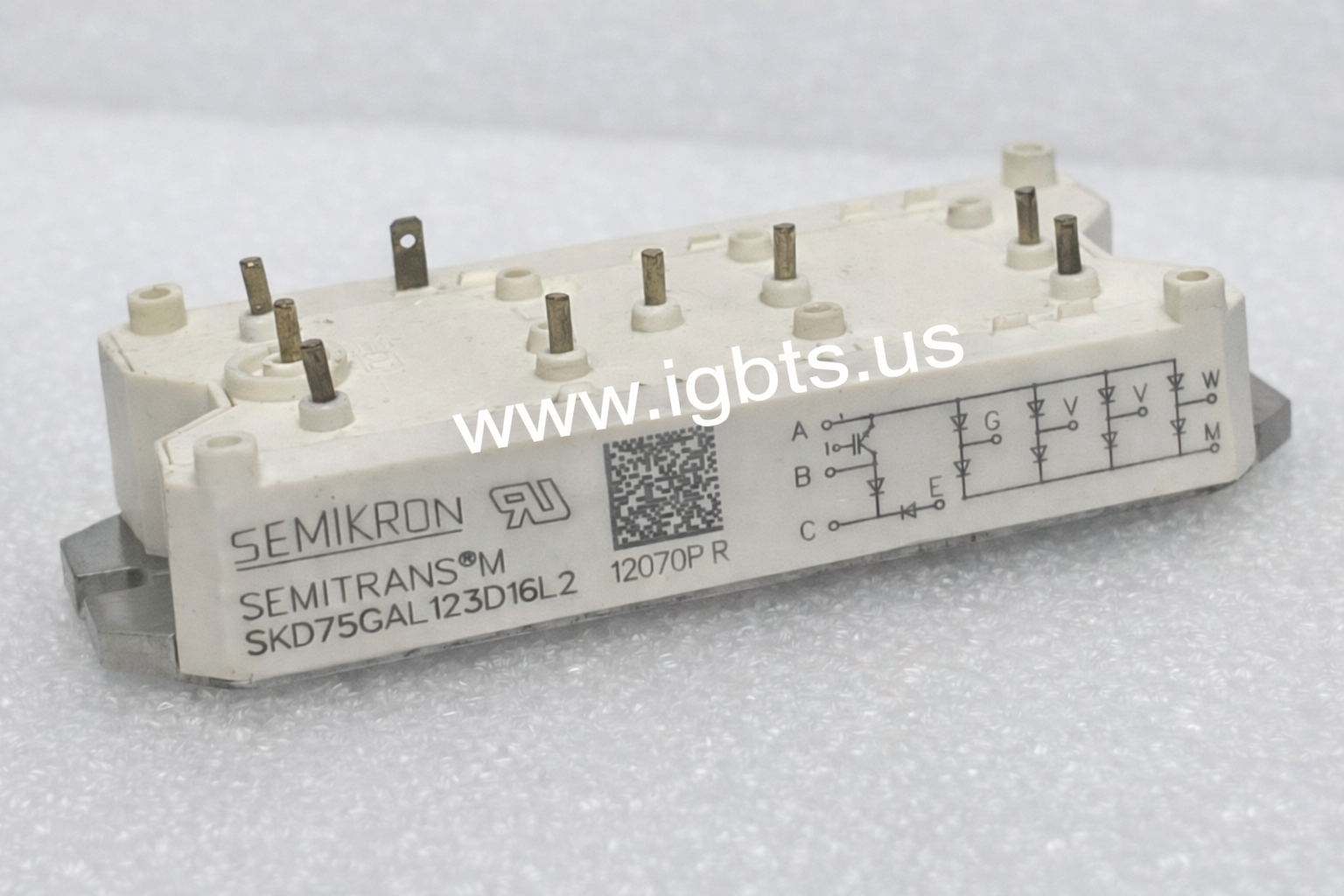

The SEMIKRON SKD75GAL123D16L2 is a three-phase diode bridge rectifier module engineered for demanding industrial power conversion environments. Built on SEMIKRON's proven SKD platform, this module delivers efficient and reliable AC-to-DC rectification with a robust isolated base construction suitable for heatsink mounting. Its design emphasizes low forward voltage drop, high surge current capability, and long operational life, making it a dependable choice for engineers specifying front-end rectification stages in high-power industrial systems where thermal management and electrical performance are critical priorities.

Industrial applications for the SKD75GAL123D16L2 include variable frequency drives (VFDs), servo drive front-ends, uninterruptible power supplies (UPS), DC bus charging circuits, welding equipment, and soft-starter assemblies. The module's three-phase bridge topology makes it ideal for converting three-phase AC mains into a smooth DC bus voltage with minimal ripple. It is widely deployed in machine tool controls, crane and hoist systems, HVAC compressor drives, and pumping stations where continuous-duty rectification under heavy load cycling is a standard operating condition.

Quick Reference: SKD75GAL123D16L2

Key Features of the SKD75GAL123D16L2:

• Three-phase full-wave bridge rectifier configuration with six diode elements in a single compact module package
• 1200 V repetitive peak reverse voltage (VRRM) for robust margin in 480 V and 690 V three-phase input applications
• 75 A average output current (IFAV) rating supporting continuous-duty industrial rectification under sustained load
• Isolated copper base construction for direct heatsink mounting with standard M5 screw terminals for secure bus connections
• Low thermal resistance junction-to-case (RthJC) enabling efficient heat dissipation in high-ambient-temperature enclosures
• High non-repetitive surge current (IFSM) capability to withstand inrush and fault conditions without degradation

The SKD75GAL123D16L2 carries a factory lead time of approximately 28 weeks for new production orders, a reality that has become common across the SEMIKRON power module portfolio due to sustained global demand and extended semiconductor fabrication cycles. For maintenance engineers facing unplanned equipment downtime or procurement professionals managing MRO inventories, waiting seven months for a replacement is not an acceptable option. ATI Accurate Technology actively monitors distributor networks and secondary market channels to locate in-stock inventory of long-lead-time SEMIKRON modules, helping customers avoid costly production delays. Reach out early—availability on these parts can change rapidly.

ATI Accurate Technology is headquartered in Palmetto, Florida, and has built its reputation on sourcing hard-to-find, obsolete, and long-lead-time power semiconductors for industrial customers across North America. We offer same-day shipping on orders placed before 5 PM EST, new OEM product condition, and volume pricing for fleet maintenance and project-scale procurement. Call us at 239-734-7566 or email sales@igbts.us to check current stock on the SKD75GAL123D16L2 and request a quote.
