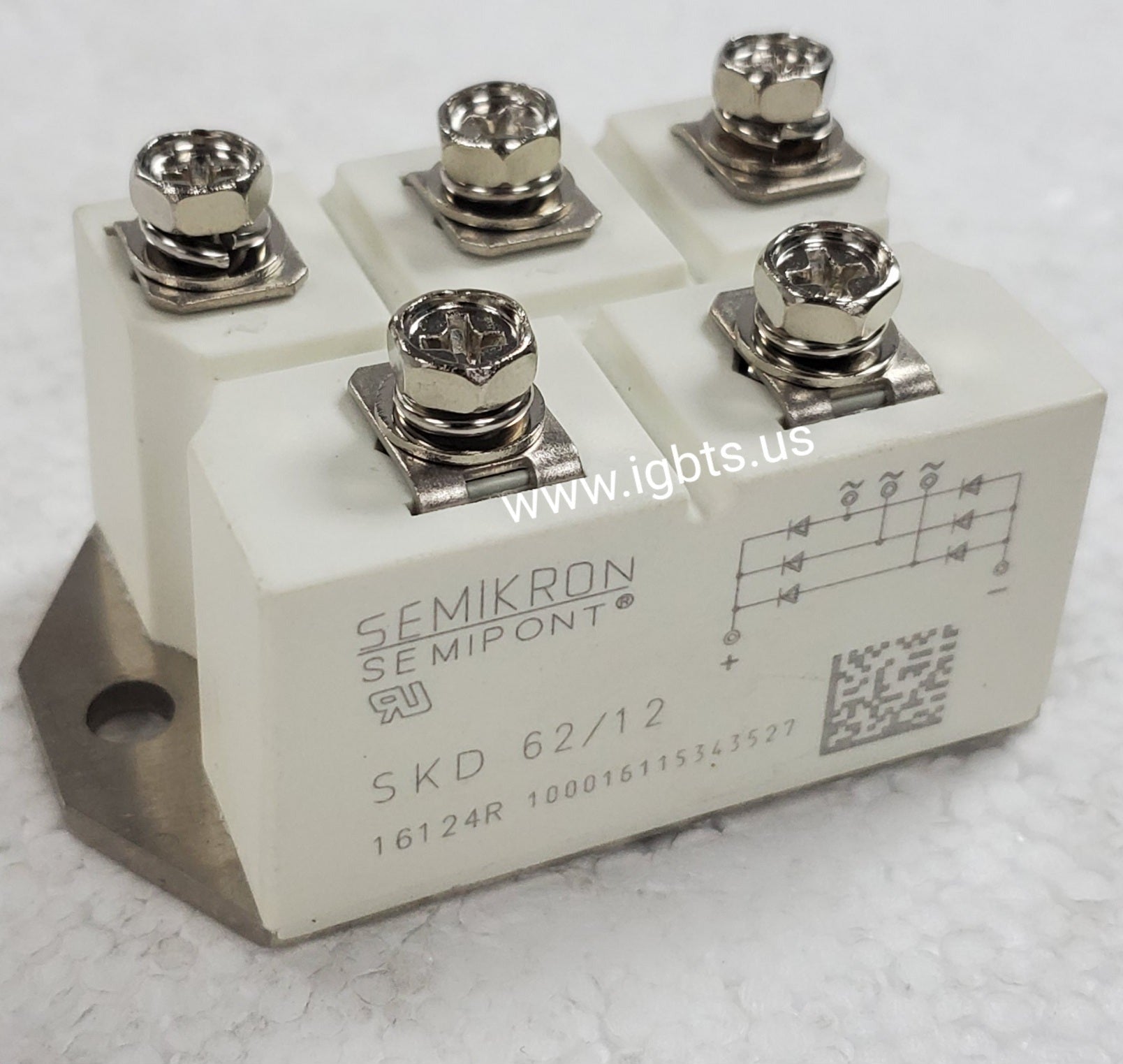

The SEMIKRON SKD62/12 is a three-phase diode bridge rectifier module engineered for industrial-grade AC-to-DC power conversion. Built on SEMIKRON's proven SKD platform, this module integrates a full three-phase bridge configuration into a compact, isolated baseplate package suited for demanding power electronics environments. With a 1200V voltage rating and 62A current capacity, the SKD62/12 is designed to deliver consistent rectification performance in high-cycle, thermally stressed applications where reliability and efficiency are non-negotiable requirements.

The SKD62/12 sees widespread deployment across industrial variable-speed drives, servo amplifiers, UPS systems, welding equipment, DC bus power supplies, and regenerative braking circuits. Its robust construction makes it a preferred front-end rectifier in machine tool controls, crane drives, and pump/fan motor controllers where three-phase input rectification must remain stable across wide load and temperature ranges. OEM system integrators and MRO procurement teams across the manufacturing, energy, and material handling sectors regularly specify this module for both new builds and field replacements.

Quick Reference: SKD62/12

Key Features of the SKD62/12:

• Three-phase full-wave bridge rectifier topology in a single integrated module package
• 1200V repetitive peak reverse voltage (VRRM) for margin in high-line and transient-prone industrial environments
• 62A average forward current (IFAV) rating supporting substantial continuous load demands
• Isolated copper baseplate for direct heatsink mounting, enabling efficient thermal management in enclosed drive assemblies
• Low forward voltage drop across bridge diodes minimizes conduction losses and reduces heatsink thermal requirements
• Compatible with standard SKD footprint heatsinks and mounting hardware, simplifying drop-in replacement in existing drive platforms

The SKD62/12 carries a factory lead time of approximately 41 weeks for new production runs, placing it firmly in the long-lead-time category that can stall drive repairs and new equipment builds alike. Procurement teams managing MRO inventory or navigating supply chain disruptions on SEMIKRON product lines understand the risk of single-source dependency on factory direct orders. ATI Accurate Technology actively tracks availability across authorized distribution channels and maintains sourcing relationships specifically for modules like the SKD62/12 that are difficult to obtain on standard delivery timelines. Engaging ATI early in your procurement cycle is the most effective way to protect project schedules.

ATI Accurate Technology is headquartered in Palmetto, Florida and ships same-day on orders placed before 5PM EST. We specialize in IGBTs, diodes, thyristors, and rectifier modules—including long-lead-time and obsolete SEMIKRON parts. Whether you need a single replacement module or volume pricing for a production run, our team is ready to help. Call us at 239-734-7566 or email sales@igbts.us for immediate assistance and competitive quotes.
