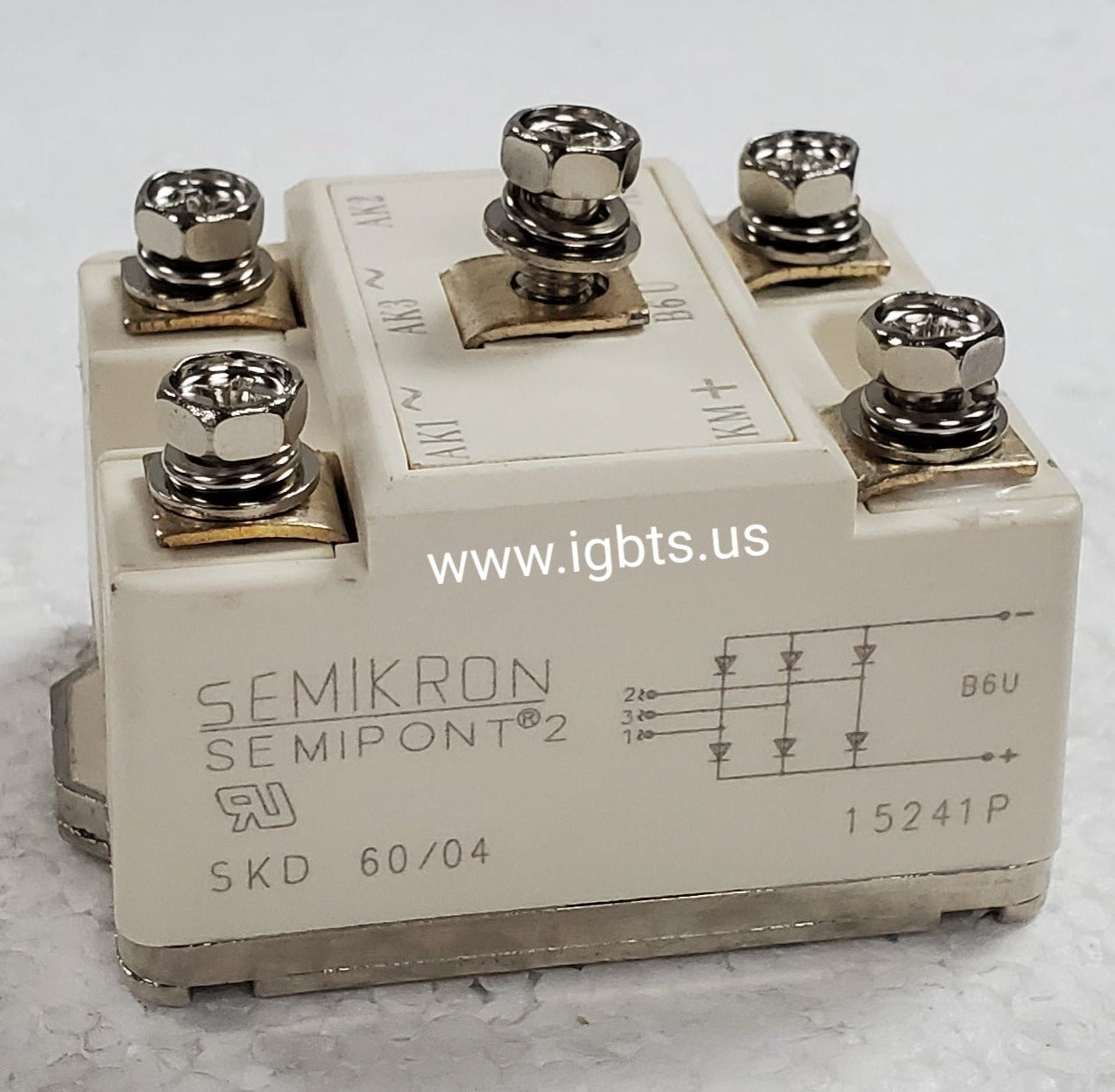

The SEMIKRON SKD60/04 is a three-phase diode bridge rectifier module configured for full-wave AC-to-DC conversion, rated at 60A average output current (I_Fav) and a 400V repetitive peak reverse voltage (V_RRM). Housed in SEMIKRON's industry-standard SKD package, the module integrates six diodes in a B6 bridge topology with a common isolated baseplate for heatsink mounting. It is engineered for continuous-duty rectification with low thermal resistance and robust surge current capability, making it a dependable solution in demanding industrial power conversion systems.

The SKD60/04 sees widespread deployment across industrial drives, servo amplifiers, UPS systems, welding equipment, and DC bus power supplies where a reliable front-end rectifier stage is essential. Its compact footprint and standardized SKD mounting pattern simplify drop-in replacement and board-level integration in both OEM designs and field-retrofit applications. The module is equally at home in variable frequency drives (VFDs), battery chargers, and controlled power supplies where consistent rectified DC output under variable load conditions is critical to system performance and uptime.

Quick Reference: SKD60/04

Key Features of the SKD60/04:

• B6 three-phase full-wave bridge topology with six integrated rectifier diodes in a single module
• 60A average forward output current (I_Fav) with high non-repetitive surge current (I_FSM) capability for robust transient handling
• 400V V_RRM rating suitable for 230/400V three-phase AC line inputs with standard derating margins
• Isolated copper baseplate for direct heatsink mounting, minimizing thermal resistance (R_th(c-s)) and simplifying thermal management
• Standardized SKD package footprint ensures mechanical and electrical interchangeability with compatible SEMIKRON and cross-reference modules
• Low forward voltage drop across diode junctions reduces conduction losses and improves overall rectifier stage efficiency

The SKD60/04 carries a factory lead time of approximately 36 weeks for new production, placing it firmly in the long-lead-time category that creates significant risk for MRO, repair depot, and production line operations. Procurement teams relying solely on the manufacturer's pipeline can face costly equipment downtime. Sourcing through a specialized power semiconductor distributor with access to franchised stock, tested pull inventory, and cross-reference expertise is the most effective way to close that gap and keep critical systems operational on schedule.

ATI Accurate Technology is based in Palmetto, Florida and stocks hard-to-find, long-lead-time, and obsolete power semiconductors including SEMIKRON diode bridge modules. Orders placed before 5PM EST ship same day. Our team provides volume pricing, application cross-reference support, and fast response for both spot buys and blanket orders. Call us at 239-734-7566 or email sales@igbts.us to check availability and get a quote on the SKD60/04 today.
