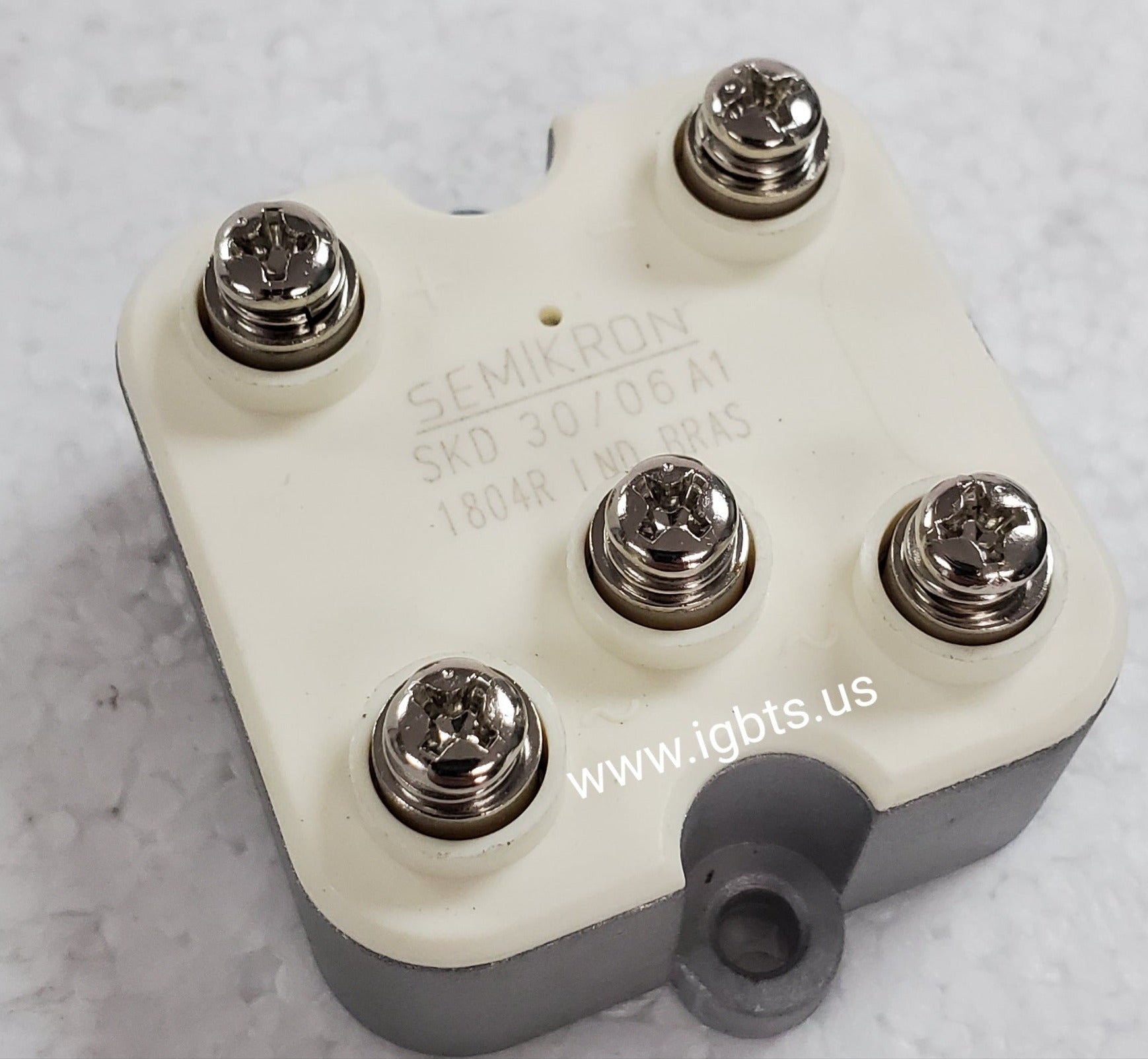

The SEMIKRON SKD30/06A1 is a three-phase diode bridge rectifier module offering 30A rated output current and a 600V voltage classification. Built in SEMIKRON's proven SKD package, this module integrates six rectifier diodes in a full-wave bridge configuration, delivering smooth DC output from three-phase AC supply lines. It is engineered for continuous industrial duty, featuring an isolated baseplate for direct heatsink mounting, low forward voltage drop characteristics, and robust thermal performance — making it a dependable front-end rectifier for demanding power conversion applications in harsh environments.

The SKD30/06A1 sees widespread deployment across industrial and commercial power electronics platforms. Typical applications include AC variable-speed drives and soft-starters, DC motor control systems, uninterruptible power supplies (UPS), welding equipment power stages, industrial power supply front-ends, and elevator drive systems. Its compact, standardized footprint simplifies board-level integration and heatsink design, while the isolated copper baseplate enables parallel mounting configurations when higher current capacity is required. Engineers specifying rectifier front-ends for 3-phase 400V or 480V mains systems will find the SKD30/06A1 a practical and well-characterized solution.

Quick Reference: SKD30/06A1

Key Features of the SKD30/06A1:

• Three-phase full-wave bridge rectifier topology — six diodes integrated in a single compact module
• 30A continuous output current rating with 600V blocking voltage class suitable for 3-phase 400V/480V mains
• Electrically isolated copper baseplate enables direct mounting to standard heatsinks without additional insulation pads
• Low forward voltage drop across rectifier elements reduces conduction losses and improves system efficiency
• Standardized SKD package footprint ensures form-fit-function compatibility with existing PCB and heatsink designs
• Designed for continuous industrial duty with high surge current capability to handle line transients and startup inrush events

The SKD30/06A1 carries a 26-week factory lead time from SEMIKRON, which presents real procurement risk for maintenance teams managing unplanned equipment failures or for OEMs building production schedules around tight timelines. Long lead times on rectifier modules like this one can halt production lines or delay critical repairs when buffer stock is unavailable. ATI Accurate Technology actively stocks and sources hard-to-find, long-lead-time, and obsolete SEMIKRON power modules, providing procurement teams with an alternative path to the components they need — without waiting six months for factory fulfillment.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders placed before 5PM EST. Whether you need a single replacement module or volume production quantities, our team is ready to assist with competitive pricing and fast turnaround. Call us at 239-734-7566 or email sales@igbts.us for real-time availability, volume pricing, and lead-time options on the SKD30/06A1 and the full SEMIKRON product line.
