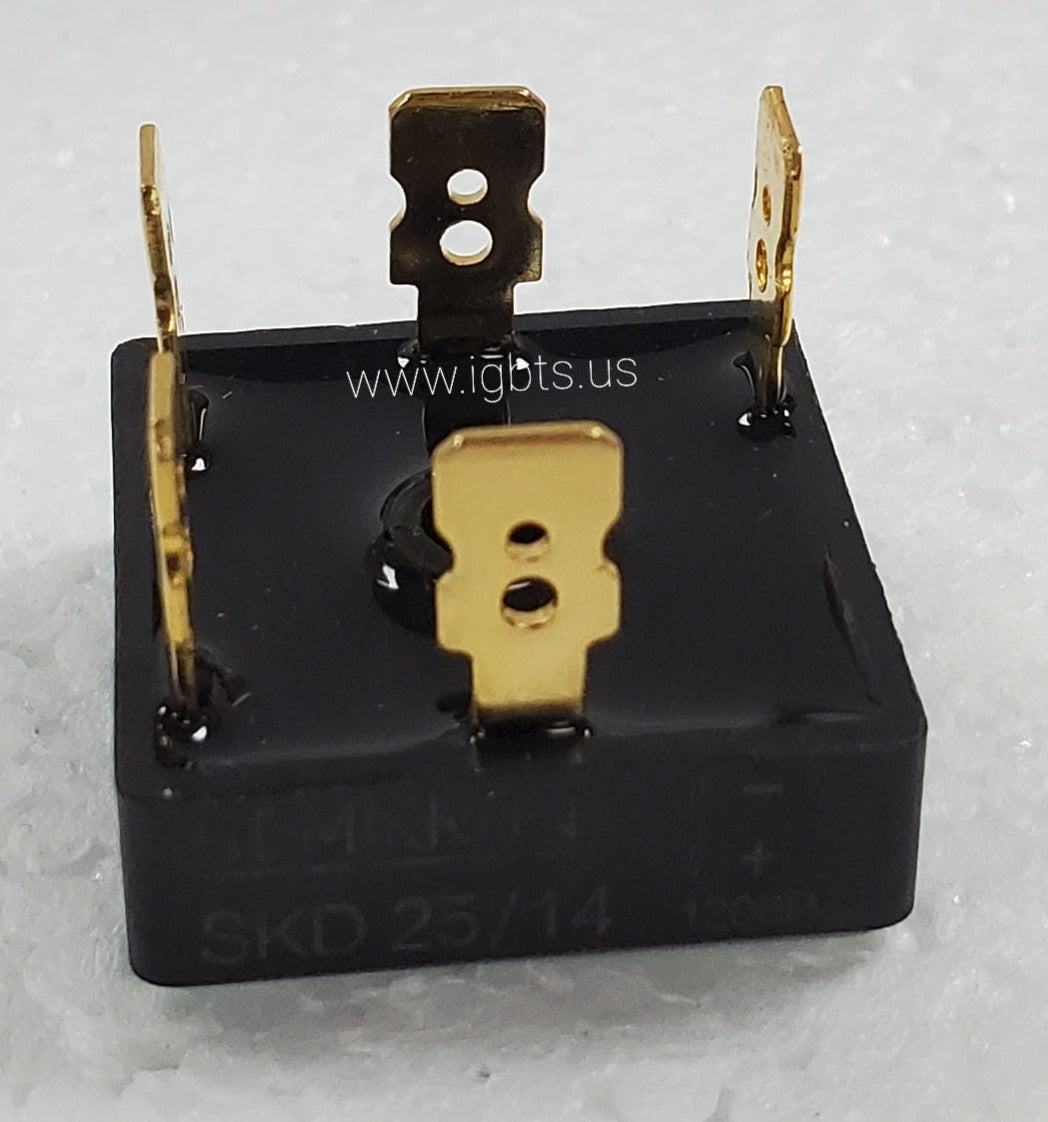

The SEMIKRON SKD25/14 is a three-phase diode bridge rectifier module engineered for robust AC-to-DC conversion in demanding industrial environments. Rated at 25A average output current and 1400V repetitive peak reverse voltage, this module integrates six diodes in a standard three-phase bridge configuration within SEMIKRON's compact SKD housing. The high voltage rating provides a substantial safety margin when rectifying 690V AC mains, while the isolated baseplate simplifies thermal management and heatsink mounting. It is a proven solution where reliability and voltage headroom are both critical design requirements.

The SKD25/14 is widely deployed in variable-speed AC and DC motor drives, industrial servo systems, UPS front-end rectifiers, welding equipment, and soft-starter power stages. Its robust voltage rating makes it particularly well suited for 480V and 690V three-phase input systems common in heavy manufacturing, oil and gas, marine, and material handling applications. System designers and OEM repair technicians frequently specify this module as a direct replacement in legacy drive platforms where the combination of 25A current capacity and 1400V blocking voltage is a fixed constraint.

Quick Reference: SKD25/14

Key Features of the SKD25/14:

• Three-phase full-wave bridge rectifier topology with six integrated diodes in a single compact module
• 1400V V_RRM rating delivers significant voltage margin over 480V and 690V three-phase mains inputs
• 25A average output current (I_DAV) suitable for low-to-mid power drive front-end and power supply rectification stages
• Electrically isolated copper baseplate enables direct heatsink mounting without additional isolation hardware, simplifying thermal design
• Standard SKD footprint ensures form-fit-function compatibility with existing SEMIKRON SKD-series installations and PCB layouts
• New OEM production from SEMIKRON ensures full datasheet compliance, traceability, and long-term reliability in critical uptime applications

The SKD25/14 carries a factory lead time of approximately 40 weeks for new production, placing it firmly in the long-lead-time and hard-to-source category that challenges maintenance and procurement teams worldwide. Obsolete or allocation-constrained SEMIKRON modules like this one regularly cause costly production downtime when legacy drive systems fail unexpectedly. ATI specializes in locating exactly these components — maintaining supplier relationships and inventory pipelines that generic distributors do not. Whether you need a single emergency replacement or a forward stocking position to protect critical assets, ATI can help you evaluate your options and timeline accurately.
