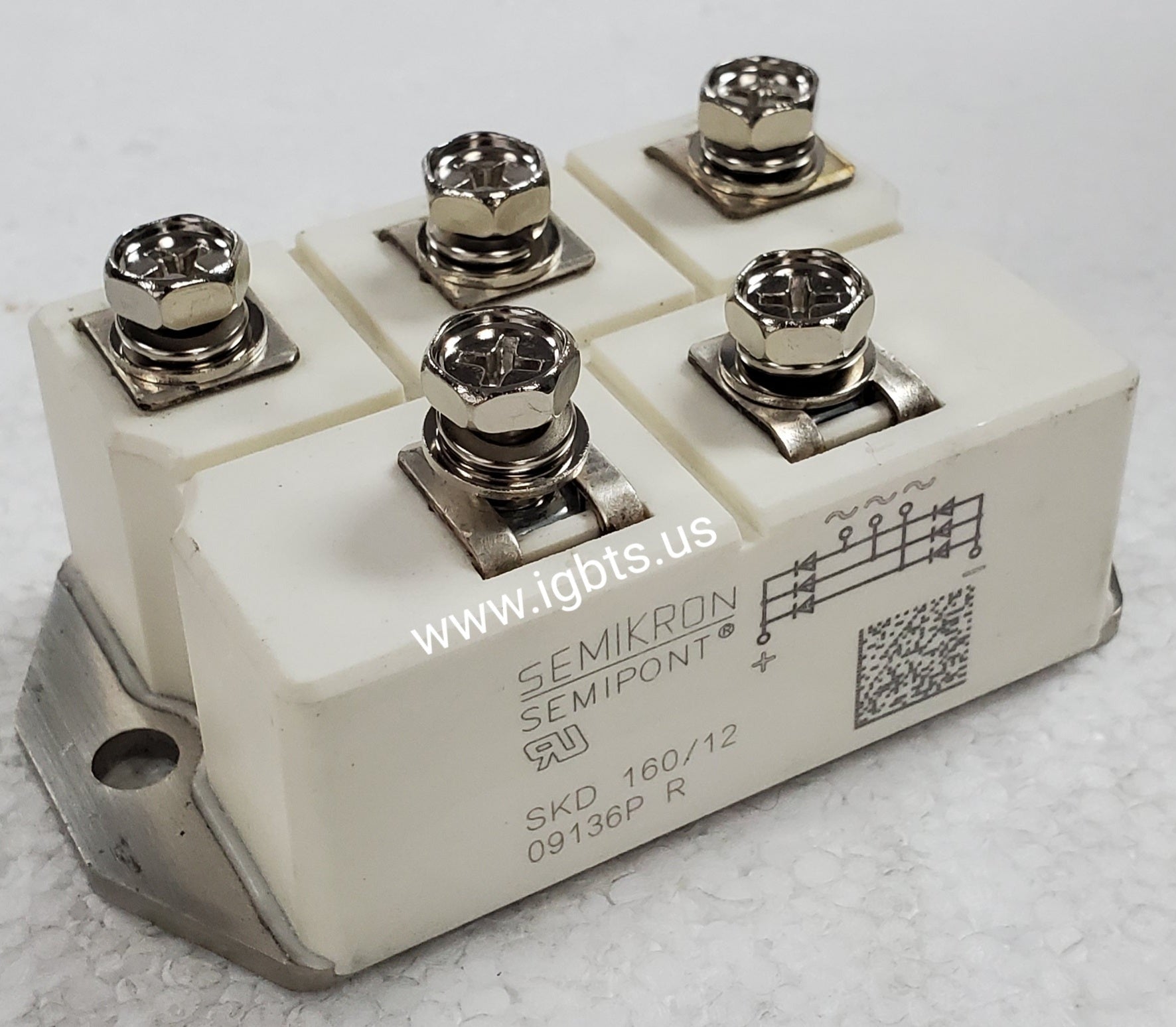

The SEMIKRON SKD160/12 is a three-phase fully controlled diode bridge rectifier module engineered for high-power industrial AC-DC conversion. Rated at 160A average output current and a 1200V repetitive peak reverse voltage (VRRM), this module integrates six diodes in a compact SKD housing with an isolated baseplate for direct heatsink mounting. The SKD160/12 delivers low forward voltage drop, high surge current capability, and reliable thermal performance, making it a proven solution in heavy-duty rectifier and front-end converter designs operating from standard three-phase mains.

The SKD160/12 is widely deployed in industrial variable speed drives (VSDs), DC motor controllers, UPS systems, welding equipment, electrochemical power supplies, and crane and hoist drive front ends. Its robust construction suits harsh industrial environments where thermal cycling and high inrush currents are recurring stresses. Engineers designing or maintaining rectifier stages in mill drives, pump controllers, and industrial automation infrastructure regularly specify the SKD160/12 for its combination of current capacity, blocking voltage margin, and SEMIKRON's well-established SKD platform reliability.

Quick Reference: SKD160/12

Key Features of the SKD160/12:

• 160A average output current (I_DAV) with high surge current (I_FSM) capability for reliable ride-through on inrush events
• 1200V repetitive peak reverse voltage (V_RRM) providing adequate margin on standard 480V and 690V three-phase mains
• Full three-phase bridge topology (six diodes) integrated in a single SKD module — reduces component count and simplifies PCB or busbar layout
• Isolated copper baseplate for direct thermal contact with heatsink; compatible with standard SKD footprint mounting hardware
• Low forward voltage drop (V_F) minimizes conduction losses and reduces heatsink derating requirements in continuous-duty applications
• Manufactured to SEMIKRON's industrial-grade quality standards with UL recognition and RoHS-compliant construction

The SKD160/12 carries a factory lead time of approximately 28 weeks for new production, placing it firmly in the long lead time category that challenges maintenance and procurement teams managing scheduled outages or emergency replacements. ATI Accurate Technology maintains an active sourcing network for exactly this type of hard-to-find SEMIKRON module. Whether you need a single replacement unit to minimize downtime or a buffer stock quantity to protect a fleet of drives, ATI works directly with authorized distribution channels and vetted secondary market sources to deliver verified new OEM product. Contact us early to discuss lead time mitigation and inventory reservation options.

ATI Accurate Technology is headquartered in Palmetto, Florida, and ships same-day on orders placed before 5PM EST. We stock and source IGBTs, diodes, thyristors, and rectifier modules from leading manufacturers including SEMIKRON, with a focus on long lead time, obsolete, and hard-to-find parts. Volume pricing is available for OEMs, MRO buyers, and drive repair shops. Call 239-734-7566 or email sales@igbts.us to check availability on the SKD160/12 and request a quote.
