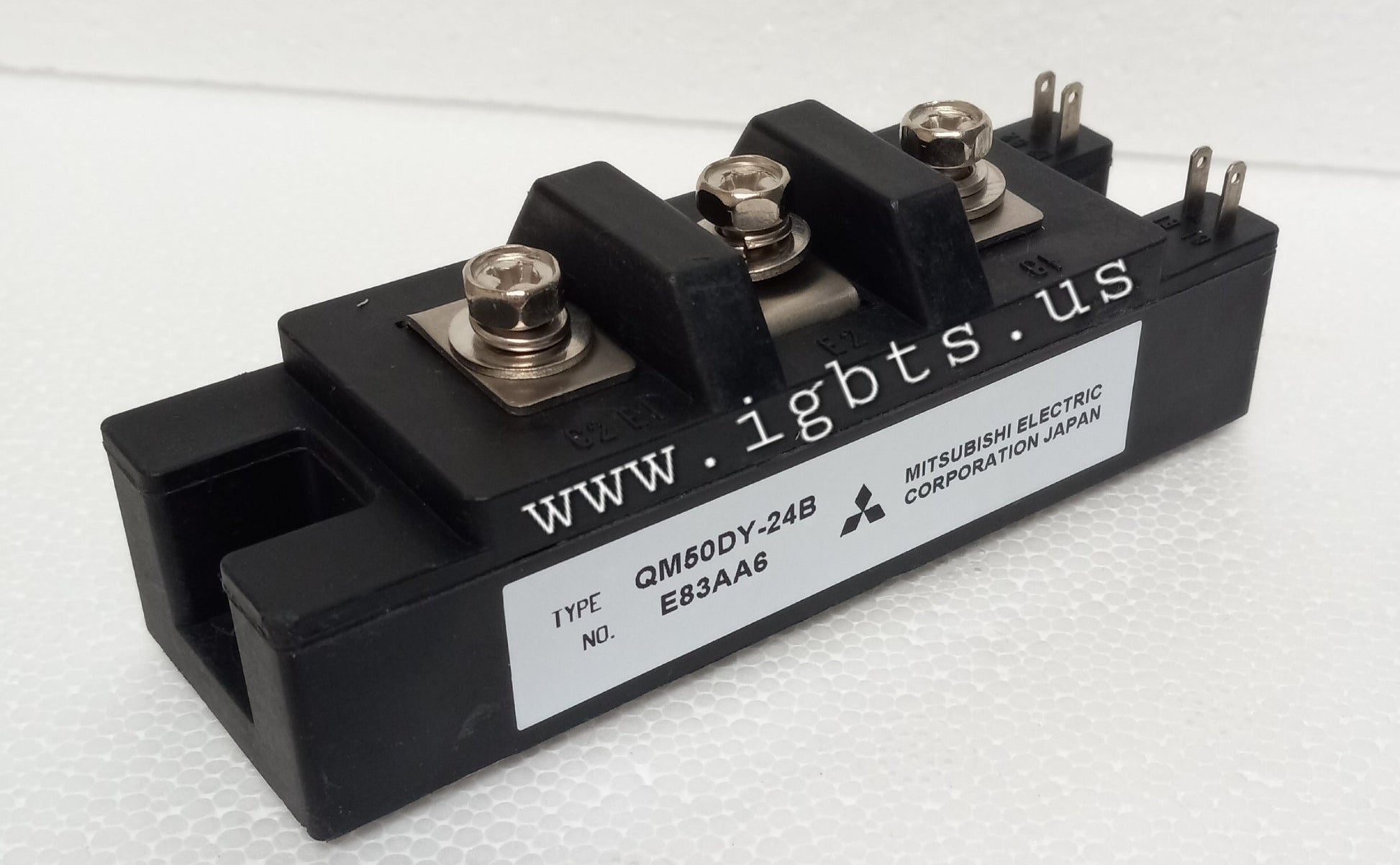

The Mitsubishi QM50DY-24B is a 1200V, 50A dual IGBT module engineered for high-efficiency switching in industrial power electronics. Built to Mitsubishi's proven QM-series platform, this module integrates IGBT chips with co-packaged freewheeling diodes in a rugged isolated baseplate package. Its 1200V blocking voltage and 50A continuous collector current rating make it a dependable solution for inverter stages, servo amplifiers, and DC motor drives where thermal performance and switching speed are critical design considerations.

The QM50DY-24B sees widespread use across industrial automation, CNC machine tool drives, elevator and hoist controls, UPS systems, and variable frequency drives (VFDs). Its dual-switch topology simplifies half-bridge circuit construction and reduces component count in three-phase inverter designs. HVAC compressor drives, welding inverters, and regenerative braking systems in industrial motion control are also common deployment environments where the combination of 1200V standoff and 50A current handling proves well matched to real-world load profiles.

Quick Reference: QM50DY-24B

Key Features of the QM50DY-24B:

• 1200V VCES collector-emitter blocking voltage for robust margin in 600V DC bus applications
• 50A continuous collector current rating with high peak current capability for transient overload tolerance
• Dual (half-bridge) IGBT configuration with integrated antiparallel freewheeling diodes for simplified inverter design
• Isolated copper baseplate construction enables direct heatsink mounting with standard thermal interface materials
• Low VCE(sat) characteristics minimize conduction losses and reduce heatsink thermal requirements at operating frequency
• Compatible with standard Mitsubishi QM-series gate drive circuits, simplifying drop-in replacement in existing designs

With a current factory lead time of 37 weeks on new production, procurement teams sourcing the QM50DY-24B for scheduled maintenance, emergency repair, or new build programs face a significant supply gap. The QM-series platform has a long service history, meaning MRO demand continues even as production scheduling tightens. Engineering teams supporting legacy drives or machinery with fixed BOMs cannot simply substitute an alternate module without gate drive and mechanical redesign — making direct-replacement inventory availability a genuine operational priority.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, maintaining ready stock of the QM50DY-24B for immediate shipment. Orders placed before 5PM EST ship same day. Whether you need a single unit for emergency breakdown repair or volume quantity for a scheduled maintenance program, ATI can support your requirement. Contact our team directly for volume pricing, cross-reference assistance, or application questions. Call 239-734-7566 or email sales@igbts.us.
