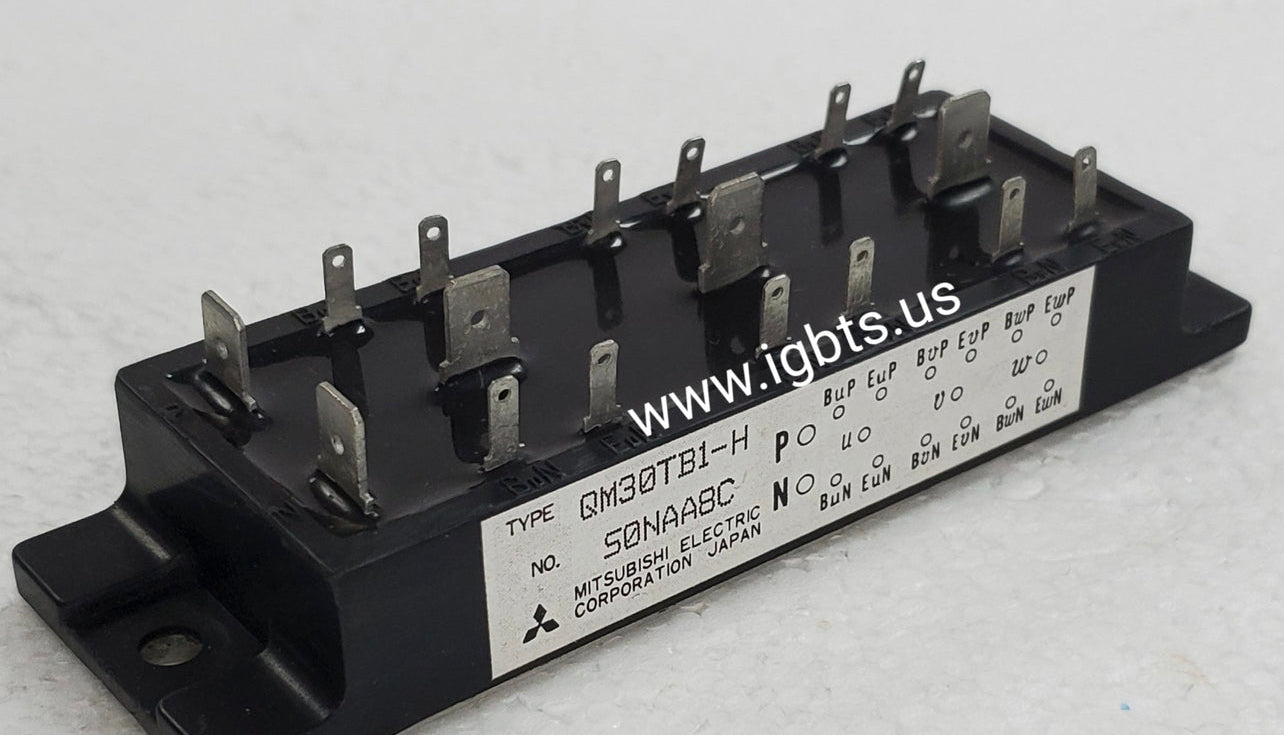

The Mitsubishi QM30TB1-H is a compact, high-performance IGBT module engineered for demanding power conversion applications. Combining fast switching characteristics with low saturation voltage, this module delivers reliable efficiency in inverter and chopper circuit topologies. Its rugged internal construction and isolated baseplate make it well-suited for integration into thermally managed power assemblies. Engineers specifying this part can expect consistent gate drive compatibility and predictable switching behavior across the operating temperature range — qualities essential in precision motion control and variable-frequency drive designs.

The QM30TB1-H sees broad deployment across industrial variable-frequency drives, servo amplifiers, UPS systems, and AC/DC converter stages in factory automation equipment. Its switching characteristics make it a dependable choice in welding inverters, elevator drive systems, and HVAC compressor controls where reliable commutation under inductive load conditions is non-negotiable. OEM machine builders and MRO maintenance teams working on Mitsubishi-based drive platforms will find the QM30TB1-H a direct, factory-correct replacement that minimizes commissioning time and preserves original system performance specifications.

Quick Reference: QM30TB1-H

Key Features of the QM30TB1-H:

• 30A collector current rating with 600V blocking voltage for medium-power inverter applications
• Low V_CE(sat) reduces conduction losses and heat generation at rated current
• Integrated freewheeling diodes eliminate external anti-parallel diode requirements in bridge configurations
• Isolated copper baseplate enables direct mounting to heatsink without additional insulation hardware
• Fast, controlled turn-off characteristics reduce EMI and switching losses in high-frequency PWM operation
• Gate drive compatible with standard IGBT driver ICs, simplifying drop-in replacement in existing drive platforms

With a verified factory lead time of 37 weeks, waiting on new production of the QM30TB1-H is rarely viable when a drive system is down or a build schedule is at risk. Mitsubishi IGBT modules in this class are routinely caught in extended allocation queues, particularly during periods of elevated industrial demand. ATI Accurate Technology maintains distributor stock of hard-to-find and long-lead-time power semiconductors precisely to bridge this gap — providing procurement teams and MRO buyers with a reliable, immediate source for parts that would otherwise stall production or extend equipment downtime by months.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules. We stock the QM30TB1-H and ship same-day on orders received before 5PM EST. Volume pricing is available for OEM builds and MRO blanket orders. Contact our team today at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss your project requirements.
