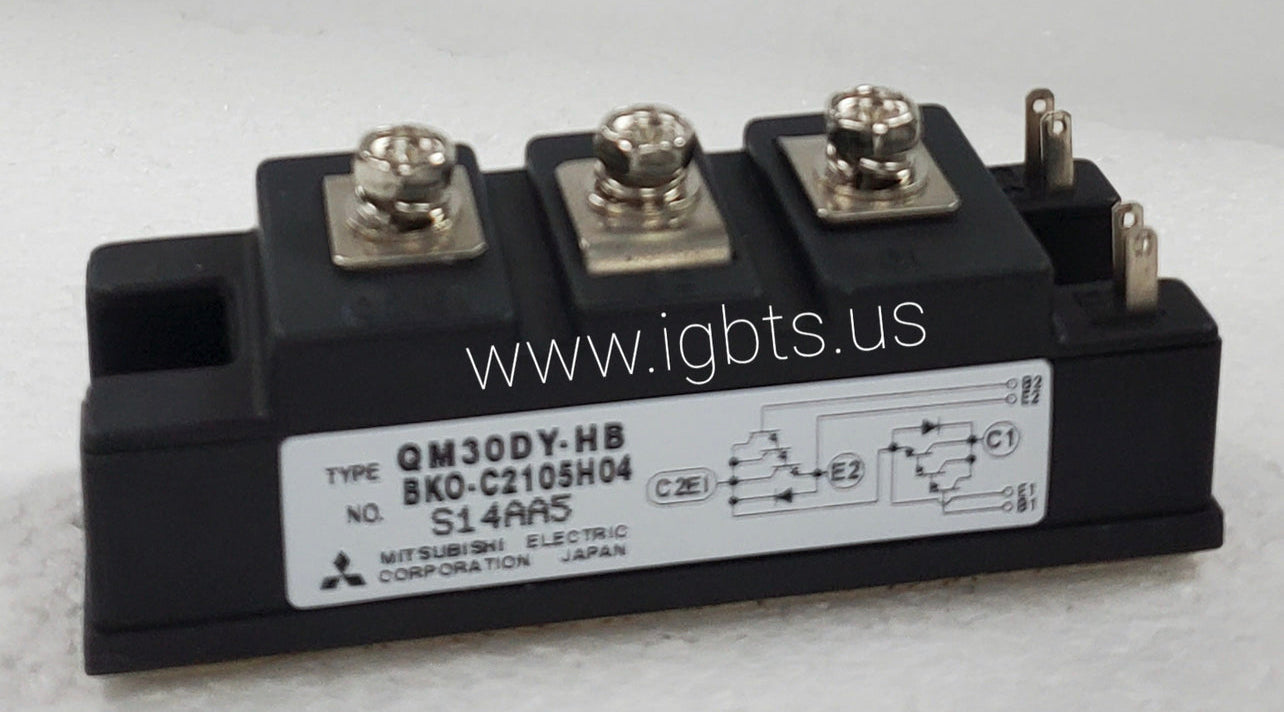

The Mitsubishi QM30DY-HB is a dual IGBT module engineered for high-efficiency switching in industrial power electronics systems. Built to Mitsubishi's proven power module standards, it combines fast switching characteristics with rugged short-circuit withstand capability, making it a dependable choice for inverter-grade applications where thermal performance and switching losses are critical design constraints. The module's integrated freewheeling diodes reduce external component count and simplify drive circuit design, while its isolated baseplate construction supports straightforward heatsink mounting in populated power assemblies.

The QM30DY-HB sees broad deployment across industrial variable frequency drives, servo amplifiers, UPS systems, and DC motor control platforms. Its switching speed and voltage handling make it well suited for HVAC compressor drives, conveyor and pump inverters, welding power supplies, and regenerative braking circuits in industrial machinery. OEM equipment manufacturers and MRO teams servicing legacy drives frequently specify this module as a direct replacement to restore equipment uptime without redesigning the power stage or control board layout.

Quick Reference: QM30DY-HB

Key Features of the QM30DY-HB:

• Dual IGBT configuration with integrated freewheeling diodes for simplified inverter leg design
• 600V blocking voltage rating with 30A continuous collector current suitable for industrial drive power stages
• Low saturation voltage (V_CE(sat)) reduces conduction losses and thermal stress at rated current
• Isolated copper baseplate construction enables direct heatsink mounting with standard thermal interface materials
• Fast turn-off characteristics minimize switching losses across the full PWM frequency range of typical motor drive applications
• Designed to meet the short-circuit withstand and gate drive requirements of standard IGBT driver ICs and optocoupler-based gate drive designs

The QM30DY-HB carries a 36-week factory lead time from Mitsubishi under current production scheduling — a significant exposure for any facility managing unplanned equipment failures or production-critical drive replacements. Obsolescence risk is a real concern for this class of legacy module, as Mitsubishi periodically transitions production to next-generation platforms. Procurement teams sourcing for MRO stock buffers, capital equipment refurbishment projects, or OEM service parts programs need a distributor with verified inventory on hand rather than a spot-market promise against future allocation.

ATI Accurate Technology maintains ready inventory of the QM30DY-HB at our Palmetto, Florida facility, with same-day shipping on orders placed before 5PM EST. We specialize in hard-to-find, long-lead-time, and obsolete power semiconductors — IGBTs, thyristors, diodes, and rectifier modules. Volume pricing is available for MRO blanket orders and OEM programs. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm stock, request a quote, or discuss application support.
