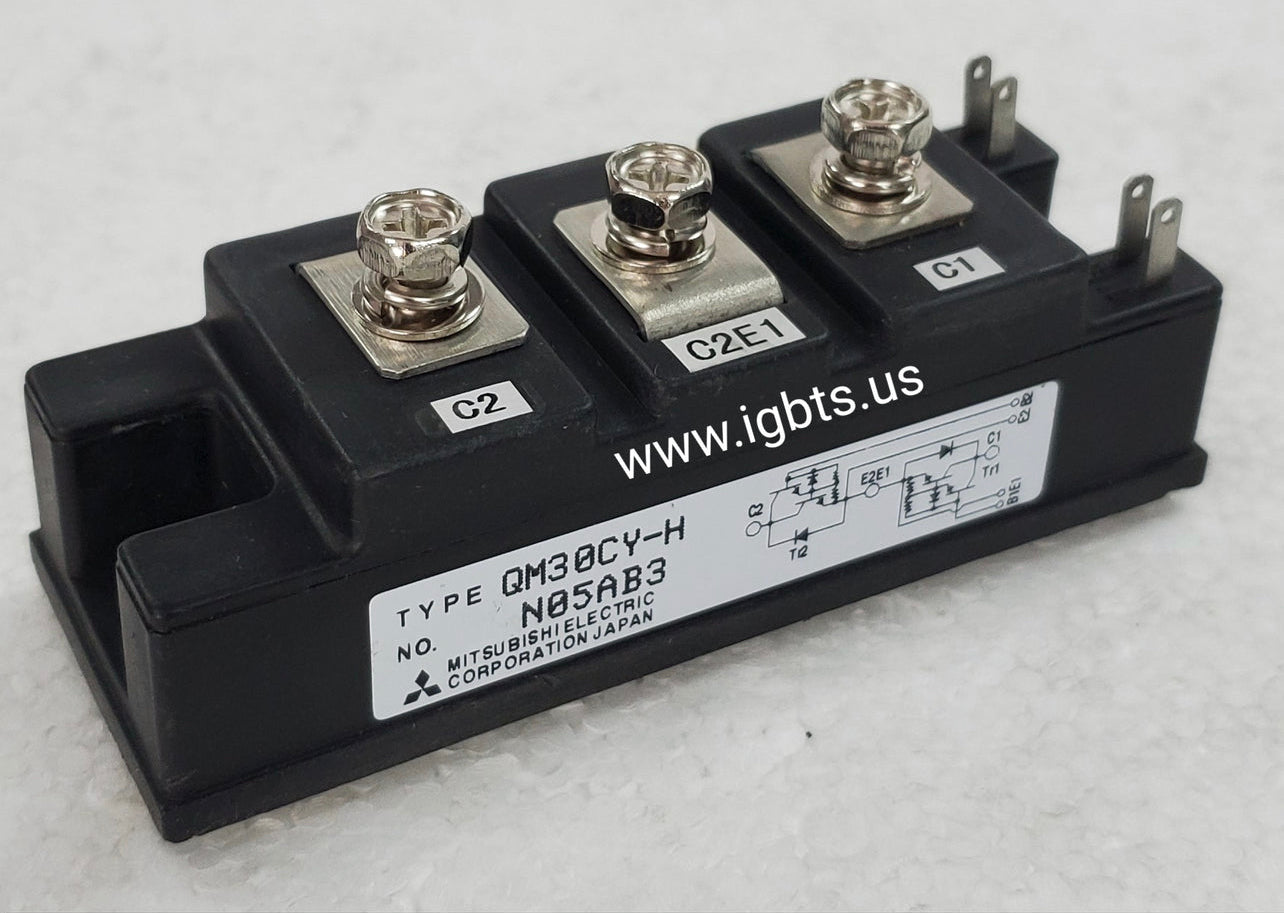

The Mitsubishi QM30CY-H is a power IGBT module built for industrial-grade switching applications requiring consistent thermal performance and rugged reliability. Designed with an integrated freewheeling diode structure, this module delivers low saturation voltage and fast switching characteristics essential for high-frequency inverter designs. Its compact form factor and industry-standard footprint make it a practical choice for both original equipment builds and direct replacement in existing systems where uptime is critical and sourcing delays are not acceptable.

The QM30CY-H is well suited for a broad range of industrial power electronics applications including AC motor drives, servo amplifiers, UPS systems, induction heating equipment, and welding inverters. Engineers specifying or maintaining variable frequency drives and precision motion control platforms will recognize this module's role in the inverter bridge stage, where switching efficiency and thermal stability directly impact system performance and mean time between failures. Its reliability profile makes it a common selection in industrial automation and process control environments.

Quick Reference: QM30CY-H

Key Features of the QM30CY-H:

• 30A continuous collector current rating with 600V blocking voltage for robust inverter stage performance
• Integrated freewheeling diodes in a co-packaged configuration, reducing external component count and board complexity
• Low V_CE(sat) characteristics minimize conduction losses and reduce thermal stress across the operating cycle
• Fast turn-off switching behavior supports high carrier frequency operation with reduced switching loss penalties
• Isolated baseplate construction provides electrical isolation between the power circuit and heatsink for simplified thermal management
• Industry-standard module pinout and mounting pattern enables straightforward drop-in replacement in existing drive and inverter platforms

With a factory lead time of 44 weeks for new production, the QM30CY-H presents a real procurement challenge for maintenance teams managing unplanned downtime or engineering teams facing build schedule pressure. Obsolescence risk and extended manufacturer queues make relying solely on direct factory channels increasingly impractical. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IGBT modules precisely for these situations, giving procurement and maintenance professionals access to verified new OEM stock without waiting nearly a year for factory fulfillment.

ATI Accurate Technology is located in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules for industrial and commercial power electronics. Orders placed before 5PM EST ship same-day. Contact our team for real-time stock confirmation, datasheet support, and volume pricing on the QM30CY-H or any related Mitsubishi power module. Call 239-734-7566 or email sales@igbts.us to speak with a specialist today.
