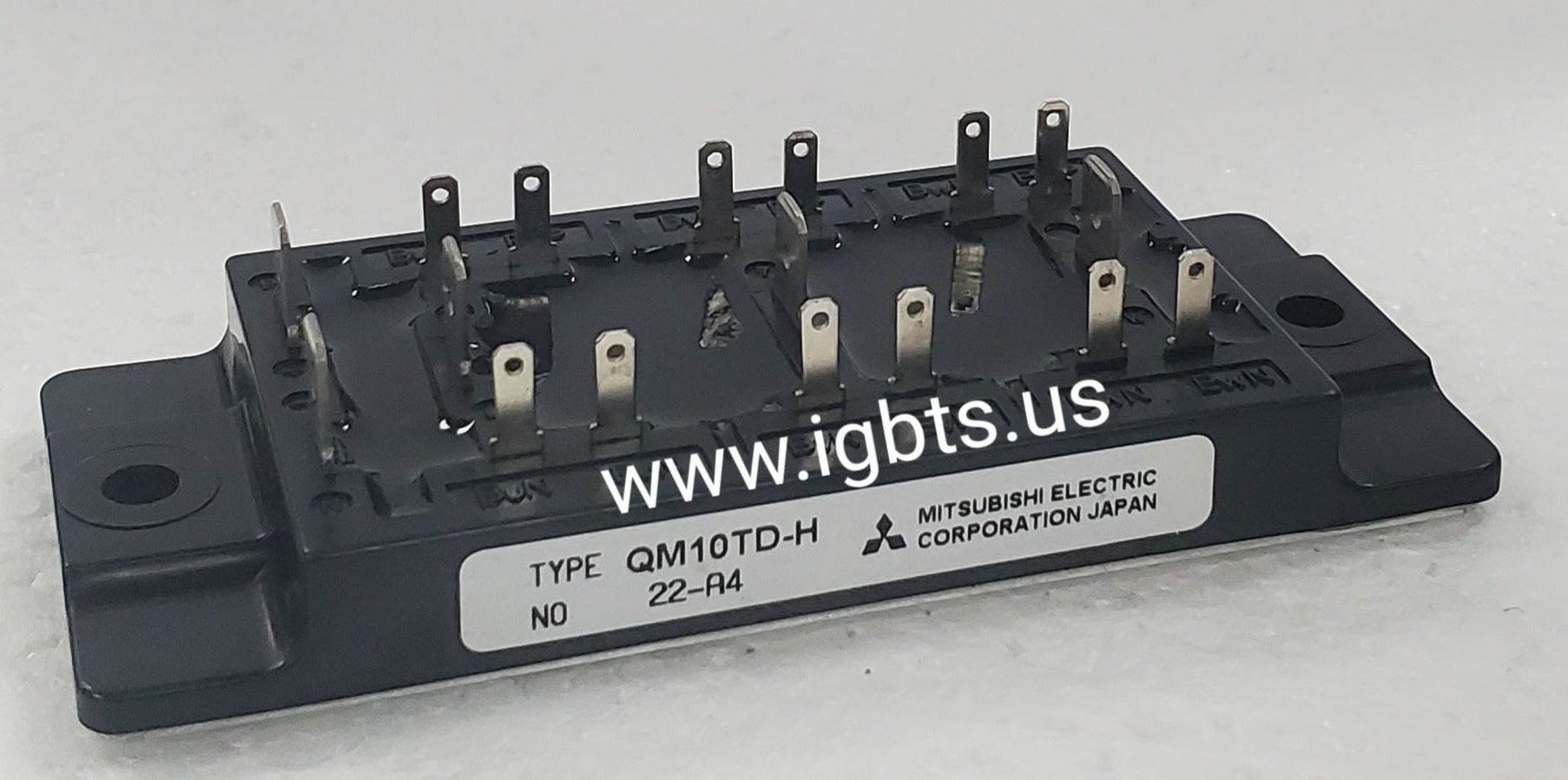

The Mitsubishi QM10TD-H is a power IGBT module engineered for demanding switching and motor control applications where reliability and thermal performance are non-negotiable. Built to Mitsubishi's established power semiconductor standards, this module delivers consistent gate characteristics, low saturation voltage, and rugged short-circuit withstand capability. Whether you are maintaining legacy equipment or designing a new power stage, the QM10TD-H provides the switching performance and compact form factor that industrial power electronics applications require. Its integrated design simplifies board layout and reduces assembly complexity in inverter and converter topologies.

The QM10TD-H sees wide deployment across industrial AC motor drives, servo amplifiers, UPS systems, and general-purpose inverter platforms. Its switching characteristics make it well suited for variable frequency drives (VFDs) controlling pumps, fans, compressors, and CNC machinery. The module is also used in welding power supplies and induction heating equipment where precise switching control and thermal durability are essential. OEMs and field service engineers rely on this part to keep production lines running and to replace aged or failed power stages in installed inverter equipment across manufacturing, HVAC, and process automation environments.

Quick Reference: QM10TD-H

Key Features of the QM10TD-H:

• Low collector-to-emitter saturation voltage (V_CE(sat)) reduces conduction losses across the full operating current range
• Integrated freewheeling diodes provide a complete switching cell in a single compact package, reducing external component count
• High short-circuit withstand capability supports reliable operation in demanding industrial inverter environments
• Optimized gate drive requirements simplify driver circuit design and improve overall system switching efficiency
• Robust isolated baseplate construction facilitates direct heatsink mounting and effective thermal management
• Designed for compatibility with standard Mitsubishi IGBT module footprints, easing drop-in replacement in existing equipment

With factory production lead times on the QM10TD-H currently running 36 weeks, procurement teams managing MRO inventory or emergency repairs cannot afford to rely solely on the factory pipeline. Mitsubishi IGBT modules in this series are also subject to product lifecycle transitions, making distributor stock increasingly important for long-term serviceability. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time Mitsubishi power semiconductors precisely to bridge this gap — keeping your production equipment online and your project timelines intact without waiting three-quarters of a year for factory fulfillment.

ATI Accurate Technology is headquartered in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules for industrial and commercial power electronics. The QM10TD-H ships same day on orders received before 5PM EST. Contact our team for volume pricing, cross-reference assistance, or urgent sourcing needs: call 239-734-7566 or email sales@igbts.us. We support maintenance engineers and procurement professionals with responsive service and verified OEM inventory.
