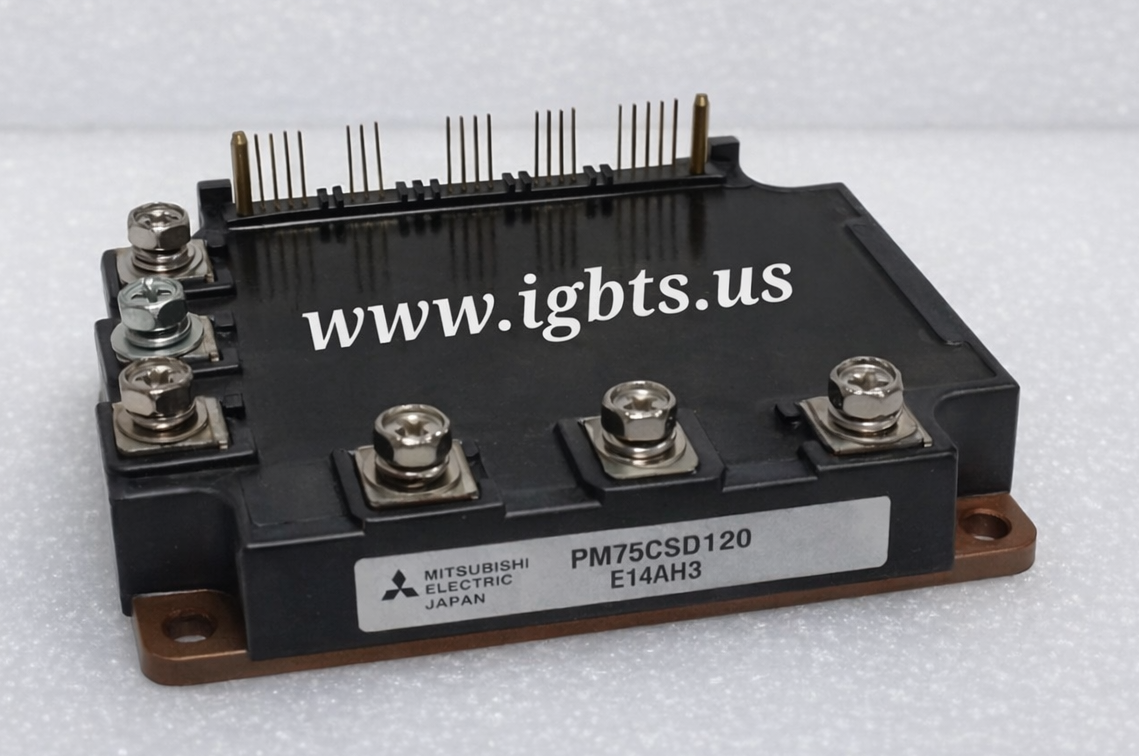

The Mitsubishi PM75CSD120 is a 75A, 1200V Intelligent Power Module combining high-speed IGBT chips with integrated gate drive circuits, overcurrent protection, short-circuit protection, and undervoltage lockout in a single compact package. This level of integration reduces external component count, simplifies PCB layout, and accelerates time-to-design in inverter and converter topologies. The built-in protection functions respond in microseconds, safeguarding both the module and the load from fault conditions that would otherwise require discrete external logic to handle.

The PM75CSD120 is well suited for AC motor drives, servo amplifiers, UPS systems, induction heating equipment, and industrial inverters operating from three-phase mains. Its 1200V blocking voltage provides the necessary headroom for 480VAC bus applications with standard derating margins, while the 75A current rating supports multi-kilowatt drive platforms. OEMs building variable-frequency drives, CNC spindle controllers, and regenerative drive systems have standardized on this module for its balance of switching performance and integrated protection overhead.

Quick Reference: PM75CSD120

Key Features of the PM75CSD120:

• 1200V collector-emitter voltage with 75A continuous collector current for high-power industrial inverter platforms
• Integrated gate drive circuitry eliminates the need for external isolated gate drive power supplies per switch
• On-chip overcurrent and short-circuit protection with fast fault shutdown response to minimize IGBT stress during fault events
• Undervoltage lockout (UVLO) on gate drive supply prevents destructive partial-enhancement operation during power-up and power-down sequencing
• Isolated signal and power interfaces reduce EMI coupling between control logic and high-voltage power stages
• Thermally efficient package with isolated baseplate compatible with standard heat sink mounting and thermal interface materials

The PM75CSD120 carries a factory lead time of approximately 38 weeks for new production orders — a timeline that can halt repair programs, delay production line restarts, and strand capital equipment. Maintenance engineers supporting legacy drives and OEM procurement teams managing MRO inventory cannot afford to wait out full factory lead cycles for a single critical module. ATI specializes in exactly this scenario, maintaining inventory of hard-to-find and long-lead-time IPMs like the PM75CSD120 to bridge the gap between factory scheduling and your operational timeline.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders confirmed before 5PM EST. We stock new OEM power semiconductors including IGBTs, IPMs, thyristors, and rectifier modules for industrial and commercial applications. Volume pricing is available for MRO stockers and OEM build programs. Contact our team directly at 239-734-7566 or sales@igbts.us to check real-time availability and request a quote on the PM75CSD120.
