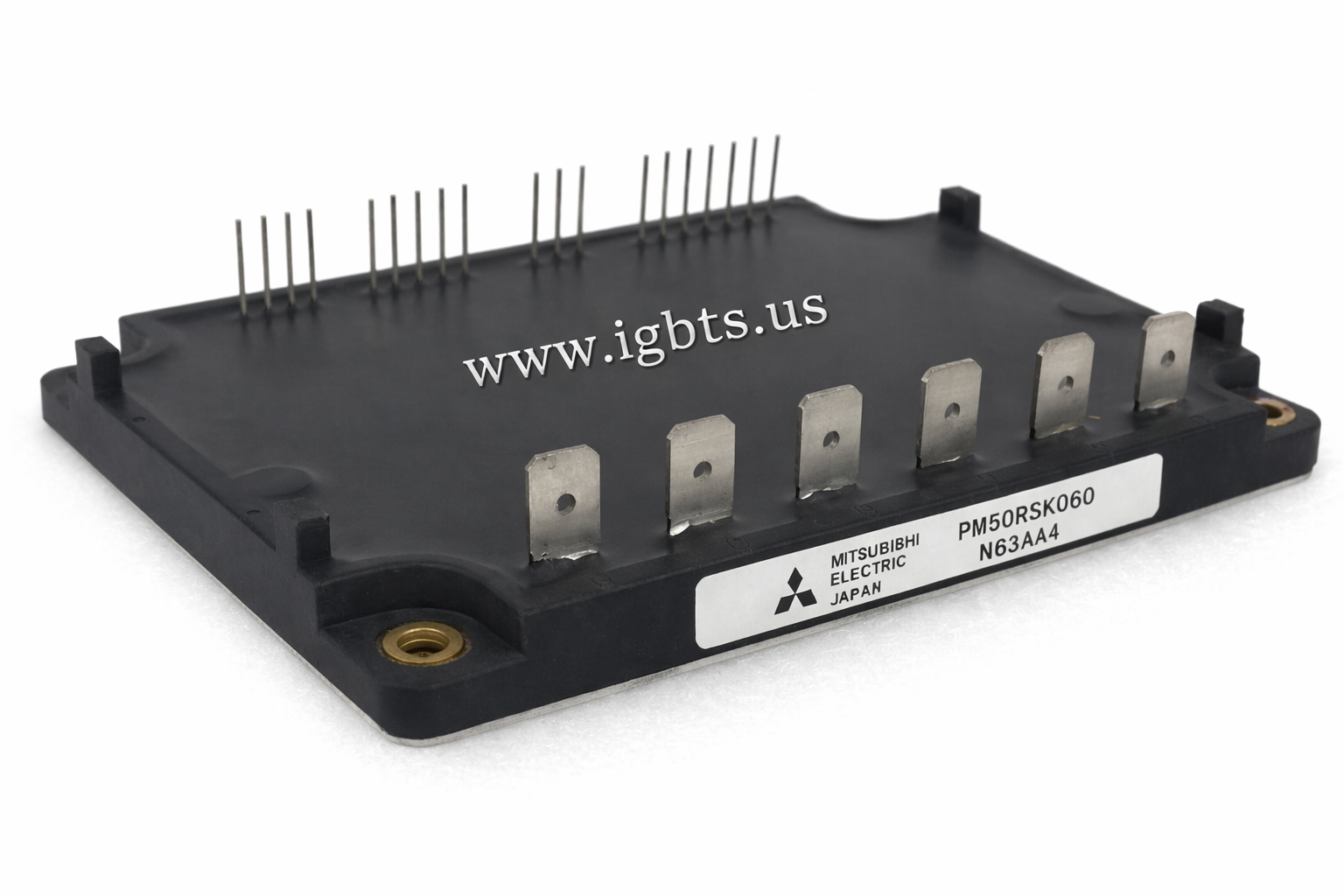

The PM50RSK060 is a Mitsubishi Electric Intelligent Power Module (IPM) offering a robust 50A, 600V rating in a compact, integrated package. Combining high-speed IGBT technology with onboard gate drive circuitry, over-current protection, and thermal monitoring, this module simplifies power converter design while delivering reliable, high-efficiency performance in demanding industrial environments.

The PM50RSK060 is well suited for a broad range of applications including AC motor drives, variable frequency drives (VFDs), servo amplifiers, industrial inverters, and general-purpose power conversion systems. Its integrated protection features reduce external component count and design complexity, making it a preferred choice for engineers developing compact and cost-effective drive systems.

Quick Reference: PM50RSK060

Key Features:

• 50A continuous collector current rating with 600V blocking voltage for versatile industrial use
• Integrated gate drive circuitry eliminates the need for external gate resistors and drive transformers
• Built-in protection functions including over-current, short-circuit, under-voltage lockout, and over-temperature shutdown
• High-speed IGBT switching technology reduces switching losses and improves overall inverter efficiency
• Compact module form factor simplifies PCB layout and reduces overall system size
• Designed for compatibility with standard Mitsubishi IPM drive interface circuits for streamlined design integration

Sourcing Mitsubishi IPM modules such as the PM50RSK060 can be challenging through standard distribution channels, particularly for maintenance, repair, and legacy system applications. ATI Accurate Technology specializes in exactly these scenarios, maintaining inventory of hard-to-find, long-lead-time, and obsolete power semiconductor components to keep your operations running without costly downtime. Whether you need a single replacement unit or a larger quantity for production, ATI can fulfill your requirements quickly and reliably.

Contact ATI Accurate Technology today for pricing, availability, and technical support on the PM50RSK060 and other Mitsubishi power modules. Reach our team by phone at 239-734-7566 or by email at sales@igbts.us. Orders placed before 5PM EST qualify for same-day shipping, ensuring you get the parts you need as fast as possible. Visit us at igbts.us to browse our full inventory of IGBTs, thyristors, diodes, and rectifier modules.
