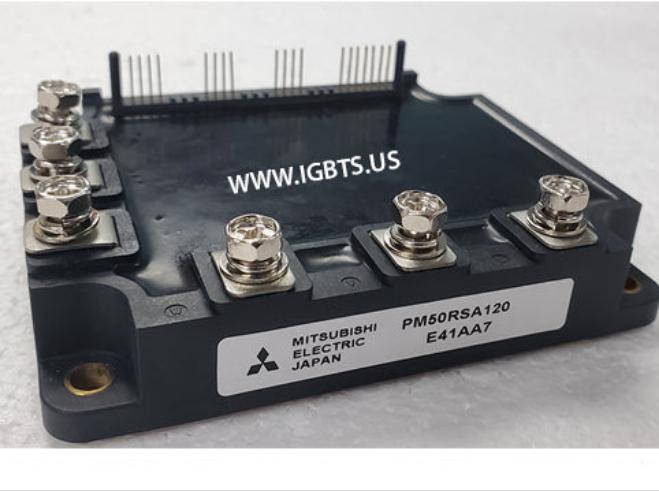

The Mitsubishi PM50RSA120 is a 50A, 1200V Intelligent Power Module (IPM) that integrates IGBT chips, gate drive circuitry, and comprehensive protection functions into a single isolated package. This level of integration reduces external component count and board complexity while delivering consistent switching performance across industrial operating conditions. The built-in protection logic — covering overcurrent, short-circuit, undervoltage lockout, and overtemperature — makes the PM50RSA120 a robust solution for engineers who need a compact, reliable power stage without sacrificing fault tolerance or design flexibility.

The PM50RSA120 is well-suited for three-phase AC motor drives, servo amplifiers, UPS systems, solar inverters, and general-purpose industrial power converters operating at medium power levels. Its 1200V blocking capability provides the necessary headroom for 480VAC line applications with sufficient margin against transient overvoltages. OEMs and systems integrators in CNC machinery, HVAC drives, pumping systems, and industrial automation platforms commonly specify this module as a core power stage component. Replacement demand is also high in the field service and MRO market, where aging drive systems require like-for-like substitution.

Quick Reference: PM50RSA120

Key Features of the PM50RSA120:

• 50A collector current rating with 1200V CE voltage for robust 480VAC three-phase inverter applications
• Integrated gate drive circuitry eliminates the need for external isolated gate drivers, reducing BOM complexity
• On-chip protection functions include overcurrent shutdown, short-circuit protection, undervoltage lockout (UVLO), and overtemperature alarm output
• Isolated baseplate construction supports direct heatsink mounting with low thermal resistance for high-power-density designs
• Bootstrap power supply compatible architecture simplifies auxiliary power supply design in inverter topologies
• Fault output signal pin enables straightforward interface to system microcontrollers or DSP-based control boards for coordinated fault handling

With a factory lead time of 36 weeks on new production, procurement teams relying solely on the Mitsubishi supply chain face significant exposure when unplanned failures occur or project timelines compress. The PM50RSA120 has been a long-standing staple in industrial drive platforms, and as installed equipment ages, field replacement demand continues well beyond the module's active production window. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IPMs precisely to bridge this gap — providing verified new OEM stock when direct factory channels cannot meet schedule requirements.

ATI Accurate Technology is a specialized power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, intelligent power modules, thyristors, diodes, and rectifier assemblies — including obsolete and long-lead-time parts like the PM50RSA120. Orders placed before 5PM EST ship same day. Contact our technical sales team for pricing, volume breaks, and availability: call 239-734-7566 or email sales@igbts.us. Volume pricing is available for MRO stocking orders and OEM production builds.
