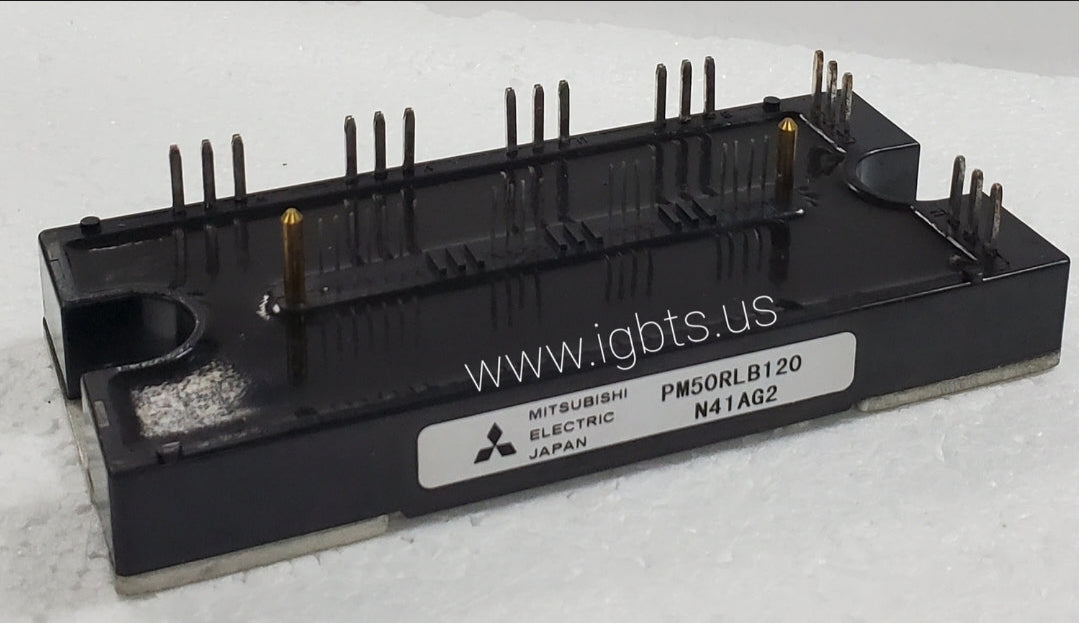

The Mitsubishi PM50RLB120 is a 50A, 1200V Intelligent Power Module (IPM) combining high-voltage IGBT chips with integrated gate drive, overcurrent protection, short-circuit protection, undervoltage lockout, and thermal shutdown into a single, isolated package. This level of integration eliminates external gate drive complexity, reduces board space, and improves system reliability. The module's optimized IGBT technology delivers low saturation voltage and fast switching characteristics, making it an efficient solution for high-frequency, hard-switching power conversion topologies where thermal performance and protection response time are equally critical.

The PM50RLB120 is widely deployed in AC variable-frequency drives (VFDs), servo amplifiers, CNC spindle drives, uninterruptible power supplies (UPS), and industrial inverters operating from three-phase 480V mains. Its integrated protection suite is particularly valued in OEM machine tool and robotics platforms where a module fault must be contained before cascading into a system-level failure. Renewable energy converters, elevator drives, and HVAC compressor controllers operating in the 5–15 kW range also represent strong application fits for this part's voltage and current rating.

Quick Reference: PM50RLB120

Key Features of the PM50RLB120:

• 1200V collector-emitter breakdown voltage with 50A continuous collector current rating for robust margin in 480V three-phase systems
• Integrated gate drive circuitry eliminates the need for discrete isolated gate driver ICs per IGBT leg
• Built-in overcurrent and short-circuit protection with fast fault response to minimize IGBT stress during fault events
• Undervoltage lockout (UVLO) on gate drive supply prevents shoot-through during power-up and supply transients
• On-module NTC thermistor or thermal protection output enables real-time junction temperature monitoring and system-level thermal management
• Isolated baseplate construction simplifies heatsink mounting and meets creepage/clearance requirements for industrial inverter designs

With a published factory lead time of 34 weeks, securing PM50RLB120 modules through standard distribution channels is impractical for repair scenarios or unplanned production demand. Mitsubishi IPMs of this generation also appear on end-of-life and long-lead watch lists, making spot inventory increasingly difficult to locate through conventional sources. Procurement teams supporting installed base equipment — particularly legacy VFDs and servo systems — cannot afford to wait 8+ months for factory fulfillment when a drive is down on the floor. Sourcing from a stocking specialist with verified new OEM inventory is the only reliable path to minimizing downtime.

ATI Accurate Technology, located in Palmetto, Florida, stocks the PM50RLB120 as new OEM product and ships same-day on orders placed before 5PM EST. We specialize in hard-to-find, long-lead-time, and obsolete power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Volume pricing is available for MRO stocking orders and OEM production runs. Contact our team directly at 239-734-7566 or sales@igbts.us for availability confirmation and a quote.
