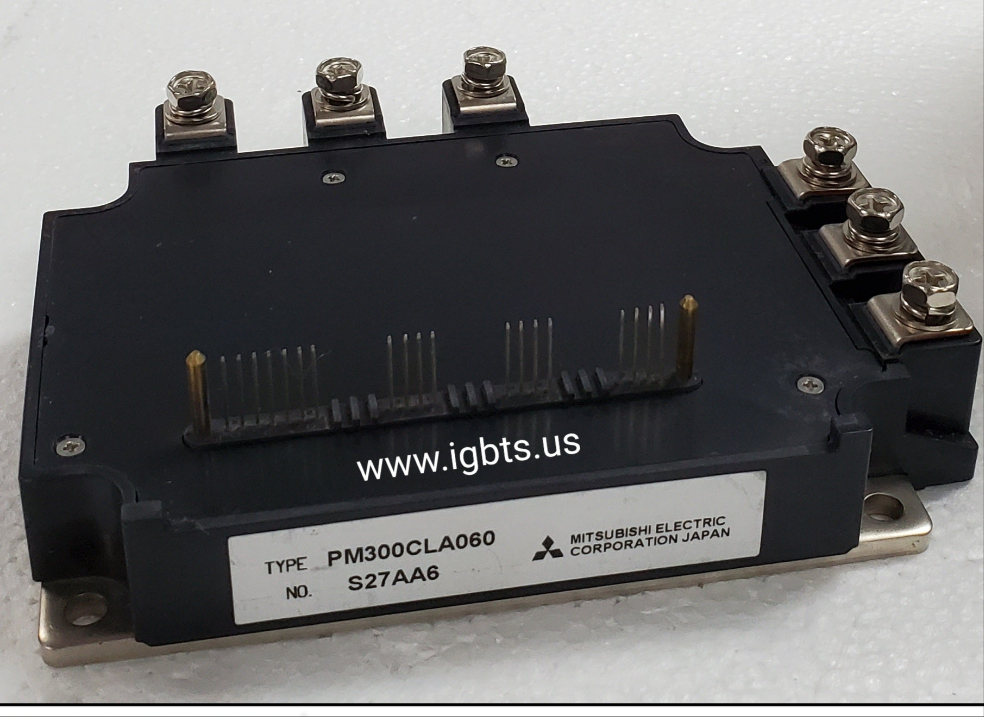

The Mitsubishi PM300CLA060 is a 300A, 600V Intelligent Power Module (IPM) that integrates IGBT chips with onboard gate drive circuitry, fault protection logic, and current sensing into a compact, thermally optimized package. By consolidating these functions, the PM300CLA060 reduces PCB complexity and development time significantly compared to discrete IGBT solutions. Its built-in protection features—including overcurrent, short-circuit, undervoltage lockout, and overtemperature shutdown—make it a robust choice for demanding industrial power conversion applications where reliability and uptime are critical requirements.

The PM300CLA060 is widely deployed in high-power AC variable frequency drives (VFDs), servo amplifiers, CNC machine tool spindle drives, industrial UPS systems, and elevator traction inverters. Its combination of integrated protection and high current density makes it well suited for any three-phase inverter stage operating from a 400V AC supply bus. OEM machinery manufacturers and MRO maintenance teams rely on this module in equipment spanning steel processing, plastics extrusion, material handling, HVAC compressor drives, and renewable energy power conditioning systems.

Quick Reference: PM300CLA060

Key Features of the PM300CLA060:

• 300A continuous collector current with 600V CE voltage rating, suitable for 400V-class three-phase inverter topologies
• Integrated gate drive circuitry eliminates the need for external isolated gate driver boards, simplifying system design
• Built-in overcurrent and short-circuit protection with fault output signal for system-level fault management
• Undervoltage lockout (UVLO) on all gate drive channels prevents undefined switching states during power-up and power-down sequences
• Onboard NTC thermistor enables real-time junction temperature monitoring and thermal management integration
• Isolated control signal inputs compatible with standard 3.3V and 5V logic levels for direct interface with DSP or microcontroller PWM outputs

With a factory lead time of 38 weeks for new production, the PM300CLA060 presents a significant procurement challenge for maintenance teams facing unplanned equipment failures or production engineers building new systems on aggressive schedules. Mitsubishi IPMs of this current class are frequently found on long allocation lists, and spot market availability can be unpredictable. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power modules specifically to bridge this gap, ensuring critical machinery stays operational without waiting three quarters for factory fulfillment.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, intelligent power modules, thyristors, and rectifier assemblies including obsolete and allocated parts. Same-day shipping is available on orders confirmed before 5PM EST. Contact our team for competitive pricing, volume discounts, and urgent delivery options. Call 239-734-7566 or email sales@igbts.us to check live stock and request a quote on the PM300CLA060 today.
