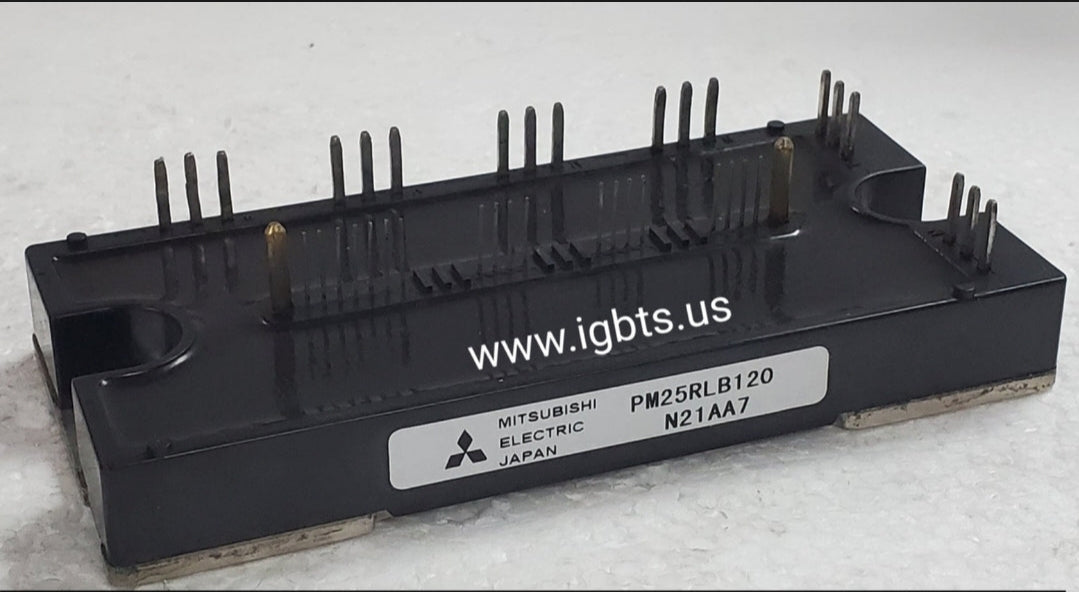

The Mitsubishi PM25RLB120 is an Intelligent Power Module (IPM) that integrates IGBT chips with optimized gate drive circuitry and comprehensive on-module protection functions into a single, thermally efficient package. Designed for demanding industrial inverter and motor control applications, this IPM simplifies power stage design by incorporating overcurrent, short-circuit, undervoltage lockout, and overtemperature protection directly on-module. The PM25RLB120 delivers reliable switching performance with reduced EMI and switching losses, making it a preferred solution for engineers building compact, high-reliability drive systems.

The PM25RLB120 sees widespread use across variable frequency drives (VFDs), AC servo amplifiers, uninterruptible power supplies (UPS), and industrial pump and fan controllers. Its integrated protection and gate drive functions reduce external component count and PCB real estate, shortening design cycles for OEM equipment manufacturers. The module is also found in HVAC compressor drives, CNC machine tool spindle drives, and elevator motor controllers where reliable, thermally managed power conversion is non-negotiable. Maintenance engineers replacing failed modules in legacy equipment will find the PM25RLB120 a direct, drop-in solution.

Quick Reference: PM25RLB120

Key Features of the PM25RLB120:

• 25 A / 1200 V IGBT-based intelligent power module rated for high-voltage industrial inverter topologies
• Integrated gate drive circuitry eliminates the need for external isolated gate driver ICs, reducing BOM complexity
• On-module protection suite includes overcurrent (OC), short-circuit (SC), undervoltage lockout (UVLO), and overtemperature (OT) shutdown with fault output signaling
• Optimized IGBT chip technology balances low conduction losses with controlled switching speed to minimize EMI generation
• Isolated control-to-power interface supports direct interfacing with 3.3 V and 5 V DSP/microcontroller logic without additional level-shifting
• Compact, transfer-molded package with industry-standard footprint simplifies PCB layout and direct heatsink mounting

With a factory lead time of 34 weeks on new production, the PM25RLB120 presents a serious procurement challenge for facilities dealing with unplanned equipment failures or time-sensitive production schedules. Extended lead times on Mitsubishi IPMs have affected aftermarket availability industry-wide, leaving maintenance and procurement teams exposed when spares run out. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power modules specifically to bridge this gap, providing immediate access to new OEM stock when the factory pipeline cannot respond quickly enough to keep operations running.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules. The PM25RLB120 ships same-day on orders placed before 5:00 PM EST. Whether you need a single replacement unit or are building safety stock, ATI offers competitive volume pricing and fast turnaround. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and receive a quote.
