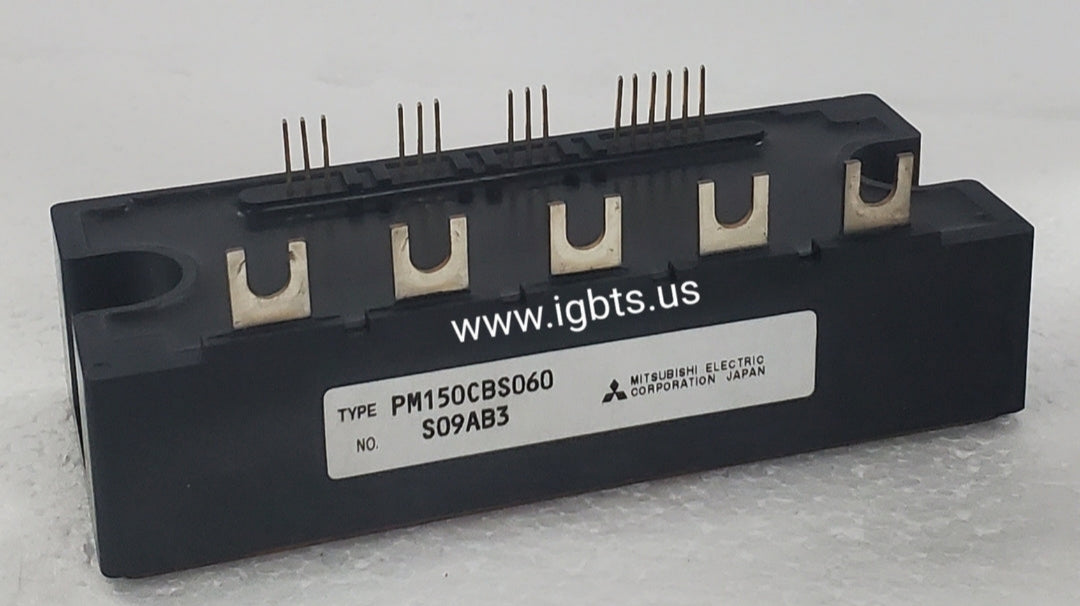

The Mitsubishi PM150CBS060 is a 150A, 600V Intelligent Power Module (IPM) that integrates IGBT chips, gate drive circuitry, and comprehensive protection functions into a single isolated package. Designed to reduce system complexity and board space, this IPM incorporates under-voltage lockout, over-current shutdown, and temperature monitoring directly within the module. It is built to Mitsubishi's established IPM platform standards, offering engineers a proven solution that balances switching performance with thermal management and long-term operational reliability in high-power conversion applications.

The PM150CBS060 is well suited for industrial AC motor drives, CNC servo amplifiers, elevator and crane drives, uninterruptible power supplies (UPS), and general-purpose inverter systems operating from 400V-class bus voltages. Its integrated protection features reduce external component count and simplify fault handling, making it a preferred choice in both original equipment manufacturing and field replacement scenarios. Industries including material handling, machine tooling, HVAC, and renewable energy inverters routinely specify this class of Mitsubishi IPM for its balance of current density and protection depth.

Quick Reference: PM150CBS060

Key Features of the PM150CBS060:

• 150A continuous collector current with 600V CE blocking voltage for 400V-class inverter stages
• Integrated gate drive circuitry eliminates the need for discrete gate resistors and isolated driver power supplies per switch
• Built-in protection: over-current (OC) shutdown, under-voltage lockout (UVLO), and over-temperature (OT) fault output
• Isolated baseplate construction compatible with direct heatsink mounting for optimized thermal resistance path
• Fault signal output pin for system-level fault detection and rapid protection response without additional sensing hardware
• Compatible with standard Mitsubishi IPM interface circuits, simplifying drop-in replacement and drive circuit reuse across designs

With a factory lead time of 43 weeks on new production runs, the PM150CBS060 presents a significant procurement challenge for maintenance teams managing unplanned downtime or OEMs scheduling production builds. Extended lead times on Mitsubishi IPMs are common across the current power semiconductor supply landscape. Sourcing from a stocking distributor with immediate inventory is often the only path to avoiding costly production delays or extended equipment outages. Verifying stock availability early in the procurement cycle is strongly recommended for any program depending on this module.

ATI Accurate Technology, based in Palmetto, Florida, stocks the PM150CBS060 as new OEM product available for same-day shipping on orders placed before 5PM EST. ATI specializes in IGBTs, IPMs, thyristors, diodes, and rectifier modules, including hard-to-find and long-lead-time components. Volume pricing is available for OEM and MRO quantity requirements. Contact ATI at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss your program's procurement needs.
