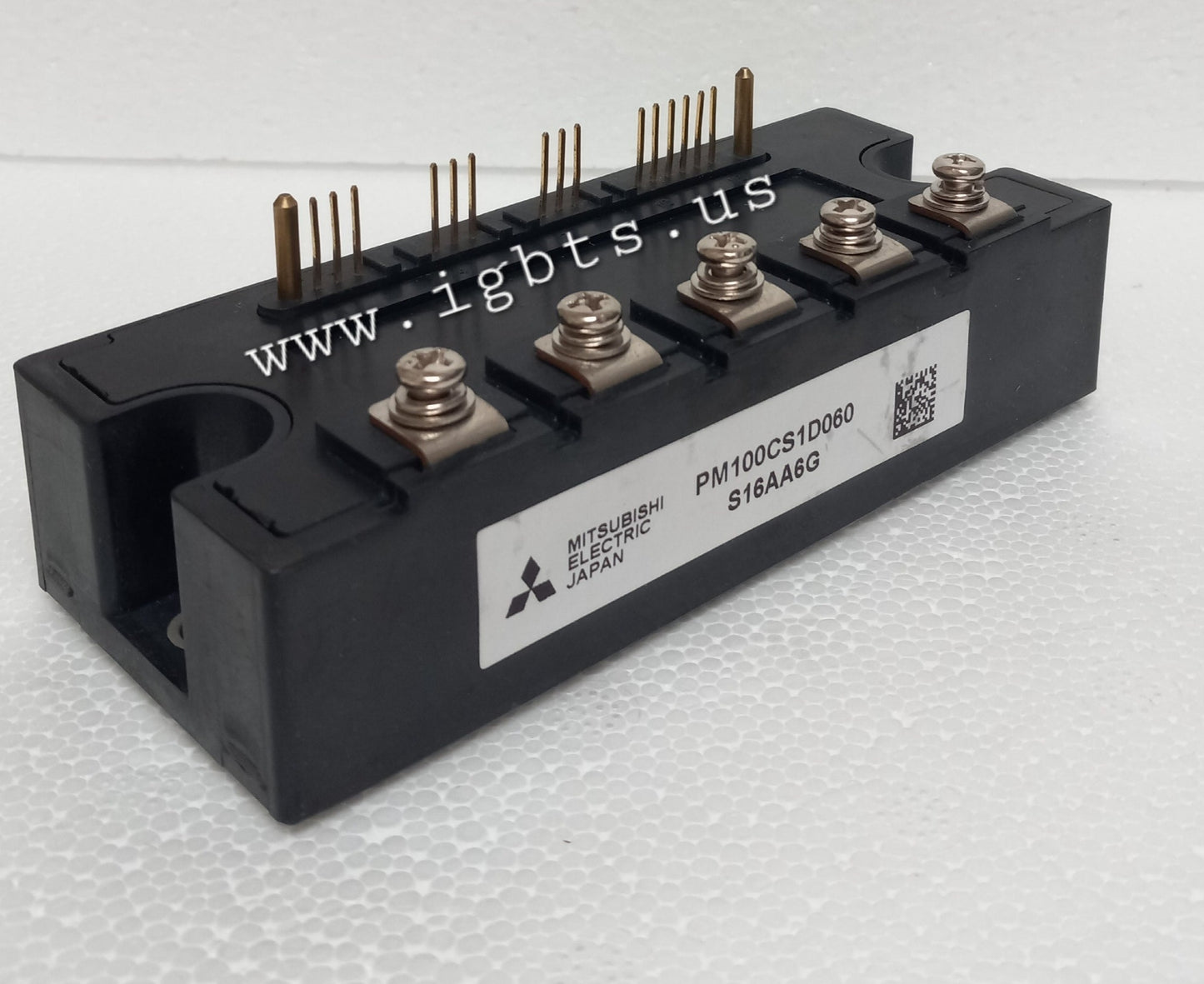

The Mitsubishi PM100CS1D060 is a 100A, 600V Intelligent Power Module combining high-speed IGBT chips with integrated gate drive circuitry, undervoltage lockout, overcurrent protection, and temperature monitoring in a single isolated package. This level of integration reduces external component count, tightens switching performance, and delivers predictable, repeatable fault response—critical in high-cycle industrial environments where unplanned downtime is costly. The PM100CS1D060 is engineered to meet the rigorous demands of modern variable-frequency drives and servo amplifier platforms.

The PM100CS1D060 is widely deployed in AC motor drives, servo controllers, UPS systems, and industrial inverters across manufacturing, HVAC, robotics, and material handling sectors. Its compact footprint and integrated protection suite make it a preferred choice for OEMs designing medium-power three-phase inverter stages where board space, thermal management, and system-level reliability are primary concerns. Field replacement of aging IPM-based drives is also a common application, where the PM100CS1D060 serves as a direct functional substitute.

Quick Reference: PM100CS1D060

Key Features of the PM100CS1D060:

• Integrated gate drive circuitry eliminates the need for external gate resistors and isolated power supplies for each switch
• Built-in overcurrent and short-circuit protection with fault signal output for system-level fault management
• Undervoltage lockout (UVLO) on all control supply rails prevents mis-firing under low-supply conditions
• Integrated thermistor or thermal shutdown circuit enables real-time junction temperature monitoring and over-temperature protection
• Isolated baseplate construction supports direct heatsink mounting for efficient thermal dissipation in high-duty-cycle operation
• Optimized IGBT switching characteristics balance conduction loss and switching loss for efficiency across a wide load range

With a factory lead time of 32 weeks for new production, the PM100CS1D060 presents a genuine procurement challenge for maintenance teams managing unplanned failures or engineers scheduling production builds. Mitsubishi IPMs in the CS1D series have seen tightening allocations as demand from industrial automation and EV-adjacent markets competes with legacy drive replacement needs. Sourcing from a stocking distributor is often the only path to avoid extended equipment downtime or missed production commitments. ATI maintains inventory of hard-to-find and long-lead-time modules precisely to close that gap.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, IPMs, thyristors, diodes, and rectifier modules for immediate fulfillment. The PM100CS1D060 is available now with same-day shipping on orders received before 5PM EST. Volume pricing is available for MRO stocking orders and OEM builds. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss application requirements.
