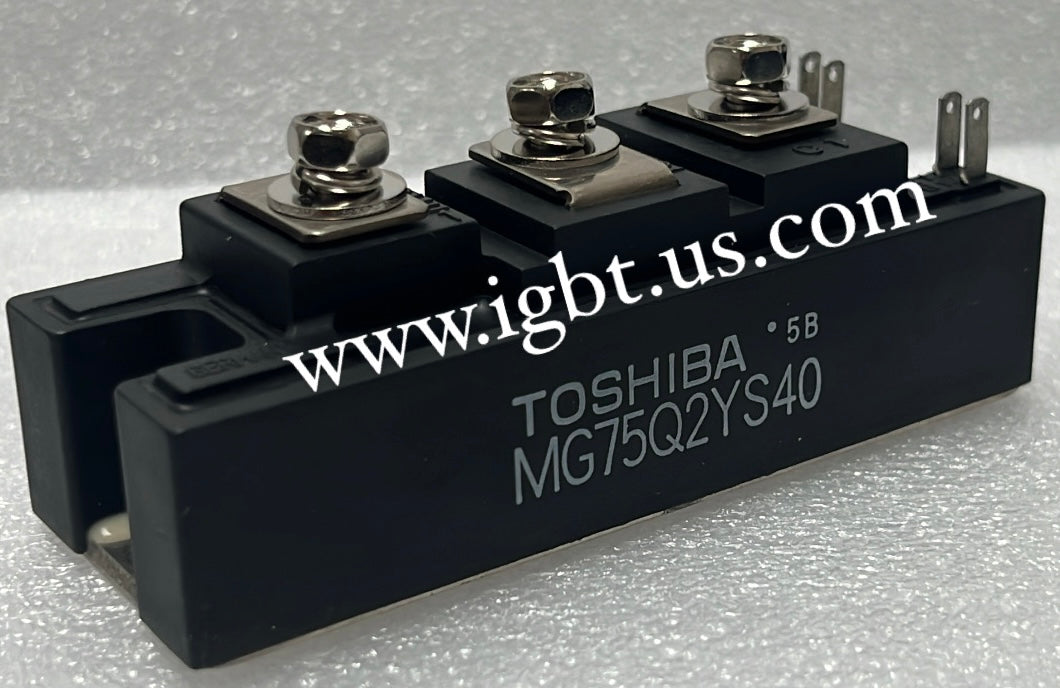

The Toshiba MG75Q2YS40 is a 75A, 600V IGBT power module engineered for demanding switching applications where efficiency, thermal stability, and reliable gate control are non-negotiable. Built to Toshiba's established Q2Y series architecture, this module integrates insulated gate bipolar transistor technology with a robust baseplate construction suited for forced-air or liquid-cooled heatsink mounting. It delivers low saturation voltage and fast switching characteristics that reduce switching losses across a wide operating range, making it a proven performer in high-cycle industrial environments where uptime is critical.

The MG75Q2YS40 is well suited for three-phase motor drives, variable frequency drives (VFDs), industrial inverters, UPS systems, and induction heating equipment operating at 400–480VAC line voltages. Its current and voltage ratings place it squarely in mid-range industrial drive topologies where designers balance switching frequency, conduction loss, and thermal headroom. OEMs and MRO teams sourcing replacements for legacy servo drives, spindle controllers, and power conditioning systems will find this module a direct fit for many existing PCB and busbar layouts.

Quick Reference: MG75Q2YS40

Key Features of the MG75Q2YS40:

• 75A collector current rating with 600V CE voltage for mid-range industrial drive topologies
• Low V_CE(sat) reduces conduction losses and minimizes thermal stress on the module
• Fast switching IGBTs with controlled turn-off characteristics to limit EMI and dV/dt stress on motor windings
• Isolated baseplate construction provides electrical isolation between the switching devices and heatsink, simplifying thermal interface design
• Industry-standard module footprint compatible with common heatsink platforms and gate driver reference designs
• Designed for continuous operation across a wide junction temperature range, supporting high-reliability industrial duty cycles

The MG75Q2YS40 has been discontinued by Toshiba, with new production lead times reaching 99 weeks — effectively making factory orders a non-viable option for most maintenance and procurement timelines. Equipment running legacy drive platforms cannot wait two years for a single replacement module. For engineers managing aging installed bases or procurement teams building critical spares inventory, sourcing from a stocking distributor with verified OEM parts is the only practical path to keeping systems operational without costly downtime or forced redesigns.

ATI Accurate Technology, based in Palmetto, Florida, specializes in exactly these situations — stocking obsolete, hard-to-find, and long-lead-time power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. The MG75Q2YS40 ships same-day on orders received before 5PM EST. Volume pricing is available for MRO stockers and OEM customers. Contact our team directly at 239-734-7566 or sales@igbts.us to confirm availability and lead time today.
