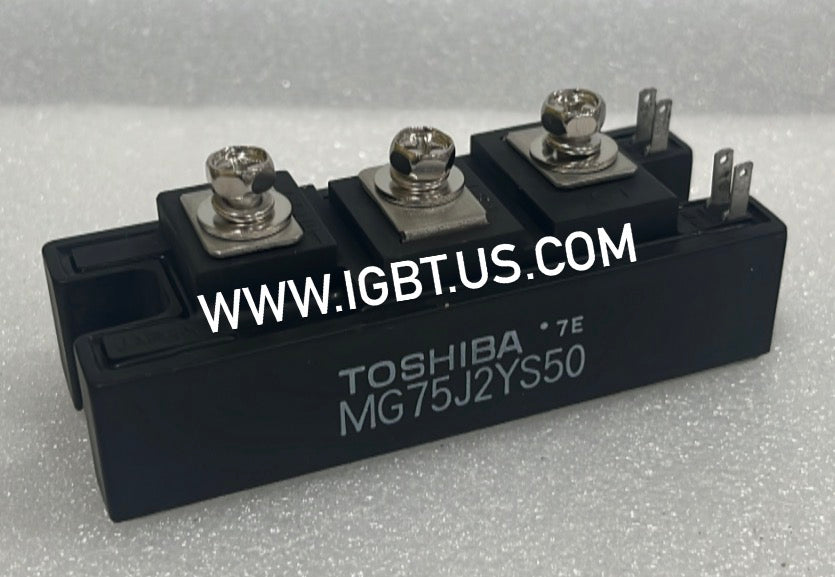

The Toshiba MG75J2YS50 is a 75A, 600V power IGBT module engineered for demanding switching applications where efficiency, thermal stability, and reliable gate drive response are essential. As part of Toshiba's J2-series IGBT lineup, this module integrates fast-switching IGBT chips with freewheeling diodes in a compact, industry-standard package. It is optimized for pulse-width modulation (PWM) operation and delivers low collector-emitter saturation voltage (V_CE(sat)), reducing conduction losses in continuous-duty industrial systems. Its robust construction supports high-temperature operation and the mechanical stresses common in industrial environments.

The MG75J2YS50 is well suited for three-phase AC motor drives, servo amplifiers, UPS systems, induction heating equipment, and DC-DC converters operating in the 400–600V DC bus range. Industrial OEMs and machine builders have relied on this module in CNC machining centers, robotics, conveyor systems, and HVAC variable frequency drives. Its combination of current and voltage ratings makes it a practical choice for mid-power inverter legs and H-bridge configurations where compact module footprints are required alongside dependable switching performance at frequencies up to several kilohertz.

Quick Reference: MG75J2YS50

Key Features of the MG75J2YS50:

• 75A continuous collector current rating with 600V blocking voltage for mid-power inverter applications
• Low V_CE(sat) characteristic minimizes on-state conduction losses in PWM drive circuits
• Integrated freewheeling diodes eliminate the need for external anti-parallel rectifiers in bridge topologies
• Isolated baseplate construction provides electrical isolation between the power circuit and heatsink mounting surface
• Optimized switching speed reduces EMI generation and switching losses at typical drive carrier frequencies
• Industry-standard module footprint simplifies direct replacement in existing PCB and busbar designs

The MG75J2YS50 has been discontinued by Toshiba, and with a new-production lead time of 99 weeks, waiting on factory orders is not a viable strategy for maintenance teams or production lines facing downtime. Equipment using this module — particularly legacy drives and servo systems — may have no direct modern replacement without significant redesign effort. Securing surplus or distributor-held new OEM stock is the only practical near-term solution. Procurement professionals managing MRO or spares inventories for systems built around this module should prioritize stocking before availability tightens further in the open market.

ATI Accurate Technology, based in Palmetto, Florida, specializes in obsolete and long-lead-time power semiconductors including IGBT modules, thyristors, diodes, and rectifier assemblies. The MG75J2YS50 is in stock and available for same-day shipping on orders received before 5PM EST. Volume pricing is available for OEM and MRO buyers. Contact our team directly at 239-734-7566 or sales@igbts.us for pricing, lead time confirmation, and quantity availability.
