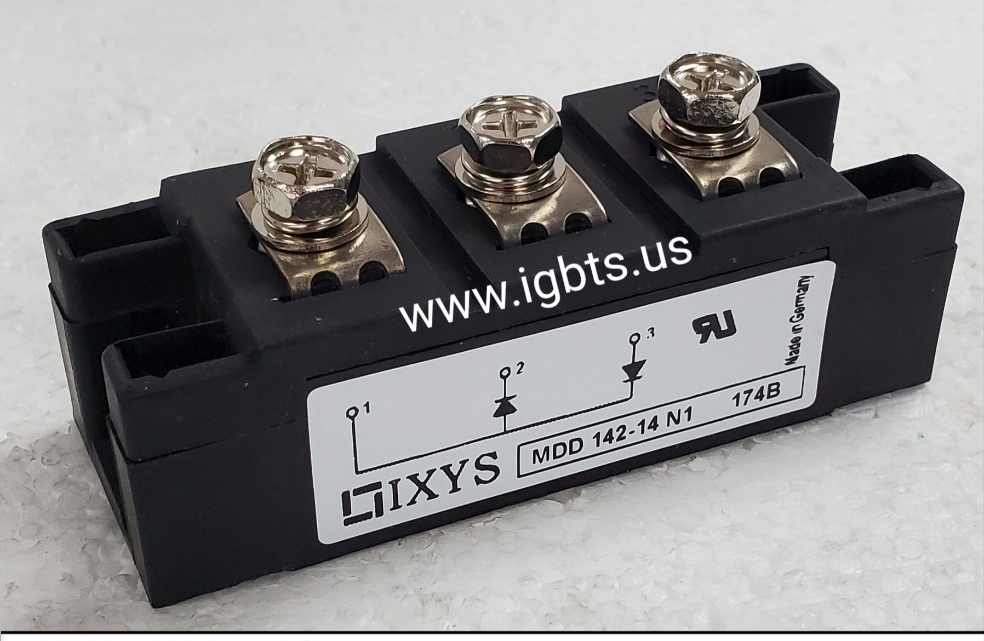

The IXYS MDD142-14N1 is a high-power diode module engineered for robust rectification and freewheeling duty in industrial-grade power electronics systems. Rated at 142A continuous forward current and a 1400V repetitive peak reverse voltage (VRRM), this module integrates high-efficiency silicon diode elements within a compact, isolated baseplate package. Its thermally optimized construction enables direct heatsink mounting, supporting high-density converter designs where reliable, low-loss rectification is critical under sustained load conditions.

The MDD142-14N1 is well suited for a broad range of heavy-duty industrial applications including three-phase AC-DC rectifier bridges, regenerative motor drives, uninterruptible power supplies (UPS), induction heating systems, welding inverters, and DC bus freewheeling circuits. Its high voltage rating makes it particularly valuable in medium-voltage drive architectures where transient overvoltage margins must be maintained. OEM machinery builders and MRO maintenance teams alike rely on this module for replacement and new-build power stage assemblies across demanding industrial environments.

Quick Reference: MDD142-14N1

Key Features of the MDD142-14N1:

• 1400V repetitive peak reverse voltage (VRRM) for high-margin operation in medium-voltage converter topologies
• 142A average forward current (IFAV) rating supports continuous high-load rectification without thermal derating under proper heatsink conditions
• Isolated copper baseplate construction enables direct heatsink mounting with industry-standard bolt patterns for simplified mechanical integration
• Low forward voltage drop (VF) minimizes conduction losses and reduces thermal stress on the module during sustained operation
• High surge current capability (IFSM) provides robustness against line transients and startup inrush events common in industrial drive applications
• Compliant with IXYS quality and reliability standards, ensuring consistent lot-to-lot performance for both OEM production and MRO replacement use

With a standard factory lead time of 26 weeks for new production, the MDD142-14N1 presents a real procurement risk for facilities facing unplanned downtime or time-sensitive build schedules. IXYS diode modules of this current and voltage class are frequently subject to extended lead times and periodic allocation constraints. Sourcing from a specialist distributor with verified stock on hand is the most effective way to avoid costly production delays or extended equipment outages. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power semiconductor modules specifically to address these supply chain challenges.

ATI Accurate Technology is located in Palmetto, Florida, and stocks power semiconductors for immediate shipment to customers across North America and internationally. Orders placed before 5PM EST ship same day. Whether you need a single replacement module or volume quantities for a production run, ATI offers competitive pricing and responsive service. Contact our team directly at 239-734-7566 or email sales@igbts.us for availability confirmation, volume pricing, and same-day shipping on the MDD142-14N1.
