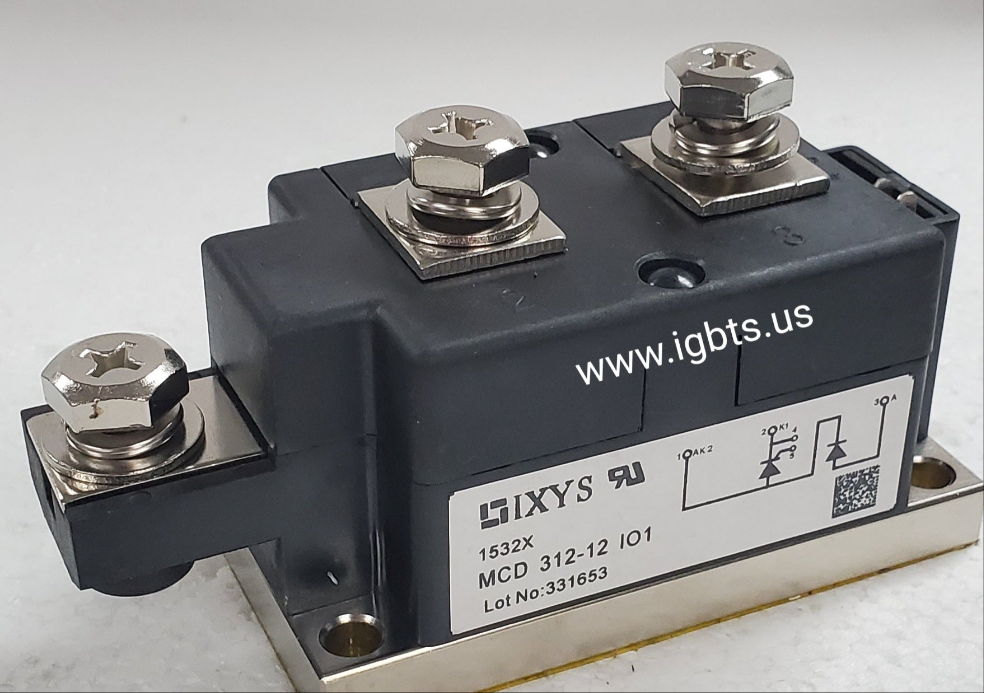

The IXYS MCD312-12IO1 is a high-current thyristor/diode combination power module rated at 300A average on-state current and 1200V repetitive peak off-state voltage (VDRM/VRRM). Housed in an industry-standard dual-in-line power module package, this device integrates a SCR and a power diode in a single thermally efficient assembly, reducing board space and simplifying power stage design. It is optimized for phase-controlled rectification and AC power switching circuits where rugged voltage blocking and predictable gate trigger characteristics are critical to system reliability.

The MCD312-12IO1 is well suited for three-phase and single-phase AC/DC converters, industrial motor soft-starters, DC drive front-ends, resistance welding controllers, and power factor correction stages in heavy industrial equipment. Its combination topology is commonly specified in steel processing, mining, oil and gas infrastructure, crane and hoist drives, and large HVAC systems where high surge current capability and thermal endurance are non-negotiable. OEM machine builders and MRO procurement teams sourcing for installed base equipment will find this module a direct fit for legacy and current-generation power conversion platforms.

Quick Reference: MCD312-12IO1

Key Features of the MCD312-12IO1:

• 300A average on-state current (IT(AV)) with high surge current (ITSM) capability for demanding fault and inrush conditions
• 1200V VDRM/VRRM repetitive peak voltage rating providing robust margin in 690V and 480V bus applications
• Integrated SCR and freewheeling diode in one module, reducing component count and interconnect inductance in the power stage
• Industry-standard dual-in-line module footprint ensuring drop-in compatibility with existing heatsink and busbar hardware
• Low thermal resistance junction-to-case (RthJC) enabling high power density operation with appropriate forced-air or liquid cooling
• Gate trigger current and holding current parameters optimized for reliable firing across the full operating temperature range

With a factory lead time of 26 weeks on new production, the MCD312-12IO1 presents a real procurement challenge for facilities managing unplanned downtime or time-sensitive production schedules. IXYS modules of this class are also frequently encountered in aging equipment where the OEM may no longer actively stock spares. ATI specializes in exactly these scenarios — maintaining inventory of power semiconductors that are long lead-time, hard-to-find, or approaching obsolescence — so engineers and buyers are not left waiting on a production queue when a critical drive goes down.

ATI Accurate Technology is stocked and ready to ship the MCD312-12IO1 from Palmetto, Florida today. Orders placed before 5PM EST ship same day. Whether you need a single emergency replacement or volume quantities for a maintenance storeroom build, ATI offers competitive pricing and responsive service. Contact our team for volume pricing, cross-reference assistance, or technical questions. Call 239-734-7566 or email sales@igbts.us — we are here to keep your equipment running.
