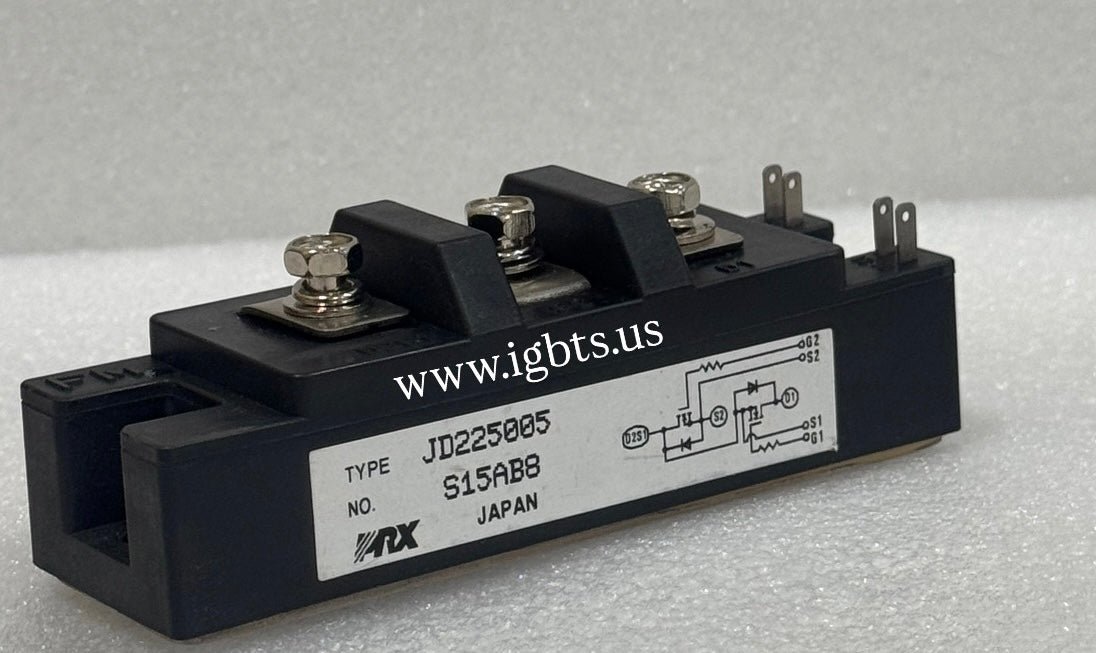

The Powerex JD225005 is a robust IGBT module engineered for high-efficiency switching in industrial power electronics systems. Powerex is a globally recognized manufacturer of power semiconductor devices, and the JD225005 reflects their commitment to reliability in harsh switching environments. This module is well-suited for applications requiring precise gate-controlled switching, low saturation voltage, and thermal stability under continuous load cycles. For maintenance engineers and procurement teams managing aging equipment or critical production lines, the JD225005 represents a dependable, specification-matched replacement or inventory asset.

The JD225005 finds primary application in industrial AC and DC motor drives, inverter-based power supplies, UPS systems, welding equipment, and regenerative braking systems. Its design characteristics make it a strong candidate for medium-to-high power converter stages where switching losses and thermal management are primary design constraints. Industries including manufacturing automation, heavy equipment, rail traction, and energy infrastructure rely on Powerex IGBT modules of this class to maintain uptime in mission-critical power conversion systems. Compatibility with existing gate driver designs makes field replacement straightforward for qualified technicians.

Quick Reference: JD225005

Key Features of the JD225005:

• Gate-controlled IGBT switching topology optimized for low conduction and switching losses in high-frequency inverter stages
• Integrated freewheeling diodes for simplified circuit design and reduced external component count in bridge configurations
• Isolated baseplate construction supporting standard heatsink mounting and reliable thermal interface management
• Powerex-grade silicon process delivering consistent V_CE(sat) performance across operating temperature range
• Designed for compatibility with standard IGBT gate driver circuits, simplifying drop-in replacement in existing power stages
• Robust short-circuit withstand capability supporting protection schemes in industrial drive and converter designs

With a factory lead time of 99 weeks on new production, the JD225005 represents exactly the kind of part that can stall a repair or halt a capital project for nearly two years if not sourced from distributor stock. Powerex IGBT modules in this product family are widely embedded in installed equipment bases across multiple industries, meaning demand for replacement units consistently outpaces new production availability. Procurement professionals managing MRO inventories or engineering teams executing field repairs cannot afford to wait on factory queue times. ATI's in-stock position on the JD225005 provides an immediate solution to a common and costly sourcing problem.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in IGBTs, thyristors, diodes, and rectifier modules — including obsolete, hard-to-find, and long-lead-time devices like the JD225005. Orders placed before 5PM EST ship same day. Whether you need a single replacement unit or volume quantities for a stocking program, ATI offers competitive pricing and responsive support. Call us at 239-734-7566 or email sales@igbts.us to confirm availability and get a quote today.
