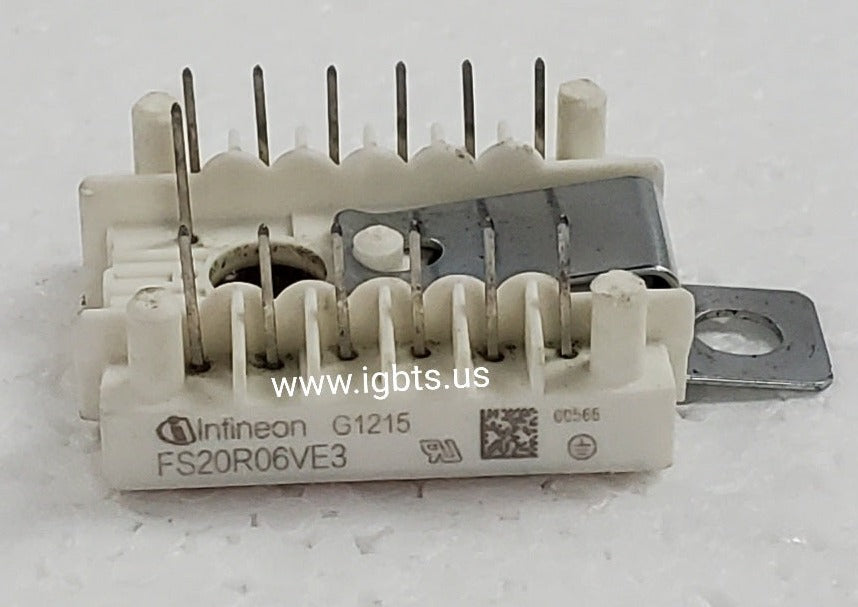

The Infineon FS20R06VE3 is a 600V, 20A IGBT module built on Infineon's proven Trench/Fieldstop IGBT technology with integrated reverse-conduction diodes. Designed for high switching frequency applications, this module delivers low V_CE(sat) and reduced switching losses, making it well-suited for compact power stage designs. Its industry-standard footprint supports straightforward drop-in replacement in existing designs, and the module's isolated baseplate construction simplifies heatsink mounting and thermal management in space-constrained enclosures.

The FS20R06VE3 sees broad deployment across industrial variable frequency drives (VFDs), servo amplifiers, UPS systems, solar inverters, and small-to-medium power conversion equipment. Its 600V blocking capability and 20A continuous current rating position it squarely in the fractional-to-low horsepower motor control range common in HVAC, conveyor systems, pumping stations, and factory automation machinery. OEMs and field service teams maintaining legacy drive platforms frequently specify this module as a direct service replacement to restore equipment to original performance specifications.

Quick Reference: FS20R06VE3

Key Features of the FS20R06VE3:

• 600V collector-emitter voltage (V_CEO) with 20A continuous collector current rating for fractional-to-low horsepower drive stages
• Infineon Trench/Fieldstop IGBT cell structure for reduced V_CE(sat) and lower conduction losses at typical operating currents
• Integrated soft-recovery freewheeling diodes minimize EMI and reduce snubber requirements in high-frequency switching topologies
• Isolated copper baseplate with standard module footprint enables direct heatsink mounting and simplified mechanical integration
• Optimized for switching frequencies up to 20kHz, supporting high-resolution motor control and low-audible-noise drive designs
• Short-circuit withstand capability and integrated gate resistor compatibility improve system robustness in demanding industrial environments

Infineon's current factory lead time for the FS20R06VE3 stands at 99 weeks — nearly two years from order placement to delivery through standard distribution channels. For maintenance teams facing unplanned equipment failures or OEMs managing production schedules, that timeline is operationally unacceptable. Procurement professionals sourcing service parts for legacy drive platforms face an additional challenge: modules at this specification tier are increasingly difficult to locate in distribution as production runs shift toward newer device generations. Having a stocking distributor with physical inventory on hand is the only reliable solution.

ATI Accurate Technology, based in Palmetto, Florida, stocks the FS20R06VE3 as new OEM product ready for same-day shipment on orders placed before 5PM EST. ATI specializes in hard-to-find, long-lead-time, and obsolete power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Volume pricing is available for MRO stockers and OEM production builds. Contact our team today: 239-734-7566 | sales@igbts.us.
