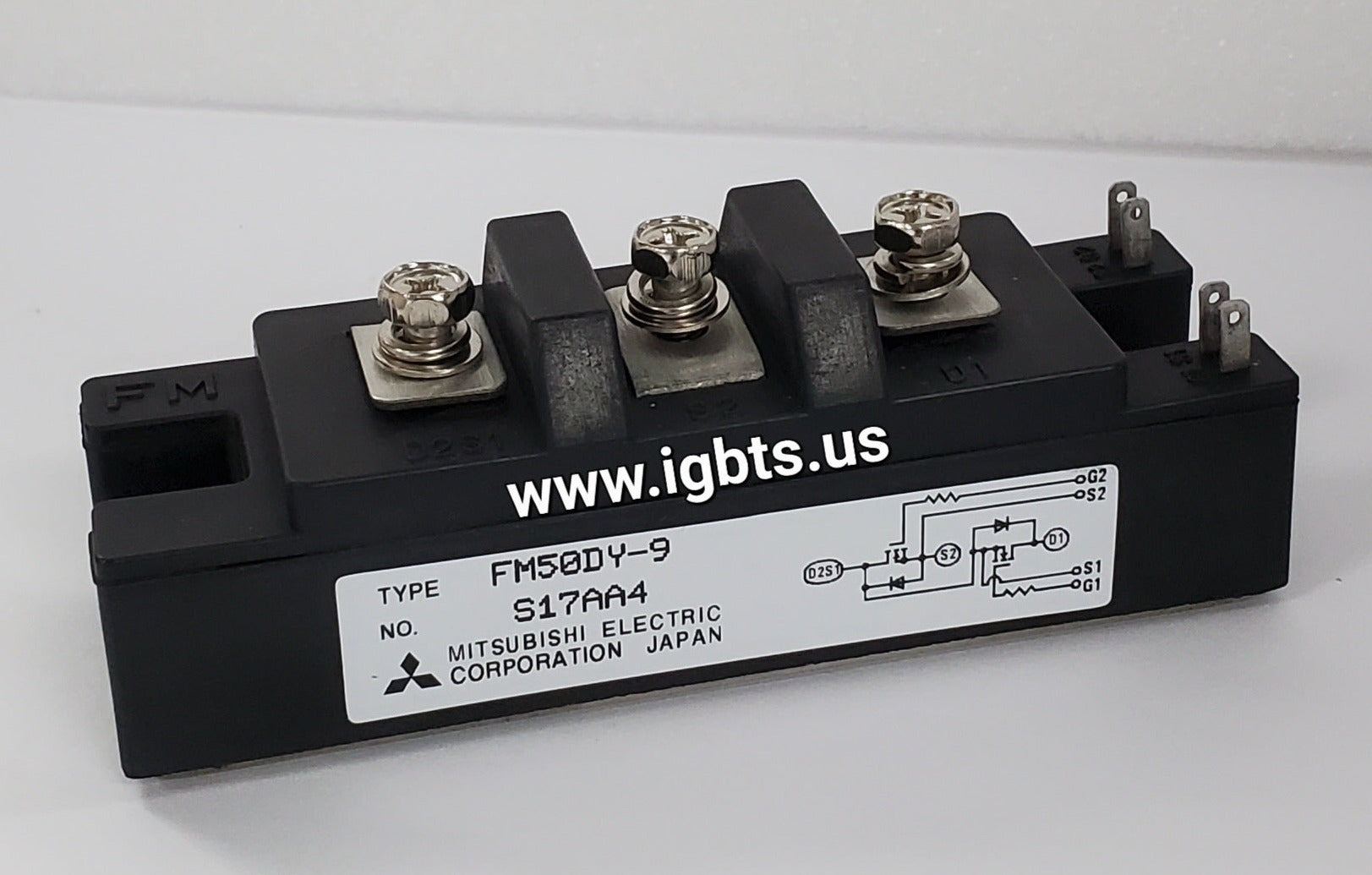

The Mitsubishi FM50DY-9 is a 50A, 900V IGBT module engineered for high-efficiency switching in industrial power electronics. Built to Mitsubishi's proven dual IGBT module topology, the FM50DY-9 delivers low saturation voltage, fast switching characteristics, and integrated freewheeling diodes in a compact package. It is designed for continuous operation in thermally demanding environments, making it a reliable choice for engineers specifying rugged, long-service-life power conversion hardware. This module conforms to industry-standard footprint dimensions, simplifying drop-in replacement in existing designs and legacy equipment.

The FM50DY-9 sees wide deployment across industrial motor drives, servo amplifiers, UPS systems, induction heating equipment, and AC/DC converter stages in factory automation platforms. Its 900V blocking voltage provides adequate margin for 480V/600V AC bus applications where line transients must be absorbed without device failure. The module is also well-suited for welding inverters, elevator drives, and renewable energy power conditioning equipment where switching losses and thermal management are primary design concerns. Maintenance engineers replacing failed modules in legacy drives will find the FM50DY-9 a direct and reliable substitute.

Quick Reference: FM50DY-9

Key Features of the FM50DY-9:

• 50A collector current and 900V VCES rating with sufficient voltage margin for 480V/600V AC line applications
• Dual IGBT configuration with integrated inverse parallel freewheeling diodes for simplified phase-leg implementation
• Low VCE(sat) characteristics reduce conduction losses and thermal load on heatsink assemblies
• Fast, controlled switching transition times minimize EMI generation and switching energy losses in high-frequency PWM operation
• Isolated baseplate construction provides electrical isolation between the power circuit and heatsink, simplifying mechanical mounting and thermal interface design
• Industry-standard module footprint ensures compatibility with existing PCB layouts and drive chassis without mechanical modification

With a current factory lead time of 40 weeks on new production, procurement teams relying solely on direct manufacturer channels face serious exposure to line stoppages and unplanned downtime. The FM50DY-9 is a well-established part found in a large installed base of industrial drive and power conversion equipment, and replacement demand routinely outpaces available supply. Sourcing from a stocking distributor with verified new OEM inventory eliminates lead time risk entirely. ATI Accurate Technology maintains stock of hard-to-find and long-lead-time IGBT modules specifically to support maintenance and production continuity for engineers who cannot wait.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and long-lead-time parts. The FM50DY-9 ships same day on orders received before 5PM EST. Volume pricing is available for MRO stocking orders and OEM quantities. Contact our team at 239-734-7566 or sales@igbts.us to confirm availability and receive a quote.
