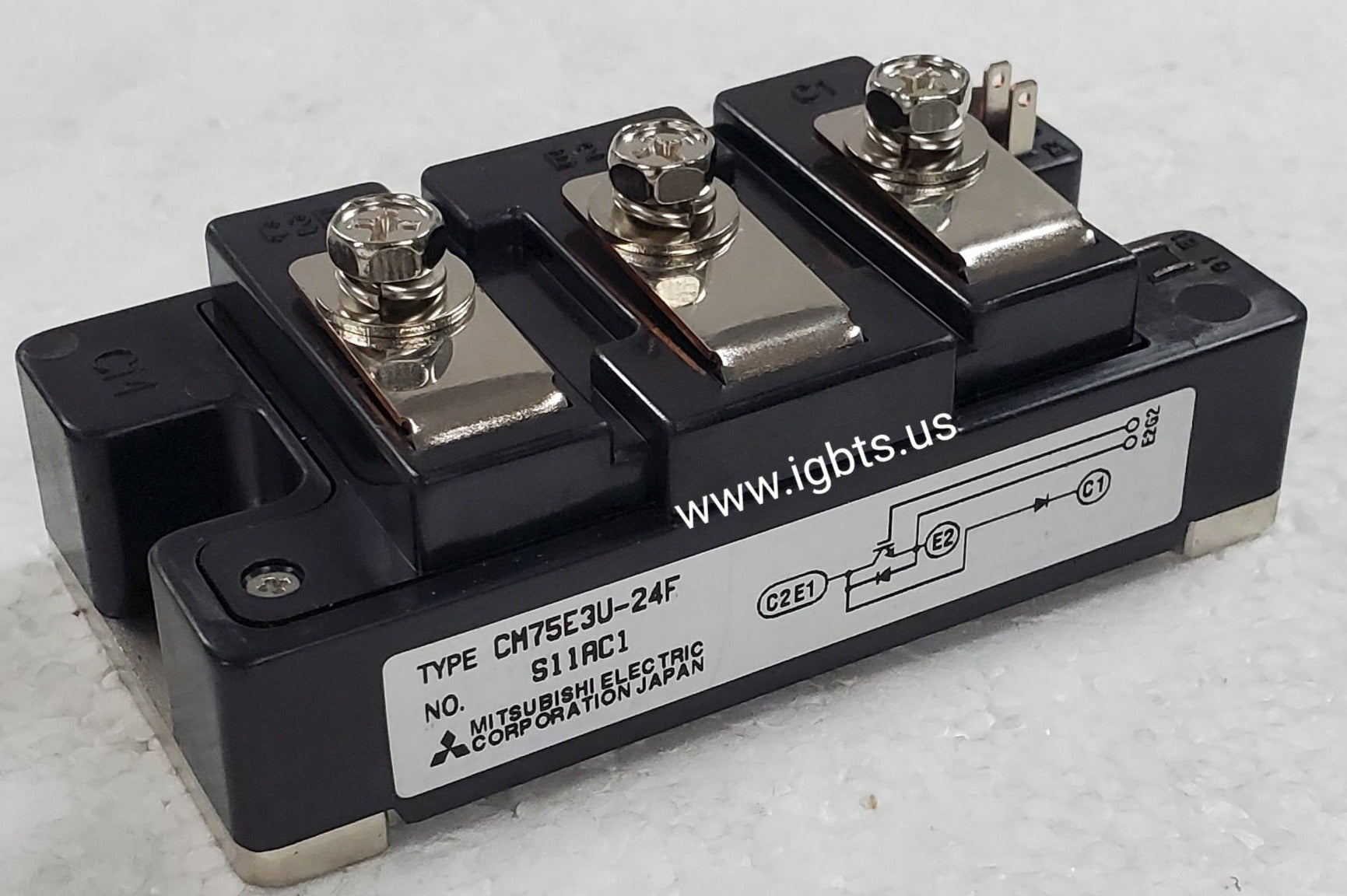

The Mitsubishi CM75E3U-24F is a 75A, 1200V IGBT module engineered for high-frequency switching applications requiring robust thermal performance and consistent gate characteristics. Part of Mitsubishi's proven E3U series, this module integrates IGBT and freewheeling diode elements in a compact, industry-standard package. It is optimized for low switching losses and tight parameter distribution, making it well-suited for applications where efficiency and repeatability are non-negotiable. Engineers specifying this module can expect stable V_CE(sat) characteristics and reliable short-circuit withstand capability under real-world load conditions.

The CM75E3U-24F sees widespread use across industrial AC motor drives, elevator and crane control systems, uninterruptible power supplies (UPS), induction heating equipment, and solar inverters. Its 1200V voltage class makes it appropriate for 480V–690V AC bus architectures, while the 75A current rating fits mid-range drive platforms where footprint and thermal density are carefully balanced. Machine tool OEMs, industrial automation integrators, and power supply designers routinely select this module for new designs and field replacement applications alike.

Quick Reference: CM75E3U-24F

Key Features of the CM75E3U-24F:

• 1200V collector-emitter voltage (V_CEO) with 75A continuous collector current rating
• Low V_CE(sat) for reduced conduction losses across the full operating current range
• Integrated freewheeling diodes with optimized reverse recovery characteristics to minimize switching losses
• Isolated baseplate construction for simplified heatsink mounting and system-level electrical isolation
• Short-circuit withstand capability supporting standard gate drive protection schemes
• Industry-standard E3U module footprint ensuring form-fit-function compatibility with existing PCB and heatsink designs

With a current factory lead time of 99 weeks, procurement teams relying on direct OEM channels face serious exposure when the CM75E3U-24F is needed for production continuity or emergency field repair. Line-down situations cannot wait two years for factory delivery. ATI Accurate Technology maintains independent inventory of long-lead-time and hard-to-find Mitsubishi IGBT modules precisely for this reason. Whether you are supporting an aging drive platform, building service stock, or managing an unplanned outage, sourcing from ATI eliminates the lead-time risk entirely with new OEM product shipped the same day.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, specializing in IGBTs, thyristors, diodes, and rectifier modules. We stock hard-to-find and long-lead-time parts so your operation doesn't wait. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-references, or application support. Call 239-734-7566 or email sales@igbts.us.
