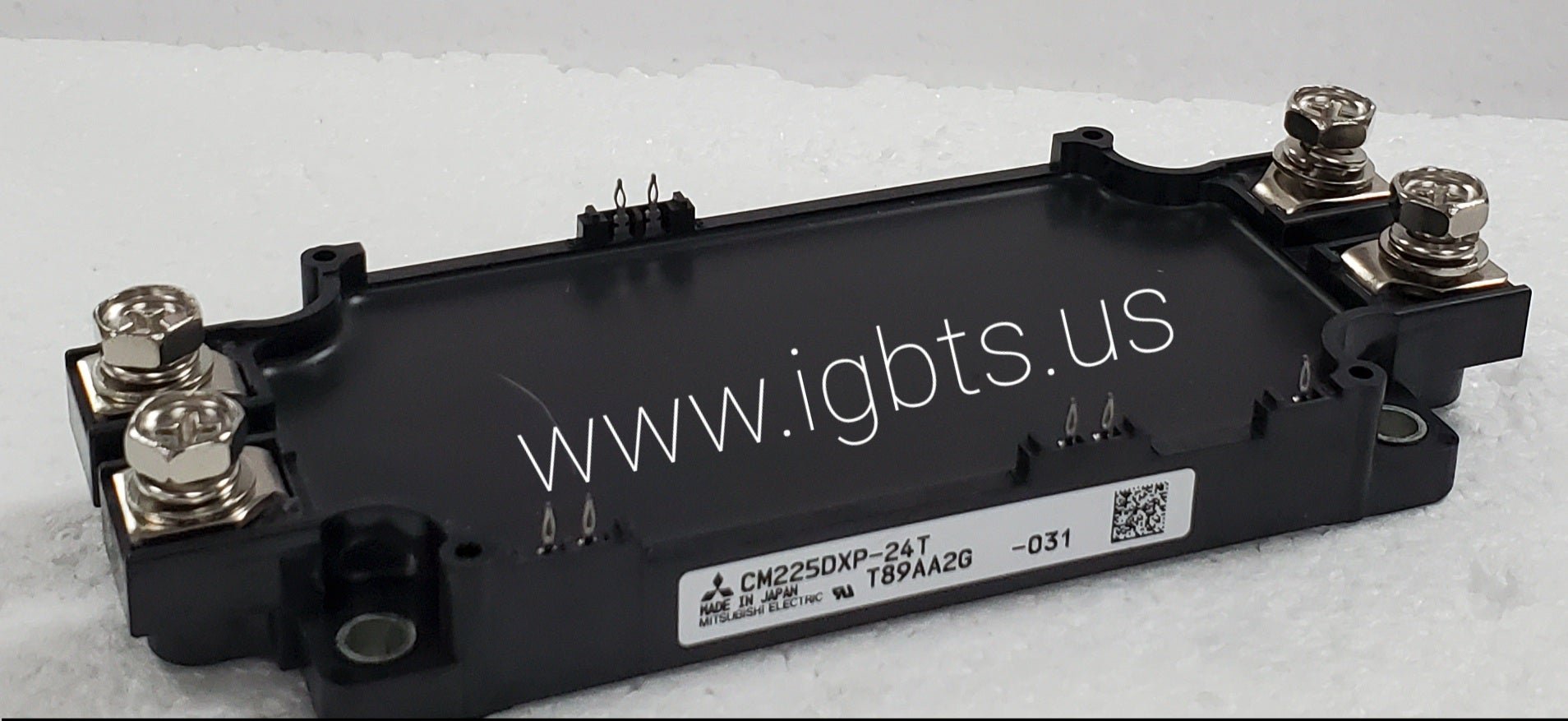

The Mitsubishi CM225DXP-24T is a 225A, 1200V IGBT module built for high-efficiency switching in industrial power electronics systems. Engineered to Mitsubishi's proven DXP platform standards, this module delivers reliable thermal performance, low saturation voltage, and robust short-circuit withstand capability. Its isolated baseplate construction simplifies thermal management in densely packaged drive cabinets and inverter assemblies. For engineers specifying or replacing power semiconductors in high-current, high-voltage applications, the CM225DXP-24T represents a field-proven solution with the electrical characteristics required to meet modern system demands.

The CM225DXP-24T is well suited for AC motor drives, regenerative inverters, UPS systems, induction heating equipment, and industrial servo controllers operating from medium-voltage DC bus architectures. Its 1200V blocking voltage provides adequate margin for 690V AC input systems, while the 225A continuous current rating supports multi-kilowatt motor loads. OEM machinery manufacturers, MRO facilities, and system integrators servicing CNC platforms, conveyor drives, compressor controls, and renewable energy inverters rely on modules in this class to maintain equipment reliability and minimize unplanned downtime.

Quick Reference: CM225DXP-24T

Key Features of the CM225DXP-24T:

• 1200V collector-emitter voltage (VCES) providing robust margin for 690V AC bus applications
• 225A continuous DC collector current rating suitable for high-power industrial drive stages
• Low VCE(sat) characteristics for reduced conduction losses and improved system efficiency
• Integrated freewheeling diodes optimized for fast recovery in PWM inverter topologies
• Isolated copper baseplate construction for direct heatsink mounting and simplified thermal design
• Short-circuit rated design with defined withstand time to support gate drive protection schemes

Mitsubishi's CM225DXP-24T carries a published factory lead time of 99 weeks for new production orders — a timeline that can halt equipment builds, delay repairs, and strand capital projects. For procurement teams managing MRO inventories or engineers sourcing replacement modules for legacy drives and inverters, waiting nearly two years is not an operational option. ATI Accurate Technology maintains stock of hard-to-find and long-lead-time IGBT modules precisely to bridge this gap, ensuring your production lines and service schedules are not held hostage to semiconductor supply chain constraints.

ATI Accurate Technology is a power semiconductor distributor located in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules for industrial customers nationwide. Orders placed before 5PM EST ship same day. Contact our team for volume pricing, cross-reference assistance, or urgent procurement support. Call 239-734-7566 or email sales@igbts.us — we're ready to help you keep your systems running.
