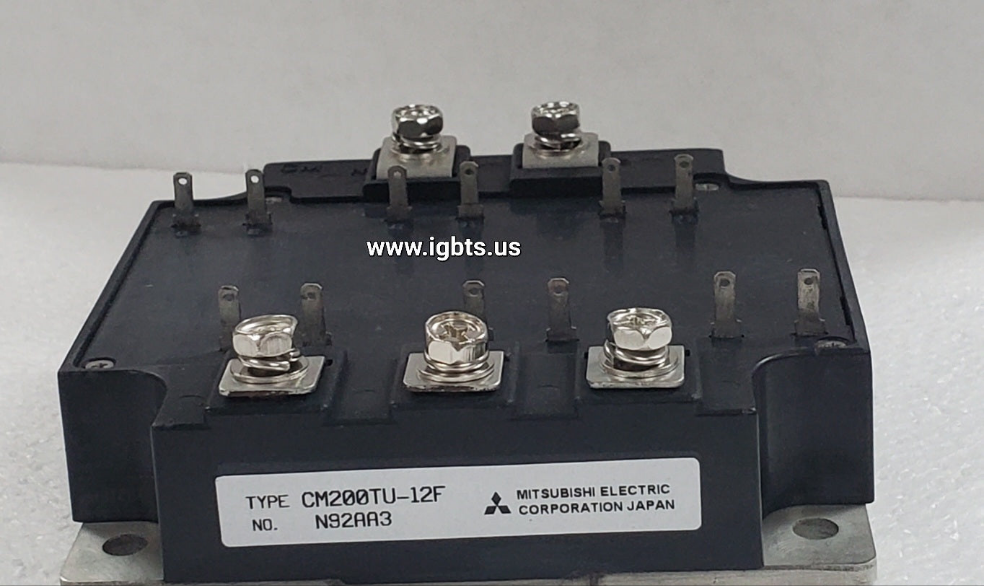

The Mitsubishi CM200TU-12F is a 1200V, 200A IGBT module engineered for demanding power conversion and motor drive applications. Built on Mitsubishi's proven 6th-generation IGBT trench-gate technology, the CM200TU-12F delivers low collector-emitter saturation voltage (V_CE(sat)), reduced switching losses, and high thermal cycling reliability. The module integrates an anti-parallel freewheeling diode optimized for soft recovery, making it well-suited for high-frequency PWM operation. Its isolated copper baseplate and standard footprint simplify drop-in replacement in existing designs and provide excellent heat dissipation through forced-air or liquid-cooled heatsink configurations.

The CM200TU-12F is widely deployed across heavy industrial and commercial power electronics platforms. Typical applications include AC and DC variable-speed motor drives for pumps, fans, compressors, and CNC machinery, as well as medium-power inverters, regenerative converters, induction heating equipment, and uninterruptible power supplies (UPS). Its 1200V blocking voltage and 200A continuous current rating position it for three-phase inverter bridge legs operating from standard 480V–690V industrial AC supplies. The module is also found in welding power supplies, rail traction auxiliaries, and renewable energy inverter stages where high switching efficiency and long service life are paramount.

Quick Reference: CM200TU-12F

Key Features of the CM200TU-12F:

• 1200V collector-emitter breakdown voltage (V_CEO) with 200A continuous collector current rating for high-power inverter bridge applications
• Low V_CE(sat) characteristic reduces conduction losses, improving system efficiency across the full load range
• Integrated optimized freewheeling diode with soft-recovery profile minimizes voltage spikes and EMI during high-frequency PWM switching
• Isolated copper baseplate construction provides superior thermal conductivity and electrical isolation, compatible with standard heatsink mounting
• Industry-standard module footprint enables direct cross-replacement in legacy drive platforms without PCB or mechanical redesign
• Rated for high short-circuit withstand capability, supporting robust gate-drive protection schemes in fault-tolerant system designs

With factory lead times on new CM200TU-12F production currently running at 32 weeks, procurement teams and plant maintenance engineers face significant exposure when a drive failure occurs. This module appears across legacy and current-production variable-speed drive platforms from major OEMs, meaning field failures cannot always wait on a production queue. Carrying buffer stock or partnering with a distributor who maintains ready inventory is the only reliable strategy for avoiding extended equipment downtime. Whether you need a single unit for emergency repair or a blanket order to support an ongoing maintenance program, in-stock availability is non-negotiable.

ATI Accurate Technology, based in Palmetto, Florida, specializes in hard-to-find and long-lead-time power semiconductors including the CM200TU-12F. Orders placed before 5PM EST ship same day. Volume pricing is available for MRO and OEM procurement. Contact our power electronics specialists at 239-734-7566 or sales@igbts.us to confirm stock, request a quote, or discuss your application requirements.
