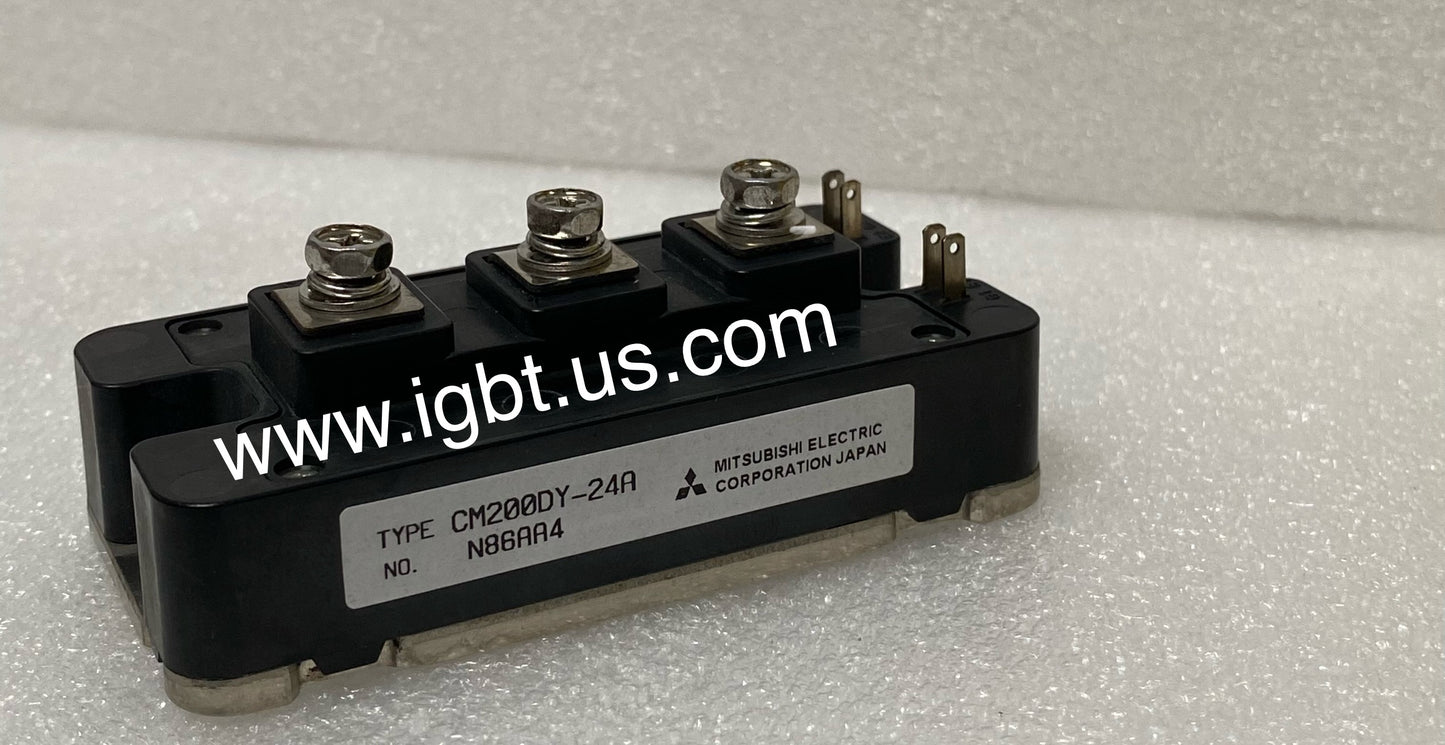

The Mitsubishi CM200DY-24A is a dual IGBT module rated at 200A continuous collector current and 1200V collector-emitter voltage, packaged in the industry-standard CM series footprint. Built on Mitsubishi's mature IGBT technology, the -24A suffix designates the 1200V blocking voltage class. The module integrates two discrete IGBT chips with co-packaged freewheeling diodes, enabling half-bridge or chopper circuit configurations without external diodes. Low V_CE(sat) and controlled switching characteristics make this module well-suited for high-efficiency, high-reliability power conversion stages operating at switching frequencies typical of industrial drive applications.

The CM200DY-24A sees wide deployment across industrial and commercial power electronics platforms. Primary applications include three-phase AC motor drives for pumps, compressors, fans, and CNC spindle systems, where its 1200V rating provides adequate margin for 480V AC bus topologies. It is also used in medium-power UPS inverter stages, induction heating power supplies, welding inverters, and traction auxiliary converters. The module's proven reliability and standardized footprint make it a direct fit for OEM replacement on legacy drive platforms from manufacturers such as Yaskawa, ABB, Siemens, and Mitsubishi's own MELSERVO and FREQROL product lines.

Quick Reference: CM200DY-24A

Key Features of the CM200DY-24A:

• 1200V V_CES rating provides robust voltage margin for 480V/600V AC three-phase drive applications
• 200A continuous collector current with high peak current capability for demanding load transients
• Dual (2-in-1) IGBT configuration with integrated freewheeling diodes for simplified half-bridge circuit assembly
• Low collector-emitter saturation voltage (V_CE(sat)) minimizes conduction losses and thermal dissipation at full load
• Isolated copper baseplate for direct heatsink mounting, ensuring low thermal resistance and long operational life
• Industry-standard CM series module footprint enables drop-in replacement on existing drive platforms without mechanical redesign

With a current factory lead time of 99 weeks, sourcing the CM200DY-24A through standard distribution channels is not a viable option for most maintenance and production schedules. Unplanned downtime on a motor drive or inverter cannot wait two years for OEM replenishment. ATI specializes in exactly this procurement challenge — maintaining inventory of hard-to-find, long-lead-time, and effectively obsolete IGBT modules so that engineers and buyers can restore equipment quickly. Our stock is sourced through verified channels and sold as new OEM product, giving you confidence in part quality and authenticity.

ATI Accurate Technology is based in Palmetto, Florida and stocks the CM200DY-24A for same-day shipping on orders placed before 5PM EST. Whether you need a single replacement module or volume quantities for a maintenance spares program, our team is ready to assist. Contact us at 239-734-7566 or sales@igbts.us for pricing, volume discounts, and lead time confirmation. We support MRO buyers, OEM procurement teams, and field service engineers across North America.
