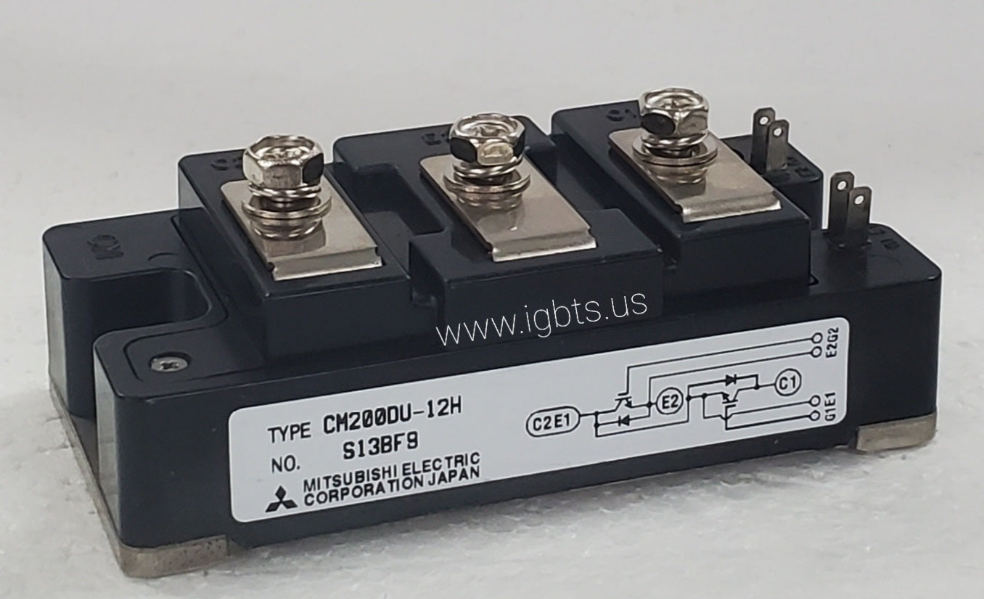

The CM200DU-12H is a 1200V, 200A dual IGBT module manufactured by Mitsubishi Electric, configured in a two-switch (chopper/boost) topology suitable for demanding power conversion applications. Built on Mitsubishi's mature IGBT4 technology platform, this module delivers low saturation voltage (V_CE(sat)), soft recovery freewheeling diodes, and robust short-circuit withstand capability. The industry-standard package footprint simplifies direct replacement in existing designs without PCB modification, making the CM200DU-12H a reliable choice for both OEM production builds and field maintenance stock.

The CM200DU-12H sees widespread deployment across industrial and commercial power electronics. Typical applications include AC variable frequency drives (VFDs) for motor speed control, regenerative braking circuits, uninterruptible power supplies (UPS), induction heating systems, solar inverters, and active front-end rectifiers. Its 1200V blocking voltage and 200A continuous collector current rating provide sufficient design margin for 480V/600V three-phase bus architectures commonly found in manufacturing, oil and gas, water treatment, and HVAC infrastructure.

Quick Reference: CM200DU-12H

Key Features of the CM200DU-12H:

• 1200V V_CES and 200A I_C rating with a peak collector current (I_CP) of 400A for transient robustness in fault-prone industrial environments
• Low collector-emitter saturation voltage (V_CE(sat)) reduces conduction losses and lowers heat sink thermal requirements at rated load
• Integrated co-pack freewheeling diodes with soft recovery characteristics minimize voltage overshoot and EMI in high-frequency switching topologies
• 10µs short-circuit withstand rating provides gate-drive circuitry adequate response time for fault protection without device failure
• Industry-standard isolated base plate package enables direct bolt-down mounting to standard heat sinks with optimized thermal interface
• Wide gate voltage range compatible with standard ±15V gate drive designs; internal NTC thermistor available for junction temperature monitoring

With a factory lead time of 35 weeks on new production orders, procurement of the CM200DU-12H through standard distribution channels can create serious exposure for maintenance operations and production schedules. Equipment downtime waiting on long-lead IGBT modules is a costly reality across industries relying on legacy drive platforms. ATI Accurate Technology maintains strategic inventory of hard-to-find and long-lead-time Mitsubishi IGBT modules specifically to close this gap — providing verified new OEM parts when and where they are needed, without the extended wait.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders received before 5PM EST. Whether you need a single replacement unit or volume stock for a maintenance program, our team is ready to assist. Contact us at 239-734-7566 or sales@igbts.us for pricing, availability confirmation, and volume discount inquiries. We support procurement professionals and engineers who cannot afford to wait on factory lead times.
