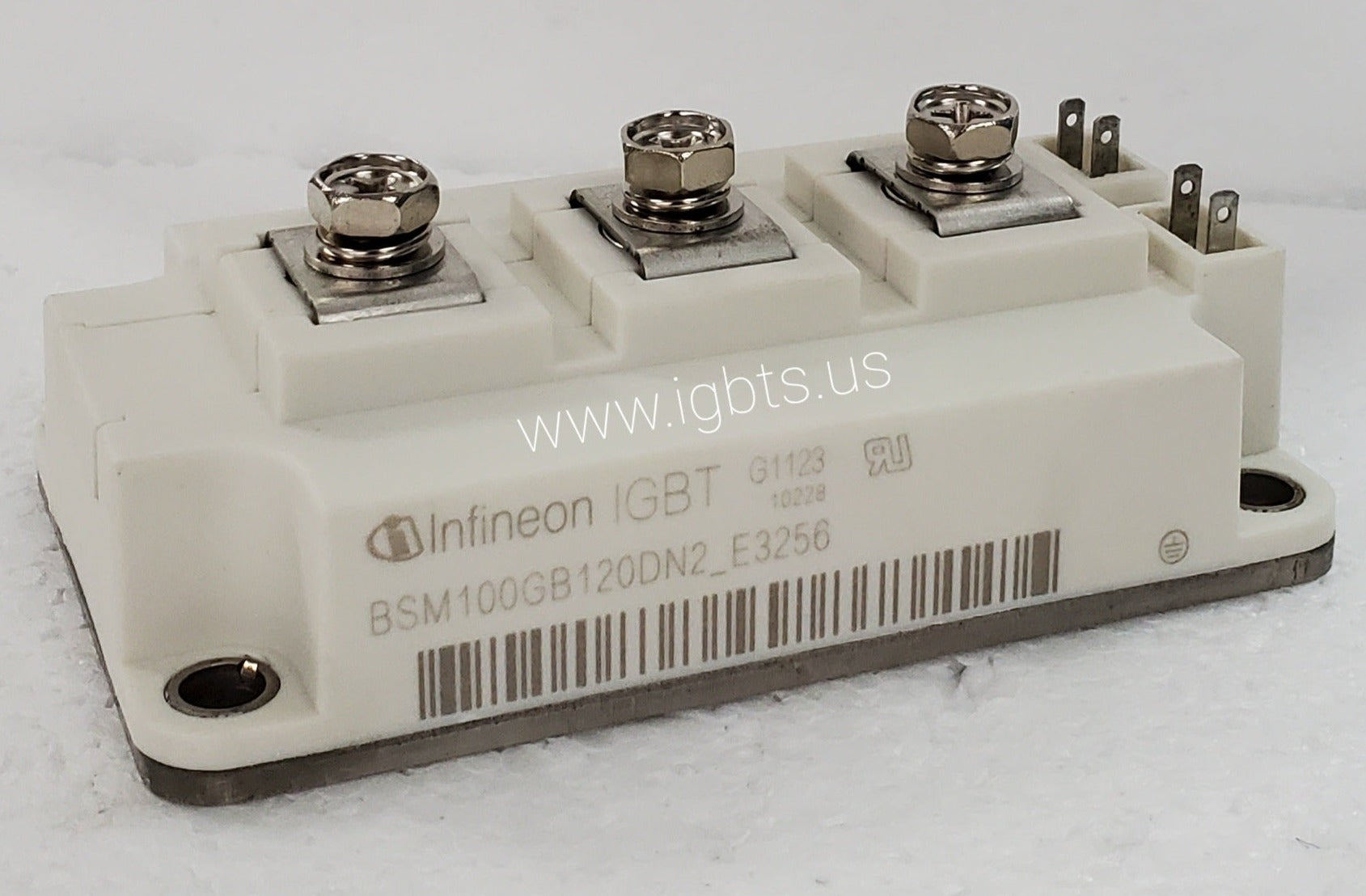

The Infineon BSM100GB120DN2_E3256 is a 1200V, 100A dual IGBT module housed in the industry-standard ECONODUAL 2 package. Built on Infineon's proven NPT (Non-Punch-Through) IGBT chip technology, this module integrates co-pack fast recovery freewheeling diodes optimized for low reverse recovery losses. The result is a thermally efficient, robust switching device engineered for high-frequency PWM operation in demanding industrial environments. Its low collector-emitter saturation voltage (V_CE(sat)) minimizes conduction losses, making it a preferred choice where thermal management and energy efficiency are paramount.

The BSM100GB120DN2_E3256 is widely deployed across industrial motor drives, servo amplifiers, and variable frequency drives (VFDs) controlling pumps, compressors, fans, and CNC machinery. It is equally suited for UPS systems, solar inverters, induction heating equipment, and traction applications where switching reliability at elevated bus voltages is non-negotiable. The ECONODUAL 2 footprint allows straightforward integration into existing PCB and heatsink designs, reducing redesign overhead during maintenance replacements or system upgrades. Engineers specify this module for its balance of switching speed, ruggedness, and thermal cycling endurance.

Quick Reference: BSM100GB120DN2_E3256

Key Features of the BSM100GB120DN2_E3256:

• 1200V collector-emitter breakdown voltage (V_CES) suitable for 690V AC bus applications with adequate margin
• 100A continuous collector current rating supporting mid-range drive and inverter power stages
• Integrated co-pack fast recovery anti-parallel freewheeling diodes with optimized reverse recovery characteristics
• Low V_CE(sat) NPT IGBT technology reducing steady-state conduction losses and overall module heat dissipation
• ECONODUAL 2 package with industry-standard mounting footprint enabling drop-in replacement compatibility
• Isolated copper baseplate construction for reliable thermal interface to heatsink or cold plate assemblies

With a factory lead time of 99 weeks for new production, the BSM100GB120DN2_E3256 presents a serious procurement challenge for maintenance teams managing unplanned downtime or executing planned overhauls. Extended lead times at this level — nearly two years — mean that waiting on a factory order is simply not a viable option when production lines or critical infrastructure are at stake. ATI specializes in exactly this scenario, maintaining inventory of long-lead-time, hard-to-find, and effectively obsolete Infineon IGBT modules to support customers when the standard supply chain falls short. Our stock is sourced as new OEM product, ensuring full specification compliance.

ATI Accurate Technology is located in Palmetto, Florida, and stocks IGBT modules, thyristors, diodes, and rectifier assemblies for same-day shipment on orders placed before 5PM EST. Whether you need a single replacement module or volume quantities for a stocking program, our team is ready to assist with competitive pricing and fast fulfillment. Contact us at 239-734-7566 or sales@igbts.us for availability confirmation, volume pricing, and same-day shipping quotes.
