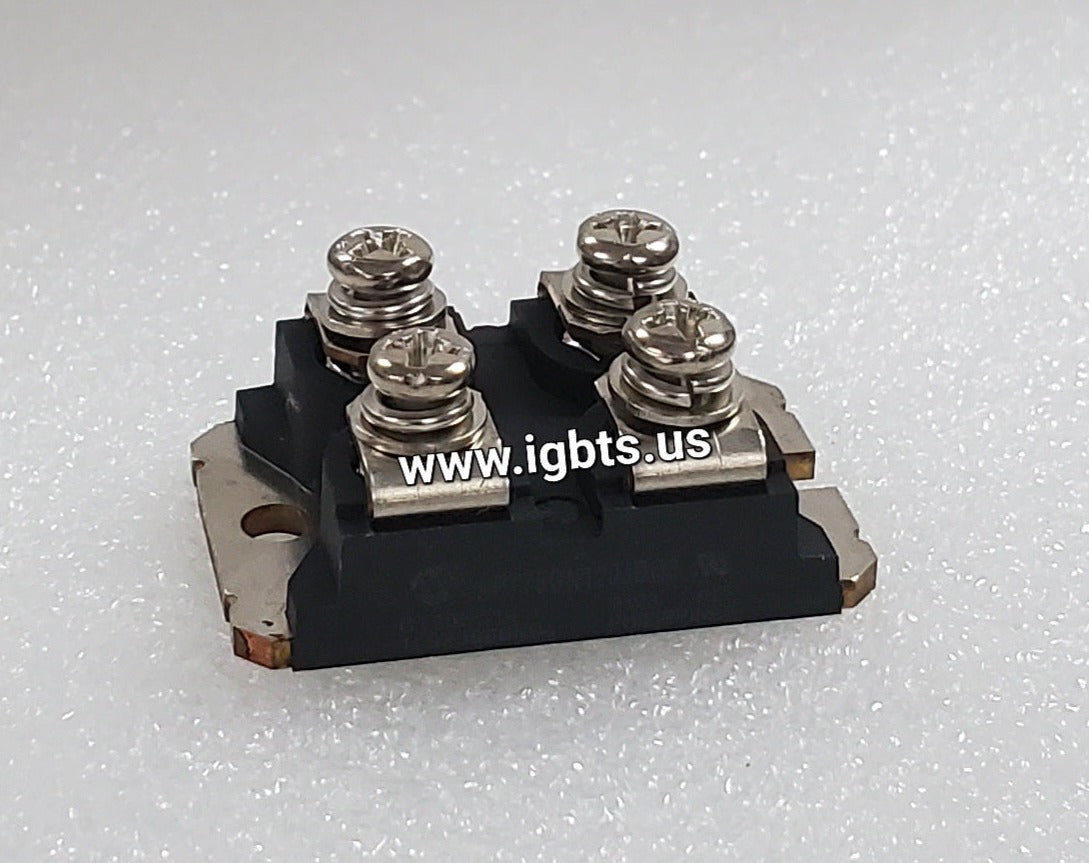

The APT75GN120JDQ3 is a Microsemi IGBT power semiconductor module rated for 75A continuous collector current and 1200V blocking voltage. Configured in Microsemi's JDQ3 package format, this module integrates insulated gate bipolar transistor technology to deliver low conduction losses, fast switching transitions, and high reliability under repetitive load cycles. Its 1200V rating provides the necessary voltage headroom for industrial AC line applications, while the 75A current rating supports medium-to-high power drive topologies. The module is suitable for engineers designing or maintaining systems that demand consistent performance across wide temperature ranges and variable load profiles.

The APT75GN120JDQ3 sees widespread deployment in AC variable frequency drives (VFDs), regenerative motor control systems, UPS inverters, induction heating equipment, and solar or wind power conversion stages. Its combination of voltage and current ratings makes it a practical choice for three-phase inverter legs and chopper circuits in industrial automation, heavy machinery, and energy infrastructure. OEM equipment manufacturers and MRO procurement teams sourcing replacements for aging drive platforms will find this module directly compatible with a broad range of installed Microsemi-based power stages still operating in the field.

Quick Reference: APT75GN120JDQ3

Key Features of the APT75GN120JDQ3:

• 1200V collector-emitter breakdown voltage (VCES) for robust margin in 480V–690V AC bus applications
• 75A continuous collector current rating suitable for medium-power inverter and drive topologies
• Low VCE(sat) minimizes on-state conduction losses and reduces thermal stress at the module level
• Integrated co-pack freewheeling diodes provide optimized reverse recovery for PWM switching circuits
• JDQ3 isolated baseplate package simplifies heatsink mounting and electrical isolation in multi-module assemblies
• Designed for high switching frequency operation, supporting tight current regulation in precision drive applications

Microsemi's APT75GN120JDQ3 carries a 99-week factory lead time for new production orders — a timeline that can cripple maintenance operations and halt production lines when a module fails unexpectedly. Procurement teams managing critical infrastructure or legacy Microsemi-based drive systems cannot afford to wait nearly two years for a replacement. Whether you are managing a planned maintenance inventory, executing an emergency repair, or building safety stock against future failures, sourcing from a stocking distributor with verified OEM inventory is the only viable path to keeping operations running on schedule.

ATI Accurate Technology is a power semiconductor specialist located in Palmetto, FL, with the APT75GN120JDQ3 in stock and available for same-day shipping on orders placed before 5PM EST. We supply maintenance engineers and procurement professionals with hard-to-find, long-lead-time, and obsolete IGBT modules and power semiconductors. Volume pricing is available. Contact us at 239-734-7566 or sales@igbts.us to confirm availability, request a quote, or discuss your stocking requirements.
