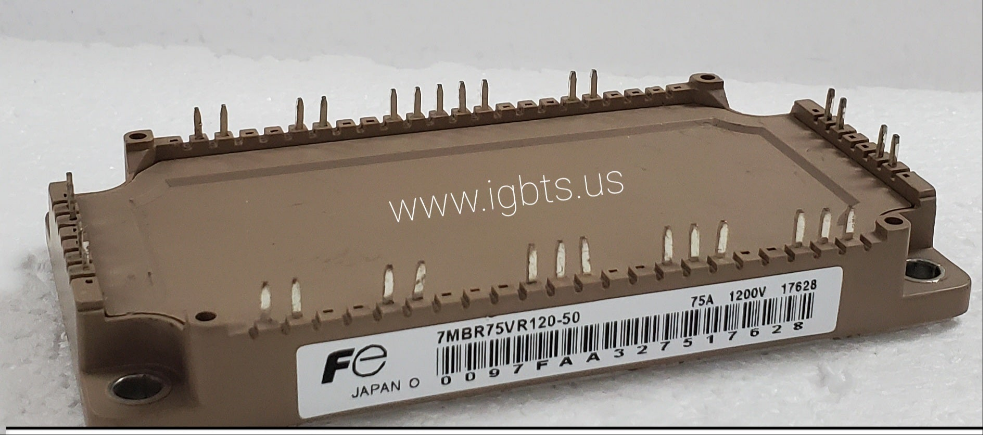

The 7MBR75VR120-50 is a Fuji Electric V-series 7-pack IGBT module combining six switching IGBTs with an additional brake IGBT in a single housing, rated at 75 amperes and 1200 volts. This configuration makes it a highly integrated solution for three-phase inverter topologies, reducing component count and simplifying drive circuit design. The V-series platform is recognized for its low saturation voltage, fast switching characteristics, and built-in freewheeling diodes, all contributing to reduced system losses and improved thermal performance in demanding industrial environments.

The 7MBR75VR120-50 is widely deployed in variable frequency drives (VFDs), AC servo drives, uninterruptible power supplies (UPS), solar inverters, and general-purpose industrial power converters. Its 7-pack topology is especially popular in compact drive designs where board space is at a premium and thermal management is critical. The integrated brake IGBT enables dynamic braking without external chopper modules, streamlining system architecture for elevator controls, crane drives, and regenerative braking applications.

Quick Reference: 7MBR75VR120-50

Key Features:

• 75A continuous collector current with 1200V blocking voltage for robust power handling
• 7-pack configuration integrates three-phase bridge and brake chopper in one module
• Fuji V-series low VCE(sat) technology minimizes conduction losses and heat generation
• Built-in high-speed freewheeling diodes optimized for hard-switching inverter topologies
• Compact isolated base plate design simplifies heatsink mounting and thermal interface
• Compatible with standard Fuji gate driver ICs for straightforward retrofit and new designs

Finding 75A 1200V 7-pack IGBT modules can be challenging due to long lead times and limited distributor stock, particularly for V-series Fuji parts used in legacy and current-generation drives. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time power semiconductors including the 7MBR75VR120-50, supporting MRO buyers, OEM production lines, and service centers that cannot afford extended downtime waiting on factory lead times.

ATI Accurate Technology is your trusted source for the 7MBR75VR120-50 and a broad range of Fuji IGBT modules, thyristors, diodes, and rectifier assemblies. Located in Palmetto, Florida, ATI ships same-day on orders placed before 5PM EST. Contact our power semiconductor specialists at 239-734-7566 or email sales@igbts.us to confirm availability, request a quote, or place your order today.
