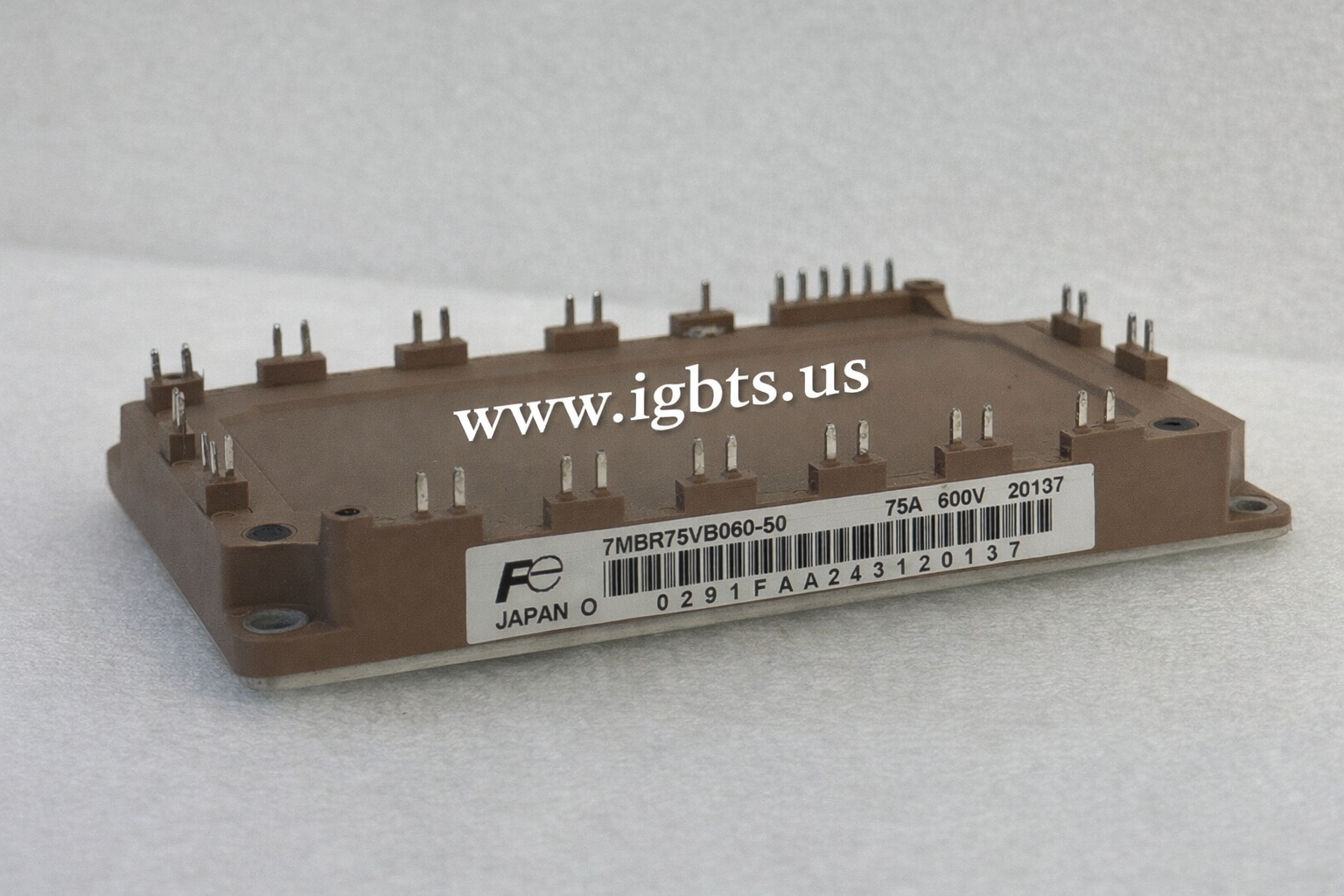

The Fuji Electric 7MBR75VB060-50 is a 75A, 600V IGBT power module engineered for demanding industrial power conversion applications. Built on Fuji's proven VB-series platform, this module integrates insulated gate bipolar transistors with freewheeling diodes in a compact, isolated baseplate package. It delivers low saturation voltage, fast switching characteristics, and robust short-circuit withstand capability — performance attributes that made it a preferred choice in variable-speed drives, servo amplifiers, and industrial inverter platforms throughout its production lifecycle.

The 7MBR75VB060-50 sees broad deployment in AC motor drives, CNC machine tool servo systems, elevator inverters, UPS systems, and industrial welding equipment. Its 600V blocking voltage and 75A continuous collector current make it well-suited for 380–480VAC three-phase input topologies. OEM equipment manufacturers and MRO maintenance teams alike rely on this module in legacy systems where board-level replacement is preferable to full drive replacement — particularly where field-proven reliability and minimized downtime are the overriding priorities.

Quick Reference: 7MBR75VB060-50

Key Features of the 7MBR75VB060-50:

• 75A continuous collector current with 600V collector-emitter voltage (VCES) rating for 480VAC drive topologies
• Low VCE(sat) reduces conduction losses and thermal stress in continuous-duty inverter operation
• Integrated freewheeling diodes eliminate external recovery diode requirements and simplify gate drive design
• Isolated baseplate construction provides electrical isolation between the power circuit and heatsink mounting surface
• Fast switching speed supports high carrier frequency PWM operation with reduced switching losses
• Short-circuit withstand capability provides protection margin under fault conditions, supporting reliable overcurrent shutdown sequences

The 7MBR75VB060-50 is officially obsolete, and Fuji Electric's current factory lead time stands at 99 weeks for any new production — effectively unavailable through standard factory channels for any near-term requirement. Engineers managing legacy drive systems or procurement teams supporting repair depots cannot afford to wait. Distributor-held inventory is the only reliable source for this module, and every week of delay translates directly into extended equipment downtime or stalled production. Verifying availability with a stocking distributor before committing to a repair strategy is critical when working with parts at this stage of their lifecycle.

ATI Accurate Technology, based in Palmetto, Florida, stocks the 7MBR75VB060-50 and specializes in obsolete, hard-to-find, and long-lead-time power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day. Volume pricing is available for MRO stockers, repair facilities, and OEM purchasing teams. Contact ATI at 239-734-7566 or sales@igbts.us to confirm availability and request a quote.
