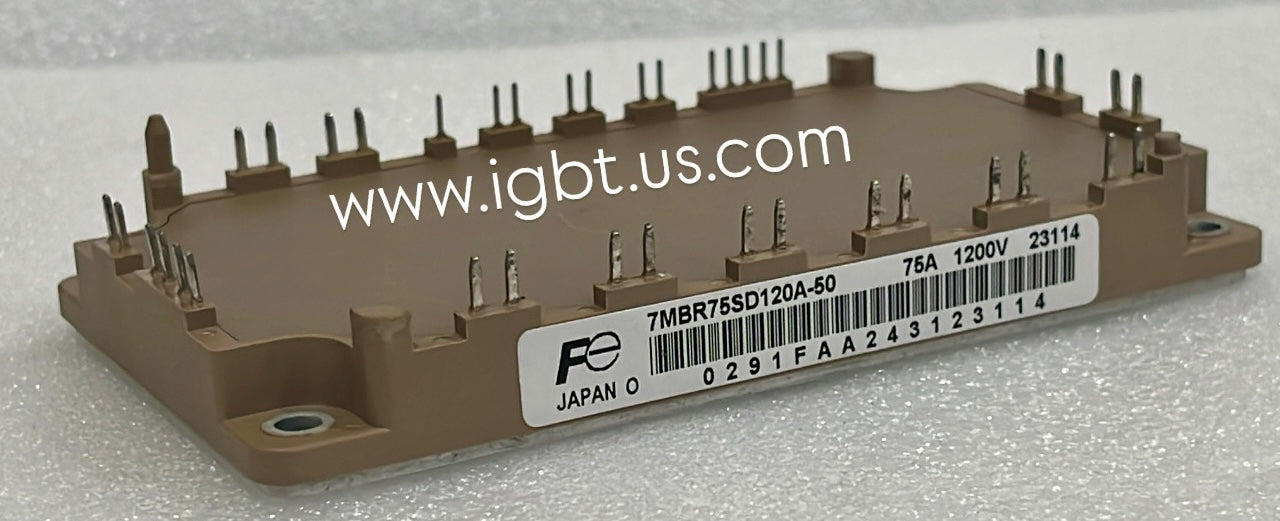

The Fuji 7MBR75SD120A-50 is a 1200V, 75A IGBT power semiconductor module engineered for high-efficiency switching in demanding industrial power conversion systems. Built on Fuji's SD-series platform, this module integrates IGBT devices with fast-recovery freewheeling diodes in a compact, isolated package suited for high-frequency operation. Its robust thermal design and low saturation voltage characteristics make it a preferred choice for engineers specifying reliable, long-life solutions in variable-frequency drives, servo amplifiers, and industrial inverters where consistent switching performance is non-negotiable.

The 7MBR75SD120A-50 sees widespread use across industrial automation, CNC machine tool drives, elevator and hoist control systems, HVAC variable-speed compressor drives, and uninterruptible power supplies (UPS). Its 1200V blocking voltage provides the necessary headroom for 480V/600V AC bus applications after rectification, and the 75A current rating covers a broad range of mid-power motor drive designs. Renewable energy inverters and industrial welding power supplies also leverage this module's combination of switching speed and rugged construction.

Quick Reference: 7MBR75SD120A-50

Key Features of the 7MBR75SD120A-50:

• 1200V collector-emitter voltage (VCES) with 75A rated continuous collector current for mid-range industrial drive applications
• Integrated fast-recovery freewheeling diodes optimized for low reverse recovery losses at high switching frequencies
• Low VCE(sat) characteristics reduce conduction losses and thermal stress at rated current, extending module service life
• Isolated copper base plate construction enables direct mounting to heatsinks, simplifying thermal management in drive enclosures
• SD-series gate drive compatible — works with standard Fuji gate driver recommendations for straightforward retrofit and replacement designs
• Compact industry-standard footprint supports drop-in replacement in existing PCB and busbar drive assemblies without mechanical redesign

The 7MBR75SD120A-50 has been discontinued by Fuji Electric, with new factory production carrying lead times of 99 weeks or longer — effectively making open-market stock the only practical procurement path for maintenance, repair, and OEM buffer inventory needs. Engineers supporting installed equipment or sustaining production lines dependent on this module cannot afford to wait. Sourcing from a stocking distributor with verified new OEM parts is the only way to avoid costly downtime or line stoppages. ATI Accurate Technology maintains inventory of obsolete and long-lead Fuji IGBT modules precisely for these situations.

ATI Accurate Technology is headquartered in Palmetto, Florida, and specializes in hard-to-find, obsolete, and long-lead-time power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. Orders placed before 5PM EST ship same day. Volume pricing is available for MRO stocking orders and OEM builds. Contact our team directly at 239-734-7566 or sales@igbts.us for availability, pricing, and lead time confirmation.
