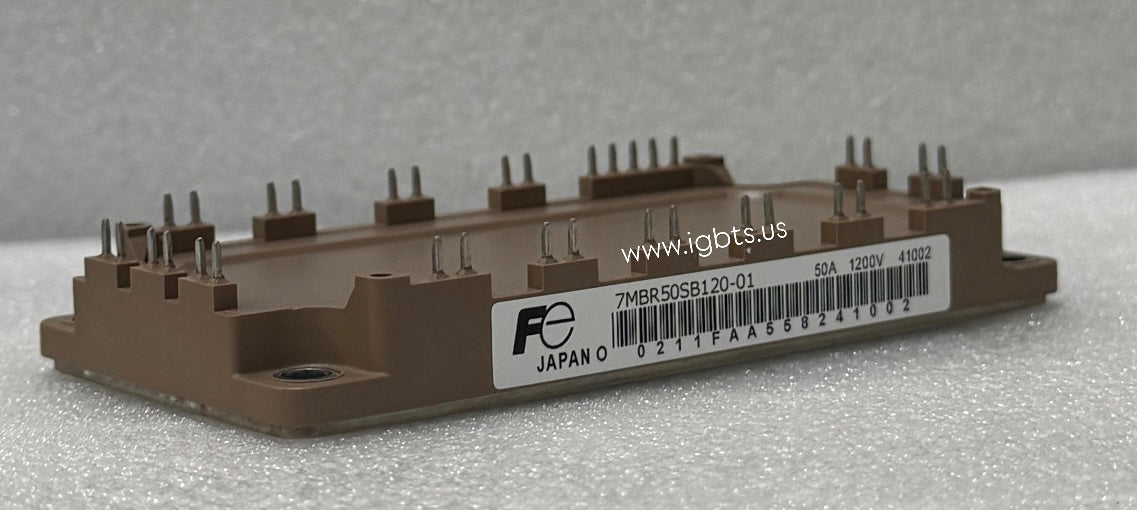

The Fuji Electric 7MBR50SB120-01 is a 1200V, 50A IGBT power module from Fuji's 7MBR SB-series platform, engineered for high-efficiency switching in variable-speed motor drives, industrial inverters, and power conversion systems. Built to Fuji's rigorous OEM standards, this module integrates insulated gate bipolar transistors with fast-recovery freewheeling diodes in a compact, thermally optimized package. Its combination of low saturation voltage, high switching speed, and robust thermal performance makes it a reliable choice for demanding industrial environments where uptime and efficiency are non-negotiable.

The 7MBR50SB120-01 sees widespread use in AC servo drives, CNC machine tool spindle drives, elevator traction inverters, UPS systems, and general-purpose variable frequency drives (VFDs). Its 1200V blocking voltage provides the necessary headroom for 400V–690V AC bus applications, while the 50A current rating suits mid-range motor control systems. Industrial OEMs, system integrators, and field service engineers maintaining legacy equipment rely on this module to keep production lines, material handling systems, and building automation infrastructure running without costly system-level redesigns.

Quick Reference: 7MBR50SB120-01

Key Features of the 7MBR50SB120-01:

• 1200V collector-emitter voltage (VCES) providing robust margin for 480V/690V AC bus architectures
• 50A continuous collector current rating for mid-range motor drive and inverter applications
• Integrated fast-recovery freewheeling diodes optimized to minimize reverse recovery losses at switching frequencies
• Low VCE(sat) characteristics reduce conduction losses and thermal stress at rated load
• Isolated baseplate construction with high dielectric strength for safe system-level integration
• Compact SB-series module footprint enabling direct form-fit-function replacement in existing Fuji-based drive platforms

The 7MBR50SB120-01 is factory-obsolete, with new production lead times stretching to 99 weeks — effectively beyond reach for most maintenance and procurement timelines. For engineers managing aging drive systems or OEMs supporting fielded equipment, waiting nearly two years for factory production is not a viable option. Component substitution is often constrained by PCB layout, gate driver compatibility, and thermal interface design, making a true form-fit-function replacement the only practical path. Sourcing from an experienced distributor with verified OEM stock is the fastest and lowest-risk solution for keeping critical systems operational.

ATI Accurate Technology, based in Palmetto, Florida, specializes in exactly this scenario — stocking obsolete, long-lead-time, and hard-to-find power semiconductors including IGBTs, thyristors, diodes, and rectifier modules. The 7MBR50SB120-01 ships same-day on orders received before 5PM EST. Volume pricing is available for MRO stockers and OEM service teams. Contact ATI at 239-734-7566 or sales@igbts.us to confirm availability and lead time today.
