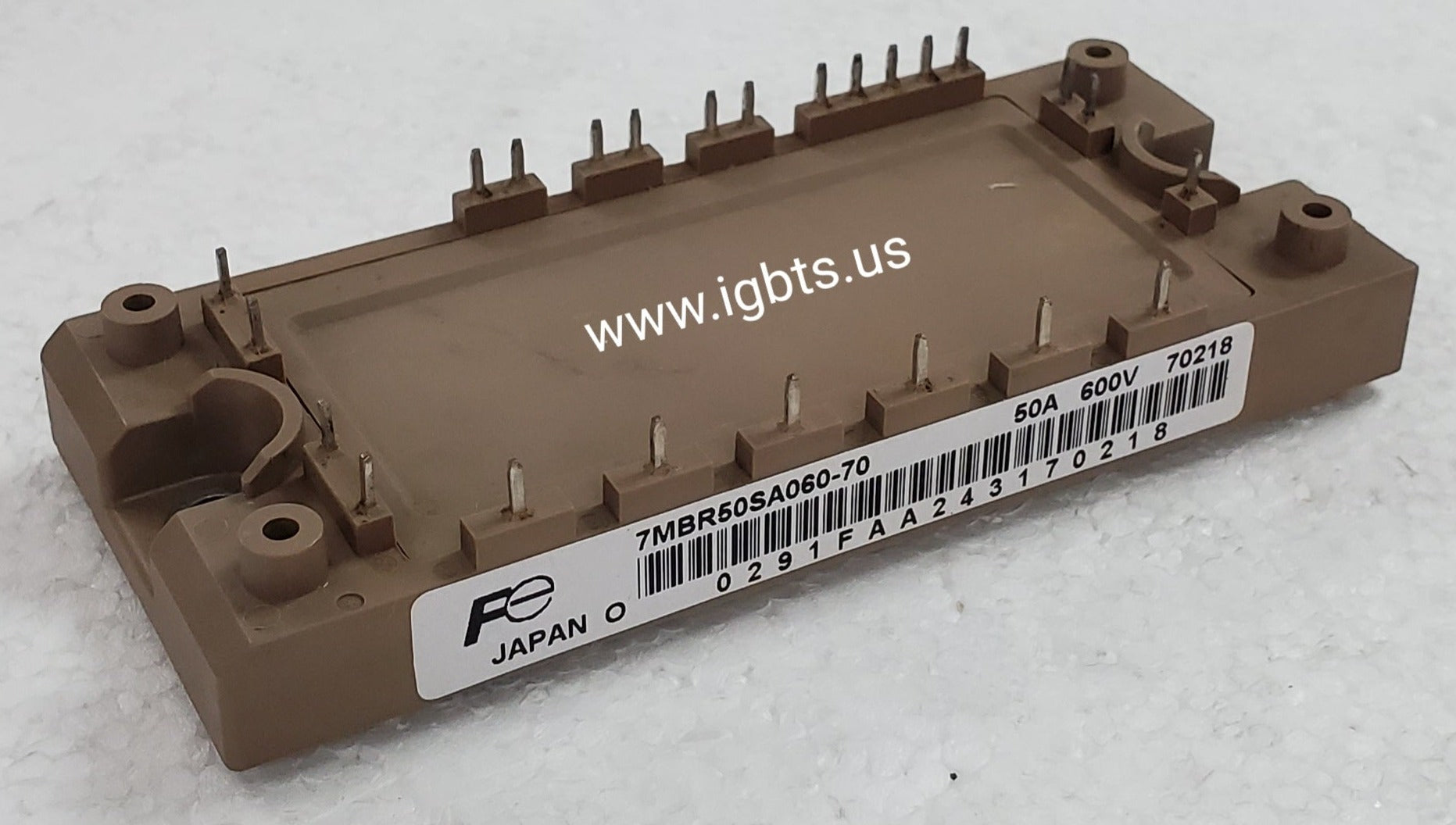

The Fuji Electric 7MBR50SA060-70 is a 600V, 50A IGBT power module from Fuji's SA series, engineered for reliable switching performance in industrial power electronics. Built around Fuji's proven IGBT chip technology, this module integrates high-speed switching transistors with integrated freewheeling diodes in a thermally efficient, isolated base package. It delivers low saturation voltage, fast turn-off characteristics, and robust short-circuit withstand capability — making it a dependable choice for demanding converter and inverter topologies operating in harsh industrial environments.

The 7MBR50SA060-70 is widely deployed in AC motor drives, servo amplifiers, CNC machine tool controllers, industrial UPS systems, and general-purpose inverters operating at 400V AC input. Its compact footprint and standardized mounting interface allow it to serve as a direct replacement or design-in component across a broad range of variable frequency drives and motion control platforms. The module's thermal and electrical characteristics also make it well suited for welding inverters, elevator drives, and renewable energy power conditioning equipment where reliability under continuous load cycling is essential.

Quick Reference: 7MBR50SA060-70

Key Features of the 7MBR50SA060-70:

• 600V collector-emitter voltage (Vces) with 50A continuous collector current rating for mid-power industrial drive applications
• Integrated freewheeling diodes co-packaged with IGBT switches, eliminating external diode selection and simplifying PCB layout
• Low VCE(sat) ensures reduced on-state conduction losses and improved thermal efficiency during continuous switching operation
• Fast, controlled turn-off switching characteristics minimize switching losses and EMI generation in high-frequency PWM topologies
• Isolated copper baseplate construction provides electrical isolation between the circuit and heatsink, simplifying thermal management and mounting
• Standardized SA-series module footprint enables drop-in compatibility with existing Fuji-based drive platforms and simplifies field replacement

With a factory lead time of 99 weeks on new production, the 7MBR50SA060-70 presents a significant sourcing challenge for maintenance teams managing unplanned downtime or procurement teams building safety stock. Production lines cannot wait nearly two years for a critical switching module. Obsolescence risk compounds the issue as this series ages out of active production schedules. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IGBT modules precisely for these scenarios, providing immediate access to verified new OEM stock when the supply chain cannot deliver.

ATI Accurate Technology is a power semiconductor distributor based in Palmetto, Florida, stocking IGBTs, thyristors, diodes, and rectifier modules including obsolete and long-lead-time parts. Orders placed before 5PM EST ship same day. Contact our team for availability, datasheets, and volume pricing on the 7MBR50SA060-70 and related Fuji modules. Call 239-734-7566 or email sales@igbts.us — we're ready to support your production and maintenance requirements.
