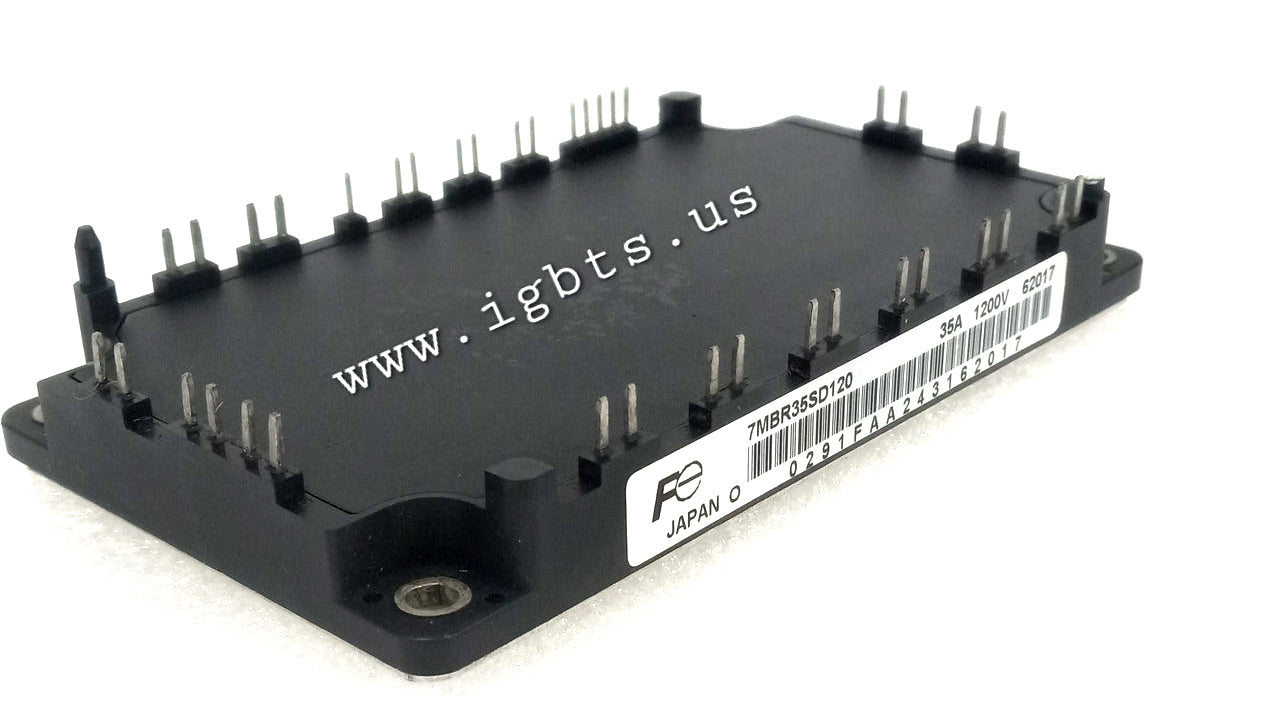

The Fuji 7MBR35SD120 is a 1200V, 35A IGBT power module from Fuji Electric's SD series, engineered for high-efficiency switching in industrial inverter and converter systems. This module integrates IGBT switches with fast-recovery freewheeling diodes, reducing external component count while maintaining tight switching characteristics. Its robust construction supports operation in thermally demanding environments, making it a dependable choice for engineers designing or maintaining variable frequency drives, uninterruptible power supplies, and industrial servo systems where switching precision and thermal stability are non-negotiable requirements.

The 7MBR35SD120 sees widespread deployment across industrial automation platforms, including AC motor drives, elevator controls, welding inverters, and regenerative braking systems. Its 1200V blocking voltage provides adequate margin for 400V–480V three-phase bus applications, while the 35A current rating suits mid-range drive topologies. OEMs and maintenance teams working on CNC machinery, HVAC variable speed drives, and industrial robotics platforms frequently specify this Fuji module as both an original build component and a direct drop-in replacement during field repairs and scheduled maintenance overhauls.

Quick Reference: 7MBR35SD120

Key Features of the 7MBR35SD120:

• 1200V collector-emitter voltage (VCES) with 35A continuous collector current rating for mid-power industrial inverter applications
• Integrated fast-recovery freewheeling diodes per IGBT switch, minimizing reverse recovery losses and external diode requirements
• Low saturation voltage (VCE(sat)) characteristic of Fuji SD-series devices, reducing conduction losses across the full load range
• Isolated baseplate construction for direct heatsink mounting with standard thermal interface materials, supporting high power density designs
• Optimized gate drive compatibility with industry-standard IGBT driver ICs, simplifying both new designs and legacy system replacements
• Designed for PWM switching frequencies typical of industrial drives, balancing switching loss and EMI performance in closed-loop motor control topologies

With a factory lead time of 99 weeks on new production orders, the 7MBR35SD120 presents a serious procurement challenge for maintenance teams and production lines that cannot afford extended downtime. Fuji SD-series modules are increasingly difficult to source through standard distribution channels as production schedules shift. ATI Accurate Technology maintains inventory of hard-to-find and long-lead-time IGBT modules precisely for these situations, providing engineers and buyers with a reliable, verified source when OEM and broadline distributors come up empty or quote unacceptable delivery windows.

ATI Accurate Technology is located in Palmetto, Florida and specializes in IGBTs, thyristors, diodes, and rectifier modules — including obsolete and allocated parts. Orders placed before 5PM EST ship same day. For volume pricing, technical questions, or urgent requirements on the 7MBR35SD120, contact our team directly at 239-734-7566 or sales@igbts.us. We're ready to support your procurement and maintenance needs.
