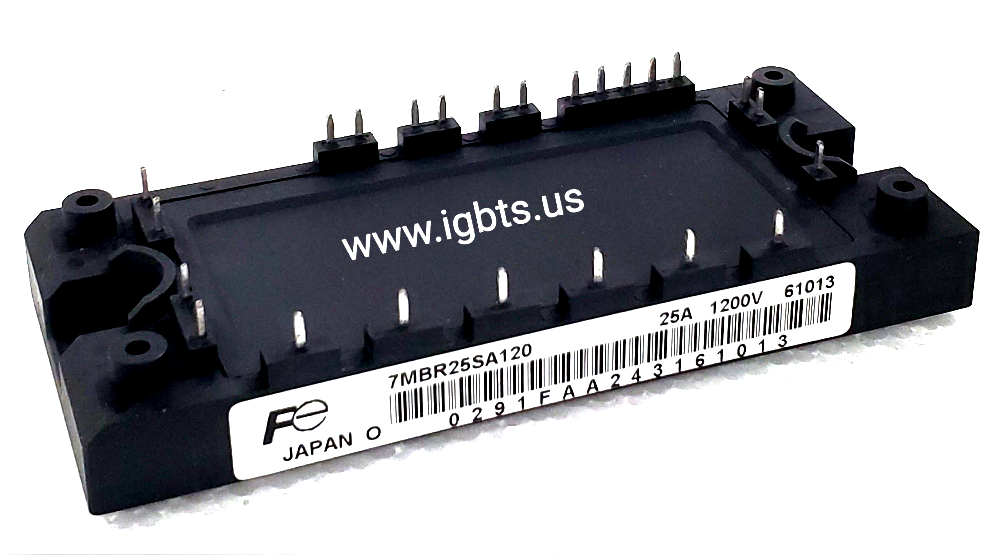

The 7MBR25SA120 is a Fuji Electric 7-pack IGBT module featuring a 25A continuous collector current rating and 1200V blocking voltage. Designed for demanding industrial power conversion applications, this module integrates seven insulated gate bipolar transistors in a single compact package, enabling efficient and reliable three-phase inverter designs. The SA-series platform from Fuji is well regarded for its low saturation voltage, fast switching characteristics, and built-in freewheeling diodes that simplify circuit design and reduce component count.

This IGBT module is widely used in variable frequency drives (VFDs), AC servo motor controllers, uninterruptible power supplies (UPS), solar inverters, and industrial automation equipment. Its 1200V voltage class makes it suitable for applications operating from standard three-phase AC mains where high reliability and thermal performance are critical requirements.

Quick Reference: 7MBR25SA120

Key Features:

• 25A continuous collector current rating for medium-power inverter stages
• 1200V VCES blocking voltage suitable for standard industrial AC line applications
• 7-pack configuration integrates all switches for a complete three-phase inverter bridge plus brake chopper
• Integrated freewheeling diodes reduce external component requirements and board complexity
• Low VCE(sat) for reduced conduction losses and improved system efficiency
• Compact module footprint simplifies PCB layout and thermal management in space-constrained designs

Finding reliable stock of Fuji IGBT modules like the 7MBR25SA120 can be a challenge, especially for production runs, equipment repairs, or urgent maintenance situations. ATI Accurate Technology specializes in exactly these scenarios, maintaining inventory of current, long-lead-time, and obsolete power semiconductors so engineers and procurement teams can source what they need without costly delays. Whether you need a single unit for a field repair or a larger quantity for ongoing production, ATI is equipped to fulfill your order promptly.

ATI Accurate Technology is located in Palmetto, Florida and serves customers nationwide and internationally. Contact our team today at 239-734-7566 or email sales@igbts.us to confirm availability, request a quote, or place your order. Orders received before 5PM EST ship the same day, minimizing your downtime and keeping your projects on schedule.
