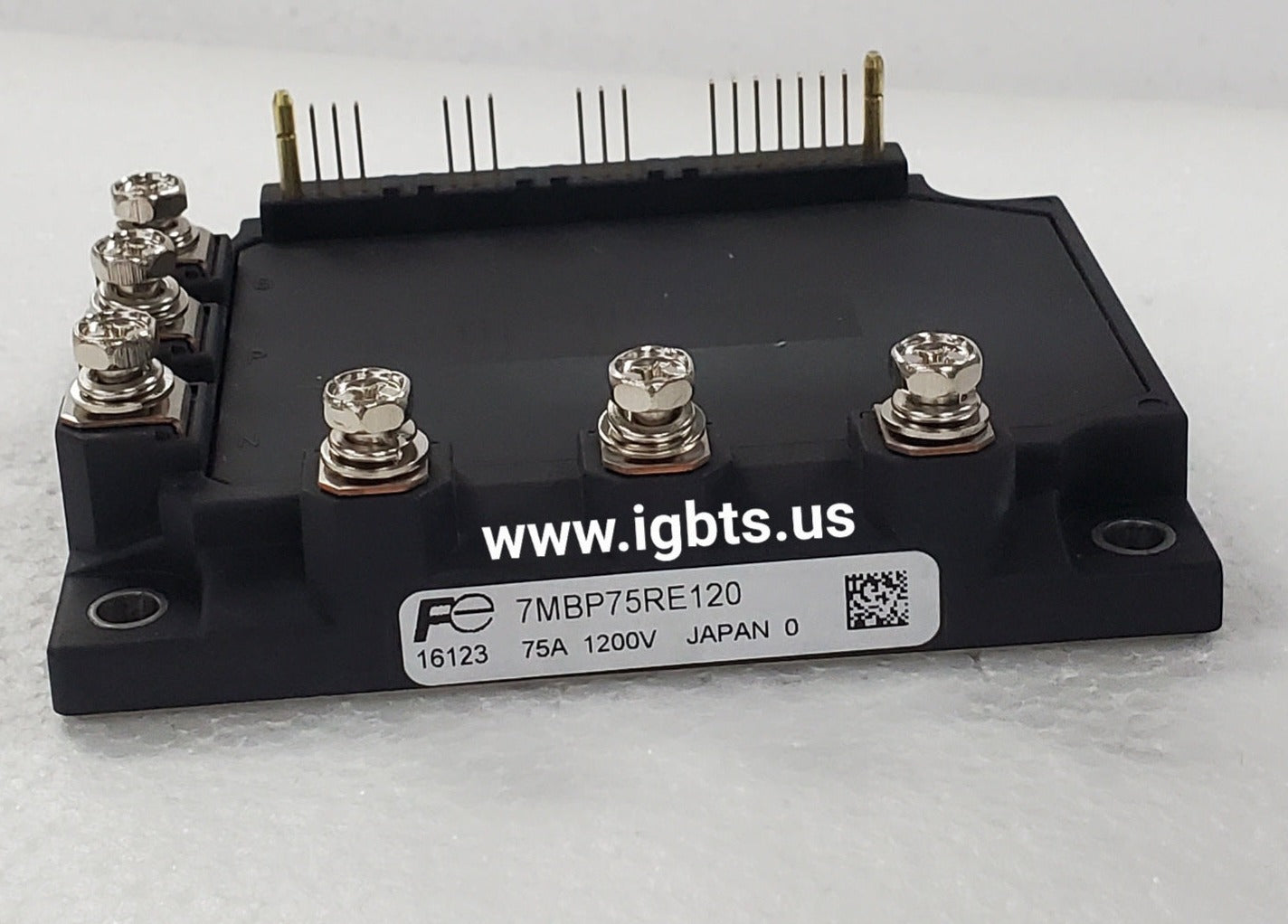

The Fuji 7MBP75RE120 is a 7-pack (6-in-1 + brake) IGBT power module rated for 75A continuous collector current and 1200V blocking voltage. Part of Fuji's RE-series platform, this module integrates fast-recovery freewheeling diodes co-packaged with each IGBT, reducing external component count and parasitic inductance in the commutation loop. Its optimized gate characteristics deliver low switching losses with robust short-circuit withstand capability, making it a dependable choice for demanding industrial power conversion designs where thermal performance and longevity are non-negotiable.

The 7MBP75RE120 is widely deployed in variable frequency drives (VFDs), servo amplifiers, uninterruptible power supplies (UPS), and general-purpose AC motor controllers operating from 400V–690V supply rails. Its 7-pack topology simplifies PCB layout and heatsink design for three-phase inverter stages with integrated dynamic braking, reducing engineering overhead in both OEM drive platforms and custom industrial converter designs. The module is also found in spindle drives, crane and hoist controls, and regenerative braking systems across manufacturing, material handling, and process automation environments.

Quick Reference: 7MBP75RE120

Key Features of the 7MBP75RE120:

• 1200V VCES / 75A Ic ratings suitable for 400V–690V three-phase industrial power systems
• 7-pack topology integrates six inverter IGBTs plus one brake chopper IGBT with co-packaged freewheeling diodes
• RE-series low-loss IGBT chip technology reduces switching and conduction losses for improved thermal efficiency
• Integrated NTC thermistor for real-time case temperature monitoring and drive-level thermal protection
• Isolated copper baseplate construction with industry-standard mounting footprint for simplified heatsink integration
• Short-circuit rated gate structure with controlled turn-off for fault-tolerant drive system designs

With a current factory lead time of 99 weeks, the 7MBP75RE120 is effectively unavailable through standard distribution channels for nearly two years. For maintenance teams dealing with unexpected drive failures or procurement teams supporting production continuity, waiting on new production is rarely an option. ATI specializes in exactly this scenario — stocking hard-to-find, long-lead-time, and obsolete Fuji IGBT modules so engineers and buyers can resolve critical shortages without extended downtime. Our inventory is verified, condition-new OEM, and available for immediate release.

ATI Accurate Technology is located in Palmetto, Florida and ships same-day on orders placed before 5PM EST. Whether you need a single replacement module or volume quantities for a scheduled maintenance program, our team is ready to assist. Contact us at 239-734-7566 or sales@igbts.us for real-time stock confirmation, datasheets, and competitive volume pricing on the 7MBP75RE120 and related Fuji power semiconductor modules.
