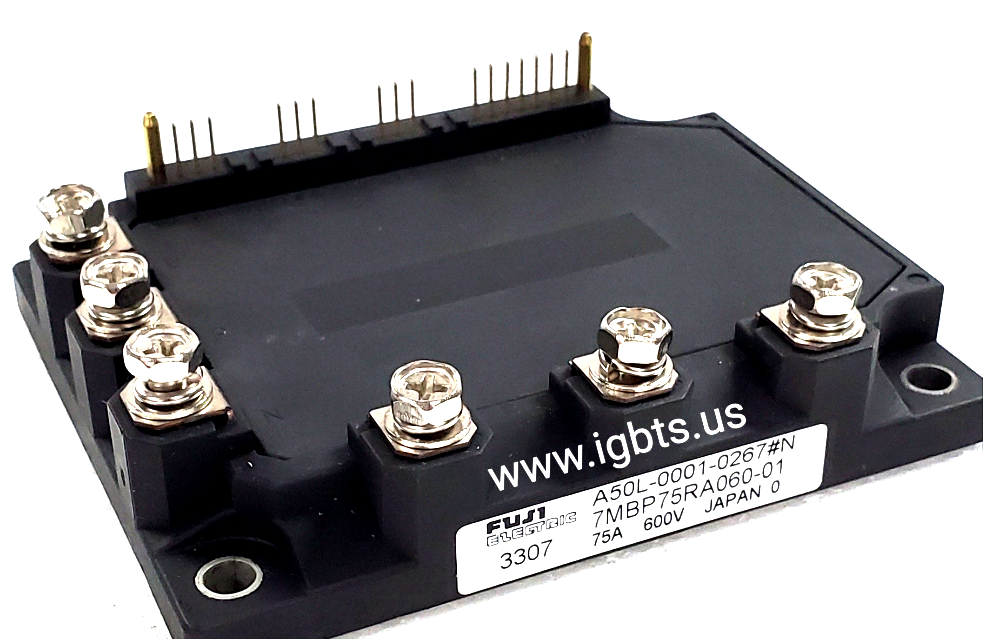

The 7MBP75RA060-01 by Fuji Electric is a high-performance Intelligent Power Module (IPM) featuring a 7-in-1 IGBT configuration rated for 75 amperes and 600 volts. This module integrates gate drive circuits, overcurrent protection, short-circuit protection, undervoltage lockout, and temperature monitoring directly into a single compact package, dramatically reducing design complexity and board space requirements. The RA-series IPM platform from Fuji is engineered for efficiency, reliability, and ease of integration in modern power conversion systems.

The 7MBP75RA060-01 is widely used in variable frequency drives (VFDs), AC servo motor controllers, industrial inverters, HVAC systems, and general-purpose motion control equipment. Its integrated protection functions make it particularly well-suited for applications where system reliability and simplified fault management are critical priorities. The module's rugged construction and Fuji's proven IGBT technology ensure long service life in continuous-duty industrial environments.

Quick Reference: 7MBP75RA060-01

Key Features:

• 75A / 600V rating suitable for medium-power industrial inverter applications
• Integrated gate drive circuits eliminate the need for external drive components
• Built-in overcurrent, short-circuit, and undervoltage lockout protection for enhanced system safety
• Integrated temperature monitoring output for thermal management and system protection
• 7-in-1 package includes six inverter IGBTs plus one braking IGBT for complete drive stage implementation
• Compact, industry-standard footprint simplifies PCB layout and mechanical integration

Sourcing Fuji IPM modules like the 7MBP75RA060-01 can be challenging due to long lead times from authorized distribution channels and limited availability on the open market. ATI Accurate Technology specializes in exactly these situations, maintaining inventory of current, long-lead-time, and hard-to-find power semiconductor modules to keep your production lines and repair operations running without costly delays. All parts are sourced with traceability and quality in mind.

ATI Accurate Technology is your trusted source for the 7MBP75RA060-01 and hundreds of other Fuji IGBT and IPM modules. Located in Palmetto, Florida, we offer same-day shipping on orders placed before 5PM EST. Contact our team today at 239-734-7566 or email us at sales@igbts.us for pricing, availability, and fast fulfillment.
